Unitec Wash Select II Retrofit Installation Guide

WASH SELECT II TO WASHPAY
Document Number: WS21046 8
5 System Configuration
5.1 Wash Select II
The WSII software is designed for easy configuration. Perform the following procedure.
1. Power up the WSII.

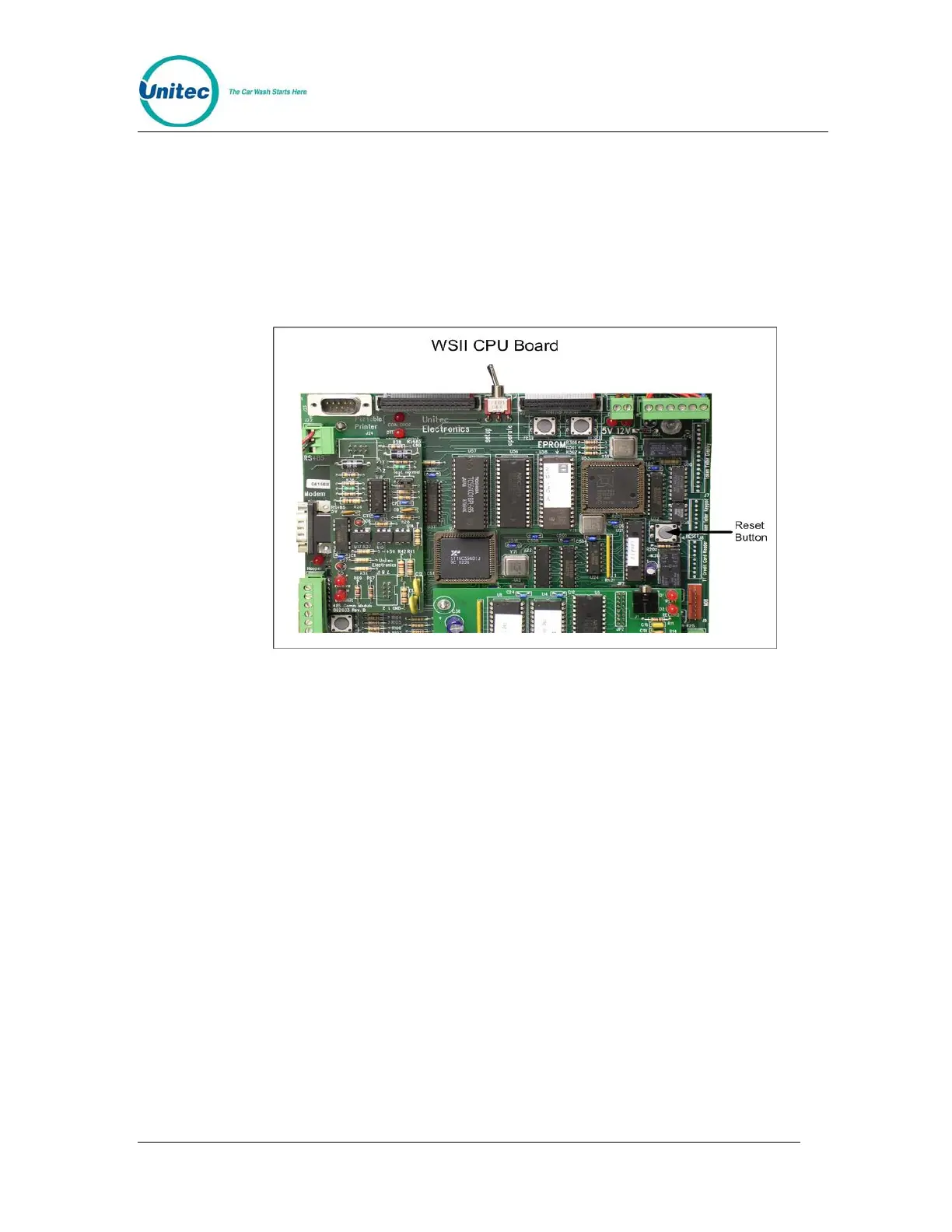

Figure 6. WSII CPU Reset Button
2.
On the WSII, press the reset button on the CPU board. This will clear the
memory.
3. Press (1) for Yes then press the (*) key to enter.
4. Set the Credit Mode to 6. This will automatically set the network parameters.
5. Scroll to Network Parameters. Press “*” to select.
6. You should see “Rev#: WP2.XX (the “x” is the most current version of
software). Press any key.” Press any key to continue. If this message is not
displayed, make sure the LED light is lit on the expansion board by the Ethernet
cable and make sure the ribbon cable and Ethernet cable connections are
secure, then reboot the Wash Select II unit.
Document Name: WSII to WashPayIntegration Field Retrofit Installation Guide

Unitec Wash Select II Specifications

General

Brand	Unitec
Model	Wash Select II
Category	Touch terminals
Language	English
