5
MS146 Manual

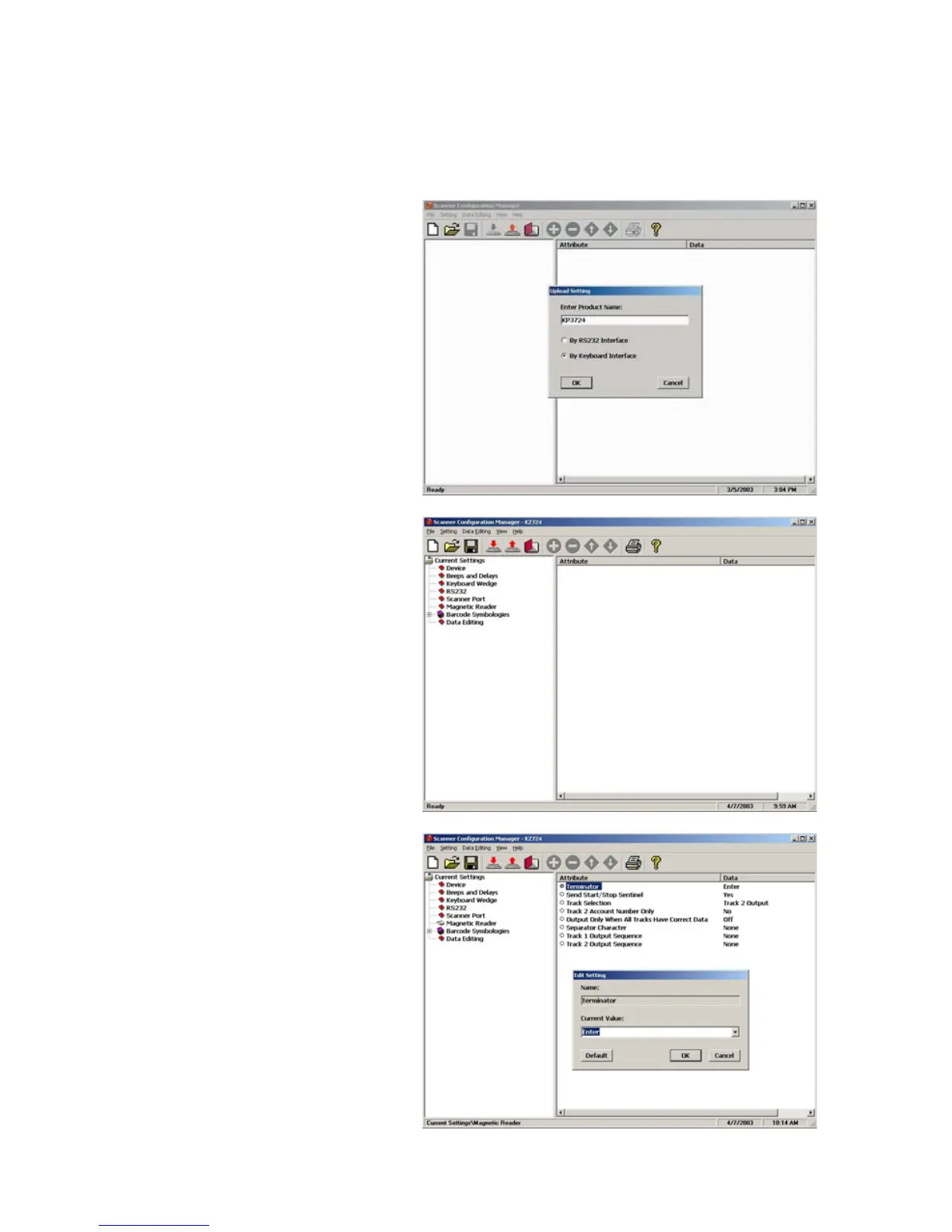

The screen to the left
appears. Click on any of
the selections under
“Current Settings” to view
its “Attributes”.
Click the upload icon (see page 3) and the following pop-up screen
will appear: (alternatively, you can click on the “New Document”
icon, page 3, in which case the second screen will appear)
First Look
Enter the scanner product
number (MS146, for
example).
Make sure the “By Key-
board Interface” radio
button is selected, and
click “OK”.
The LED on the top of the
scanner will flash during
the upload process.
After selecting your config-
uration settings, click on
the Download icon (see
page 3). The LED on the
top of the scanner will
flash during the download
process. Afterwards, you
will be prompted to do an optional “Quick Test”.
Double-click on any of
the “Attributes” to edit
that attribute. This is
done via a drop-down
menu.
