FORMAT:
{Preamble} {Code ID}{Bar Code }{Postamble}
NOTES:
1. A PREAMBLE is a string of up to 16 characters added to the beginning of a scanned barcode.
2. A POSTAMBLE is a string of up to 16 characters added to the end of a scanned bar code.
3. Default value for either: None.
Quick Setup
Appendix A has a quick setup chart, which gives you one label or one function for quick
customization of the scanner. To set up the scanner, locate the label with the function you want
and scan that label.
Batch Setup
If you need to configure more than one scanner, you can duplicate the settings of one scanner
(master) and quickly deploy these settings to the others. You can do this by producing a set of
custom setup labels derived from the master scanner. Then simply scan these labels to
configure the other scanners.
Dump Settings

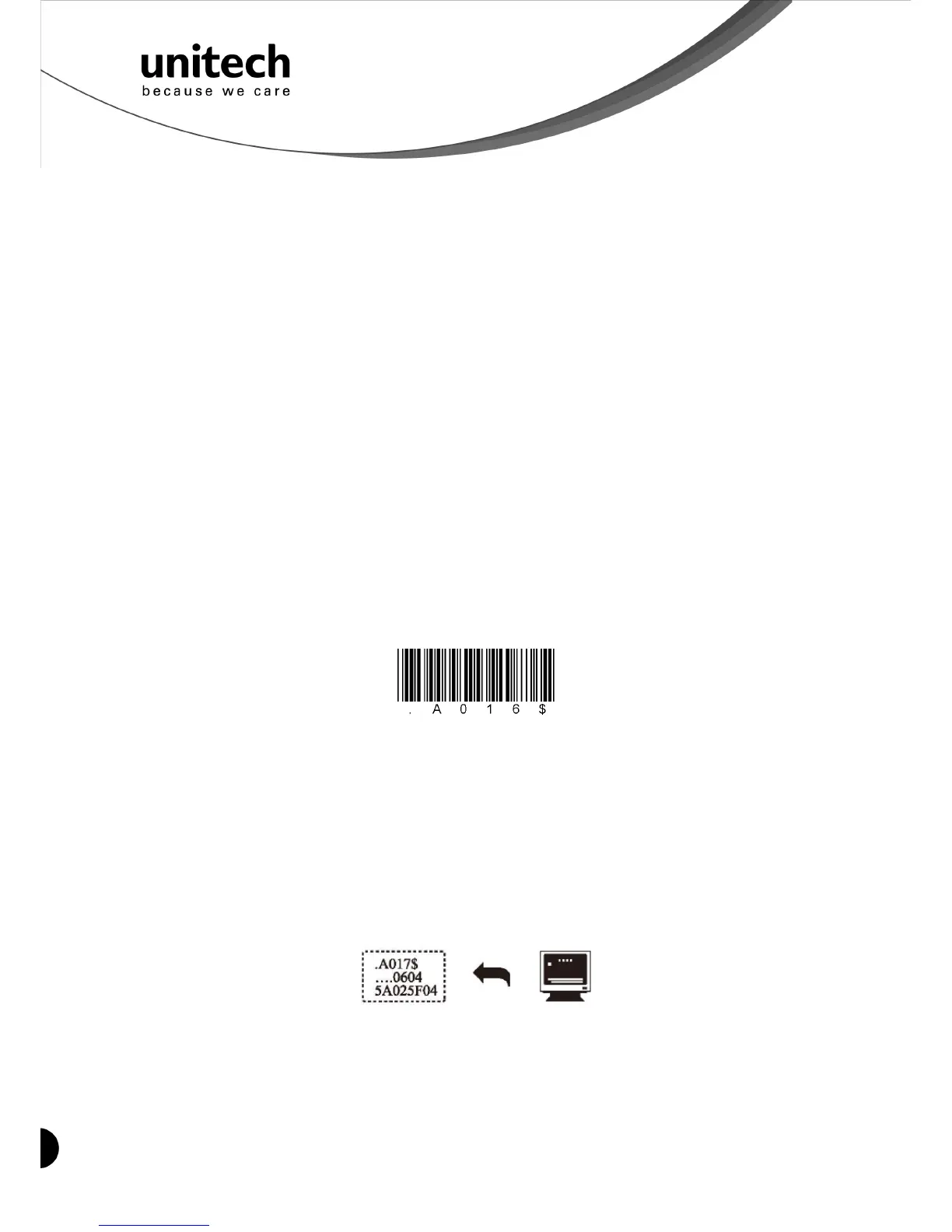

The following label is called the “Dump Settings” label. Before you scan the label, please open
a text editor application (such as Notepad or Microsoft Word) on the host PC. When you scan
the [Dump Settings] barcode, the settings of the scanner will appear within the text editor
application as one or several ASCII string(s). Use any barcode printing software, select the
Code 39 symbology, and use the string(s) to generate bar code labels. Use the batch setup
labels to duplicate these settings to the other scanners.
EXAMPLE:
1. PROJECT ASSIGNMENTS:
1.1 Beep tune: BEEP LOW -- HIGH
1.2 Caps Lock Mode: CAPSLOCK ON (FIXED).
1.3 Reading Mode: CONTINUOUS AUTO OFF.
2. SETTING PROCEDURE:
1.1 Scan BEEP LOW – HIGH. (GROUP 3).
1.2 Scan CAPSLOCK ON (FIXED). (GROUP 3)
1.3 Scan CONTINUOUS AUTO OFF. (GROUP 2)
3. All parameters will be converted to alphanumeric characters and shown on the monitor.
To Next Page
