GETTING STARTED
CHARGING THE BATTERY

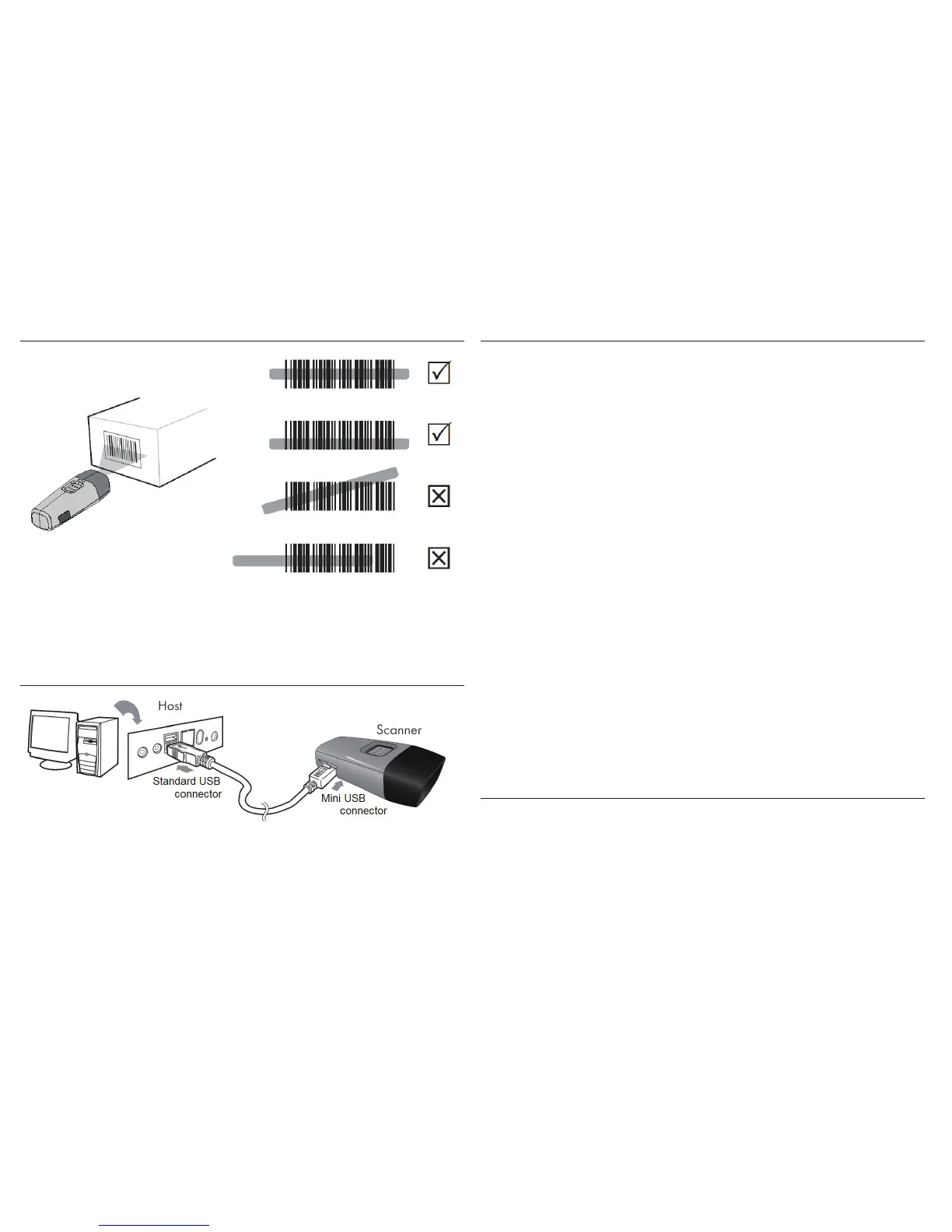

To scan a barcode, make sure the aiming beam crosses
every bar and space of the barcode.
1. Flip open the mini USB port on the scanner.
2. Insert the mini USB connector into the port on the
scanner and USB A connector into a USB port on
the host PC.
- 5 -
BEEPER INDICATION
LED INDICATION
Off
Flashing Green
Green for 2 sec
Flashing Red
Solid Red
Standby or Power off
Disconnected or Discoverable
Good Read
Low power
Charging
- 6 -
Single long beep Power up
Single beep Good read
Single short beep The scanner reads a Code39 of
ASCII in configuration procedure
Two beeps i. Wireless connection
ii. The scanner successfully reads
a configuration barcode
Two short beeps Good read (Auto mode)
Four beeps (Hi-Lo-Hi-Lo) Out of range/Poor connection
Five beeps Low power
Three beeps Wireless disconnection
Three short beeps i. The scanner reads a barcodes
while disconnected.
ii. The scanner reads an unexpected
barcode during configuration
procedure. (scan [ABORT] to abort
and start over)
Several short beeps The scanner switches from one
communication mode to another
