Unitech MS916 User Manual

- 28 -

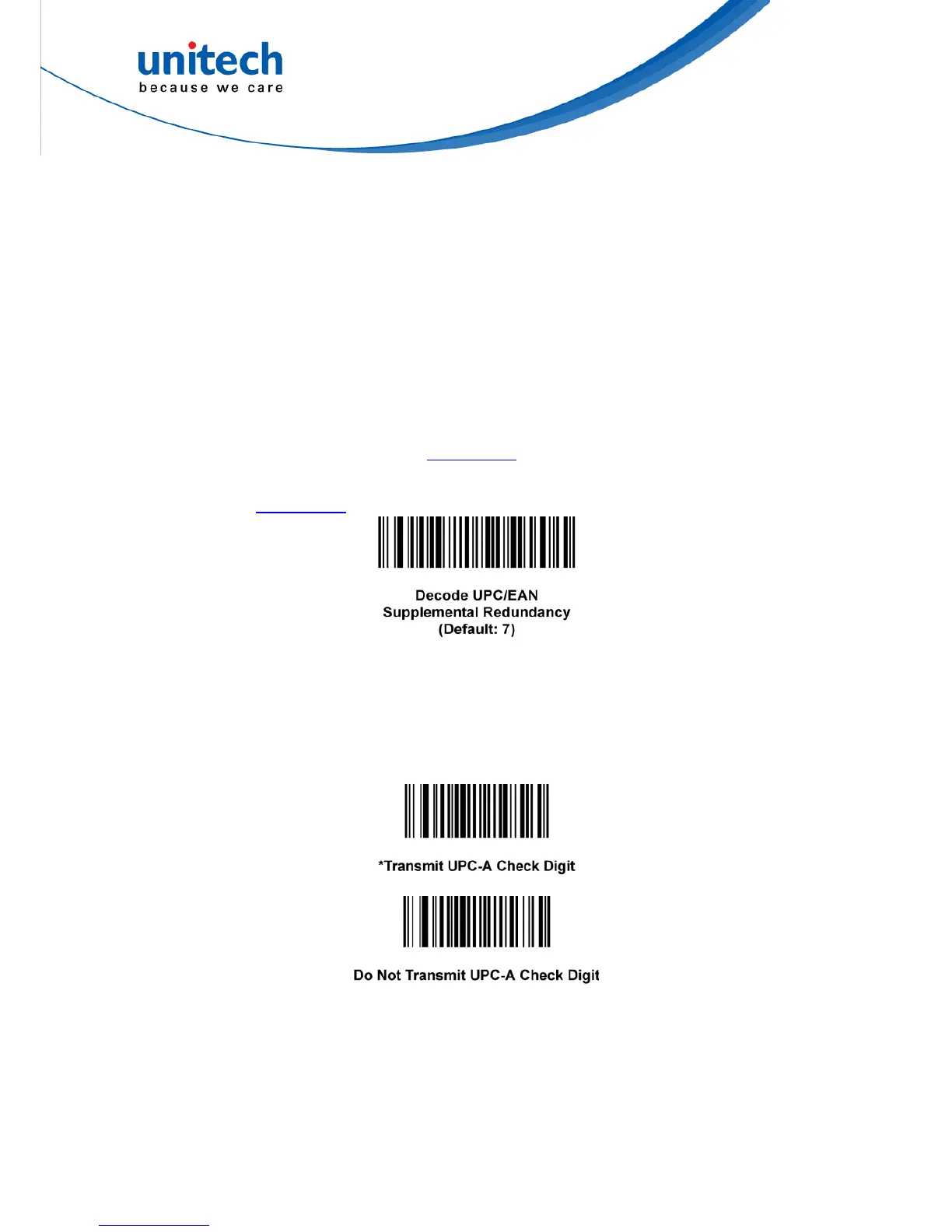

3.1.10 Decode UPC/EAN Supplemental
Redundancy
With Autodiscriminate UPC/EAN Supplementals selected, this option adjusts
the number of times a symbol without supplementals are decoded before
transmission. The range is from 2 to 30 times. Five or above is recommended
when decoding a mix of UPC/EAN symbols with and without supplementals,
and the autodiscriminate option is selected.
Scan the bar code below to select a decode redundancy value. Next scan two
numeric bar codes beginning on Appendix B. Single digit numbers must have
a leading zero. To change the selection or cancel an incorrect entry, scan
Cancel on Appendix B.
3.1.11 Transmit UPC-A Check Digit
Scan the appropriate bar code below to transmit the symbol with or without the
UPC-A check digit.

Unitech MS916 Specifications

General

Type	Handheld bar code reader
Wavelength	650 nm
Sensor type	Laser
Scanner type	1D
Read rate (max)	104 reads/s
Linear (1D) barcodes supported	Codabar, Code 128A, Code 32, Code 39, Code 93, EAN-13, EAN-8, MSI
2D (matrix & stacked) barcodes supported	Not supported
Bluetooth version	2.1+EDR
Standard interfaces	Bluetooth, USB
Connectivity technology	Wired & Wireless
Certification	CE, FCC, BSMI, VCCI
Keys quantity	3 keys
Product color	White
Internal memory	16 MB
Built-in display	Yes
Housing material	-
Display resolution	128 x 64 pixels
Display technology	OLED
International Protection (IP) code	IP42
Battery capacity	680 mAh
Power source type	Battery
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	95.9 mm
Width	36.9 mm
Height	21.1 mm
Weight	63 g
