Unitech MS916 User Manual

- 41 -

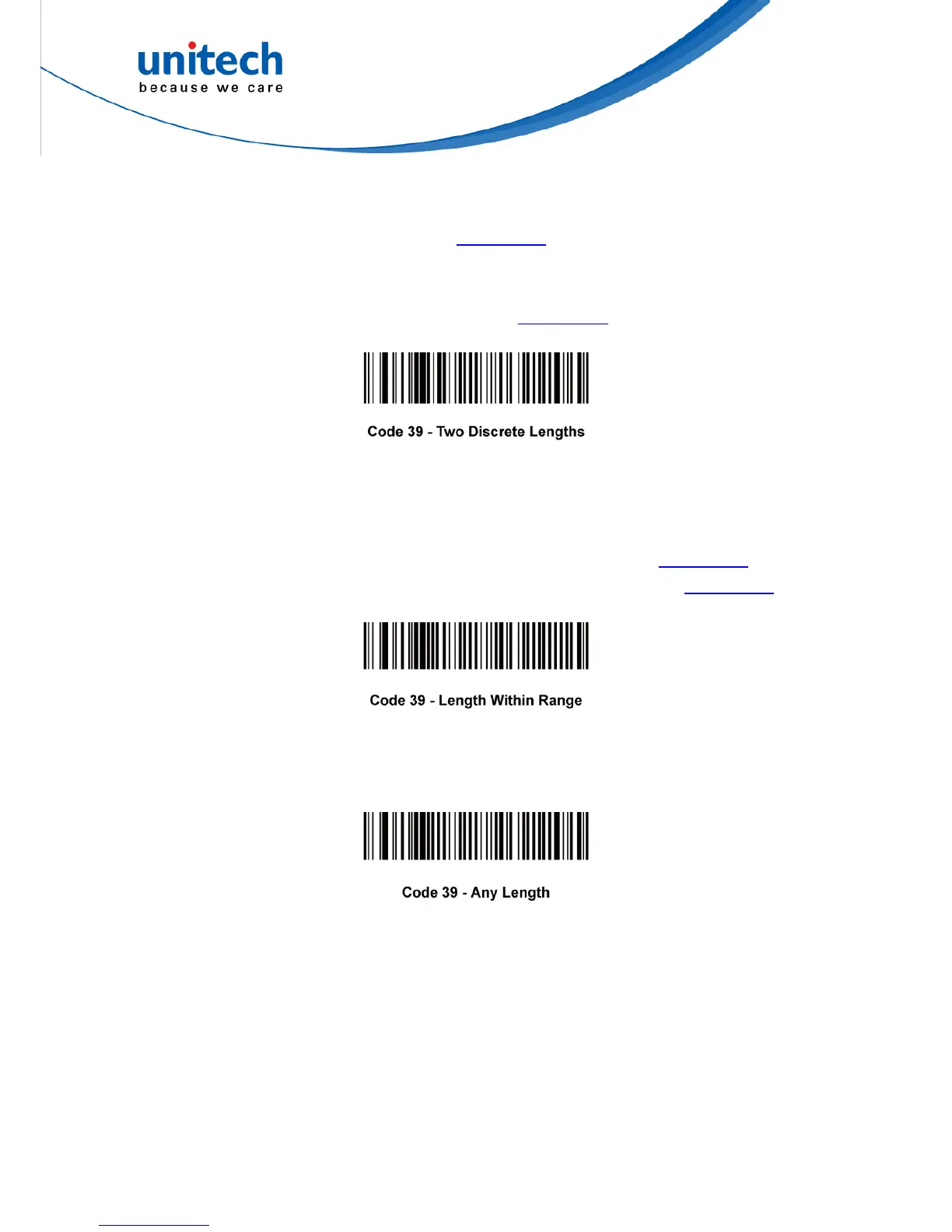

Two Discrete Lengths - This option limits decodes to only those Code 39
symbols containing either of two selected lengths. Lengths are selected from
the numeric bar codes beginning on Appendix B. For example, to decode only
those Code 39 symbols containing either 2 or 14 characters, select Code 39 -
Two Discrete Lengths, then scan 0, 2, 1, and then 4. To change the selection
or cancel an incorrect entry, scan Cancel on Appendix B.
Length Within Range - This option limits decodes to only those Code 39
symbols within a specified range. For example, to decode Code 39 symbols
containing between 4 and 12 characters, first scan Code 39 - Length Within
Range. Then scan 0, 4, 1, and 2. Numeric bar codes begin on Appendix B. To
change the selection or cancel an incorrect entry, scan Cancel on Appendix B.
Any Length - Scan this option to decode Code 39 symbols containing any
number of characters.

Unitech MS916 Specifications

General

Type	Handheld bar code reader
Wavelength	650 nm
Sensor type	Laser
Scanner type	1D
Read rate (max)	104 reads/s
Linear (1D) barcodes supported	Codabar, Code 128A, Code 32, Code 39, Code 93, EAN-13, EAN-8, MSI
2D (matrix & stacked) barcodes supported	Not supported
Bluetooth version	2.1+EDR
Standard interfaces	Bluetooth, USB
Connectivity technology	Wired & Wireless
Certification	CE, FCC, BSMI, VCCI
Keys quantity	3 keys
Product color	White
Internal memory	16 MB
Built-in display	Yes
Housing material	-
Display resolution	128 x 64 pixels
Display technology	OLED
International Protection (IP) code	IP42
Battery capacity	680 mAh
Power source type	Battery
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	95.9 mm
Width	36.9 mm
Height	21.1 mm
Weight	63 g
