Unitech MS916 User Manual

- 47 -

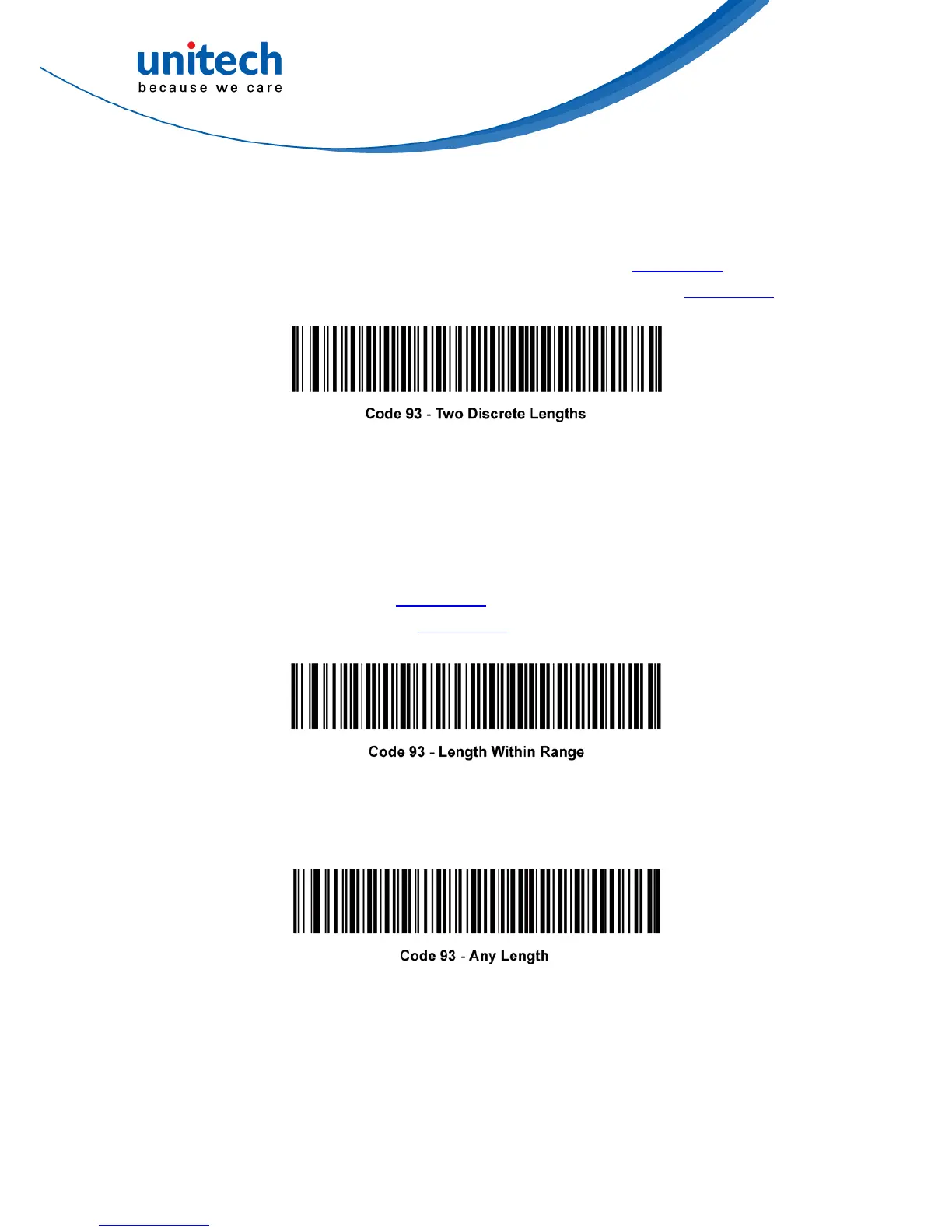

Two Discrete Lengths - Select this option to decode only those codes
containing two selected lengths. For example, select Code 93 Two Discrete
Lengths, then scan 0, 2, 1, 4, to limit the decoding to only Code 93 symbols
containing 2 or 14 characters. Numeric bar codes begin on Appendix B. To
change the selection or cancel an incorrect entry, scan Cancel on Appendix B.
Length Within Range - This option sets the unit to decode a code type within
a specified range. For example, to decode Code 93 symbols containing
between 4 and 12 characters, first scan Code 93 Length Within Range, then
scan 0, 4, 1 and 2 (single digit numbers must always be preceded by a leading
zero).
Numeric bar codes begin on Appendix B. To change the selection or cancel an
incorrect entry, scan Cancel on Appendix B.
Any Length - Scan this option to decode Code 93 symbols containing any
number of characters.

Unitech MS916 Specifications

General

Type	Handheld bar code reader
Wavelength	650 nm
Sensor type	Laser
Scanner type	1D
Read rate (max)	104 reads/s
Linear (1D) barcodes supported	Codabar, Code 128A, Code 32, Code 39, Code 93, EAN-13, EAN-8, MSI
2D (matrix & stacked) barcodes supported	Not supported
Bluetooth version	2.1+EDR
Standard interfaces	Bluetooth, USB
Connectivity technology	Wired & Wireless
Certification	CE, FCC, BSMI, VCCI
Keys quantity	3 keys
Product color	White
Internal memory	16 MB
Built-in display	Yes
Housing material	-
Display resolution	128 x 64 pixels
Display technology	OLED
International Protection (IP) code	IP42
Battery capacity	680 mAh
Power source type	Battery
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	95.9 mm
Width	36.9 mm
Height	21.1 mm
Weight	63 g
