Unitech MS916 User Manual

- 61 -

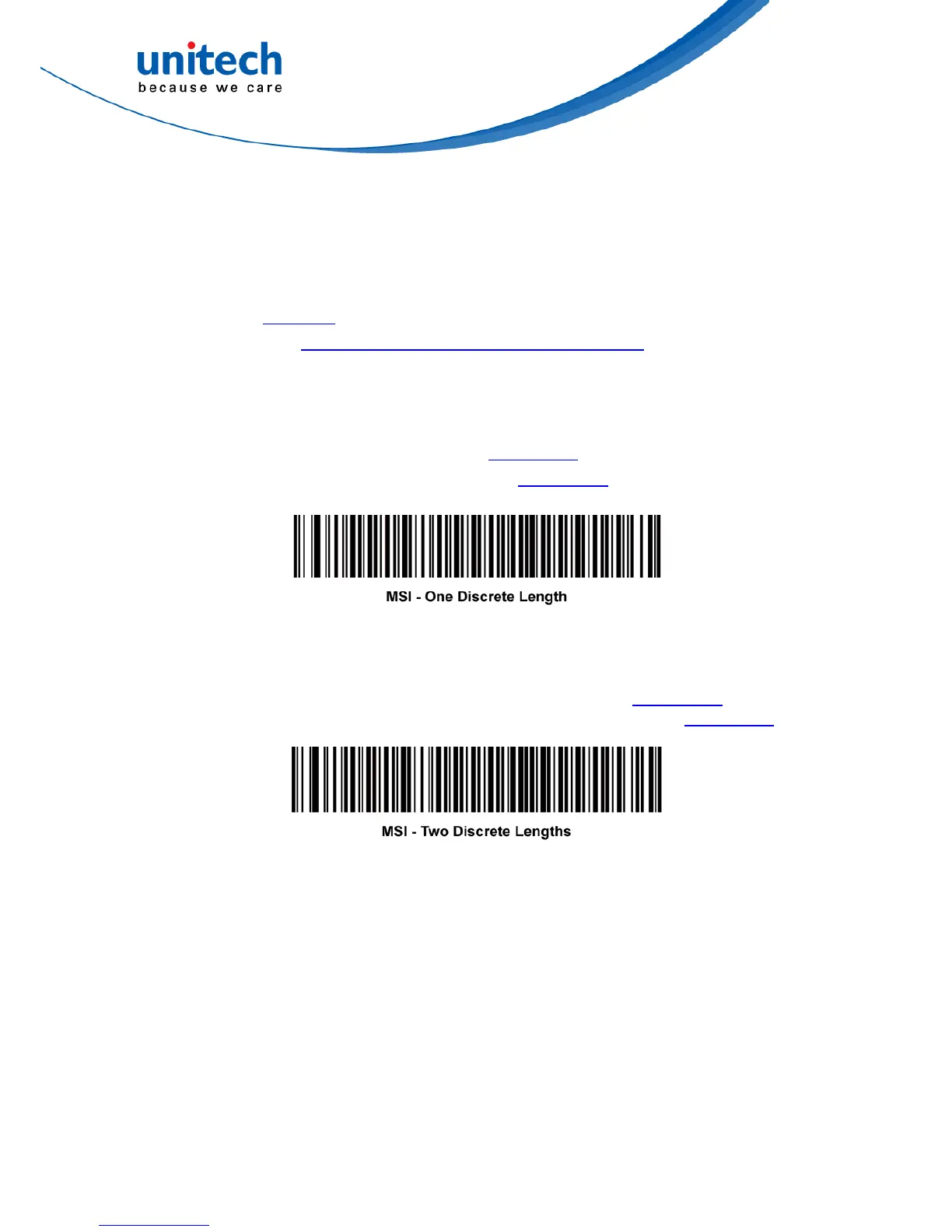

3.10.2 Set Lengths for MSI
The length of a code refers to the number of characters (i.e., human readable
characters) the code contains, and includes check digits. Lengths for MSI can
be set for any length, one or two discrete lengths, or lengths within a specific
range. See Table 3-2 for ASCII equivalents. To set lengths via serial
commands, see Setting Code Lengths Via Serial Commands.
One Discrete Length - Select this option to decode only those codes
containing a selected length. For example, select MSI Plessey One Discrete
Length, then scan 1, 4, to decode only MSI Plessey symbols containing 14
characters. Numeric bar codes begin on Appendix B. To change the selection
or cancel an incorrect entry, scan Cancel on Appendix B.
Two Discrete Lengths - Select this option to decode only those codes
containing two selected lengths. For example, select MSI Plessey Two
Discrete Lengths, then scan 0, 6, 1, 4, to decode only MSI Plessey symbols
containing 6 or 14 characters. Numeric bar codes begin on Appendix B. To
change the selection or cancel an incorrect entry, scan Cancel on Appendix B.

Unitech MS916 Specifications

General

Type	Handheld bar code reader
Wavelength	650 nm
Sensor type	Laser
Scanner type	1D
Read rate (max)	104 reads/s
Linear (1D) barcodes supported	Codabar, Code 128A, Code 32, Code 39, Code 93, EAN-13, EAN-8, MSI
2D (matrix & stacked) barcodes supported	Not supported
Bluetooth version	2.1+EDR
Standard interfaces	Bluetooth, USB
Connectivity technology	Wired & Wireless
Certification	CE, FCC, BSMI, VCCI
Keys quantity	3 keys
Product color	White
Internal memory	16 MB
Built-in display	Yes
Housing material	-
Display resolution	128 x 64 pixels
Display technology	OLED
International Protection (IP) code	IP42
Battery capacity	680 mAh
Power source type	Battery
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	95.9 mm
Width	36.9 mm
Height	21.1 mm
Weight	63 g
