Unitron TCS Pro 500 User Manual

TCS Pro 500
UNITRON
®
73 Mall Drive, Commack, NY 11725 • 631-543-2000 • www.unitronusa.com 11
Accessory Installation/Adapters (continued)
Installation

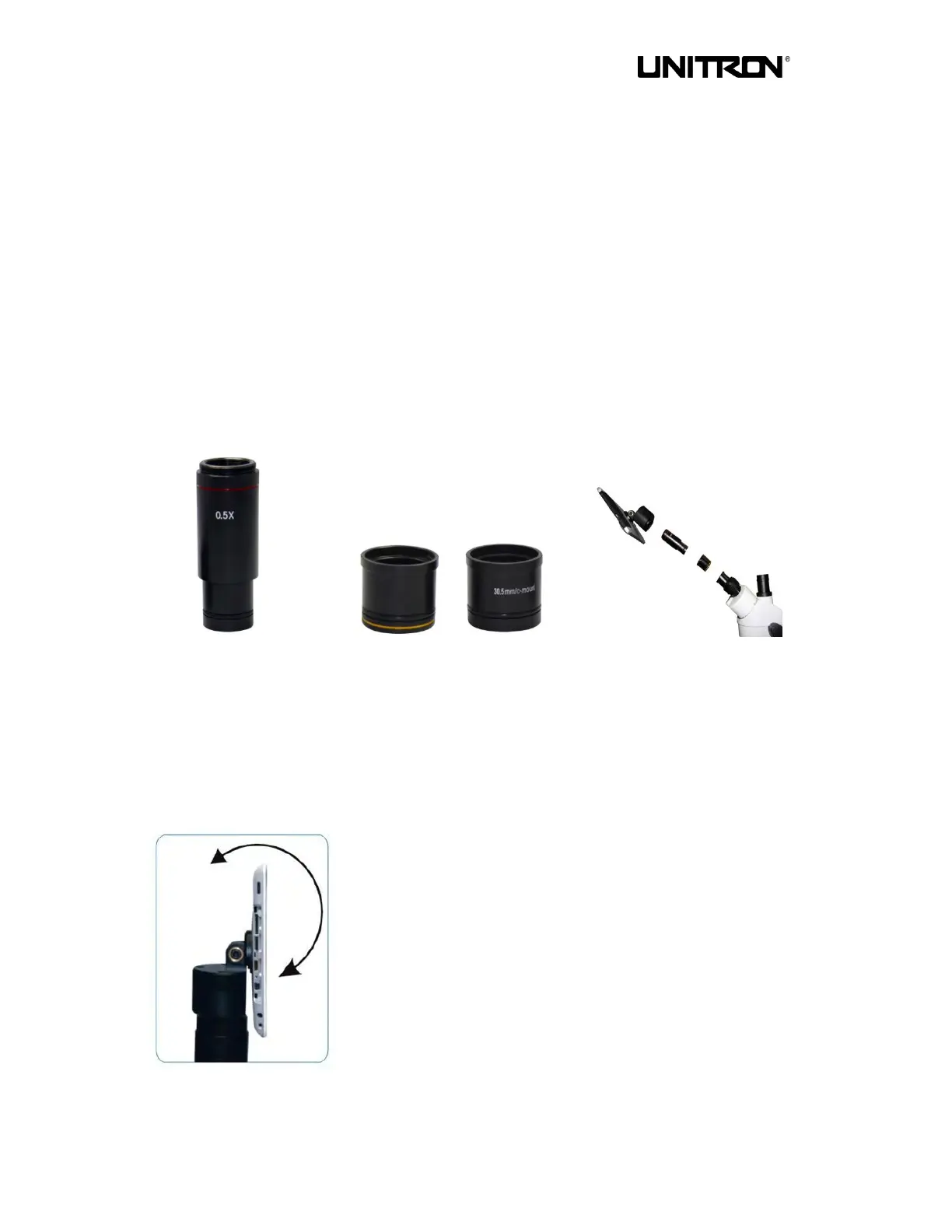

Connection Via Eyepiece Adapter: Thread the upper end of the eyepiece adapter onto the TCS Pro 500
adapter (See (A) below). Insert the bottom end of the eyepiece adapter into the ocular tube with a diameter of
Ф23mm.
If the diameter of the ocular tube is too large, an optional adapter ring needs to be added onto the ocular tube.
There are two sizes of adapter rings with diameters of Ф30mm and Ф30.5mm (See (B) below).
Insert the eyepiece adapter into the adapter ring and then insert the adapter ring into the ocular tube (See (C)
below).
CAUTION
The wide angle view of the TCS Pro 500 is adjustable to
0-90º incline. DO NOT attempt to rotate the screen beyond
this incline.
Rotating the screen too frequently may cause damage.
For instructions on adjusting the incline, please refer to the
QUICK START GUIDE.
(A)
(B)
(C)

Unitron TCS Pro 500 Specifications

General

Brand	Unitron
Model	TCS Pro 500
Category	Microscope
Language	English
