Unitronics Jazz OPLC JZ20-R10 User Manual

03/14
JZ20-R1X/JZ20-J-R1X
2 Unitronics
Add-on modules-
Available by separate order for
communication and cloning.
Integral USB Port
This may be used for
programming purposes.
Note:
the USB port and an Add-on module cannot be physically connected at the same time.

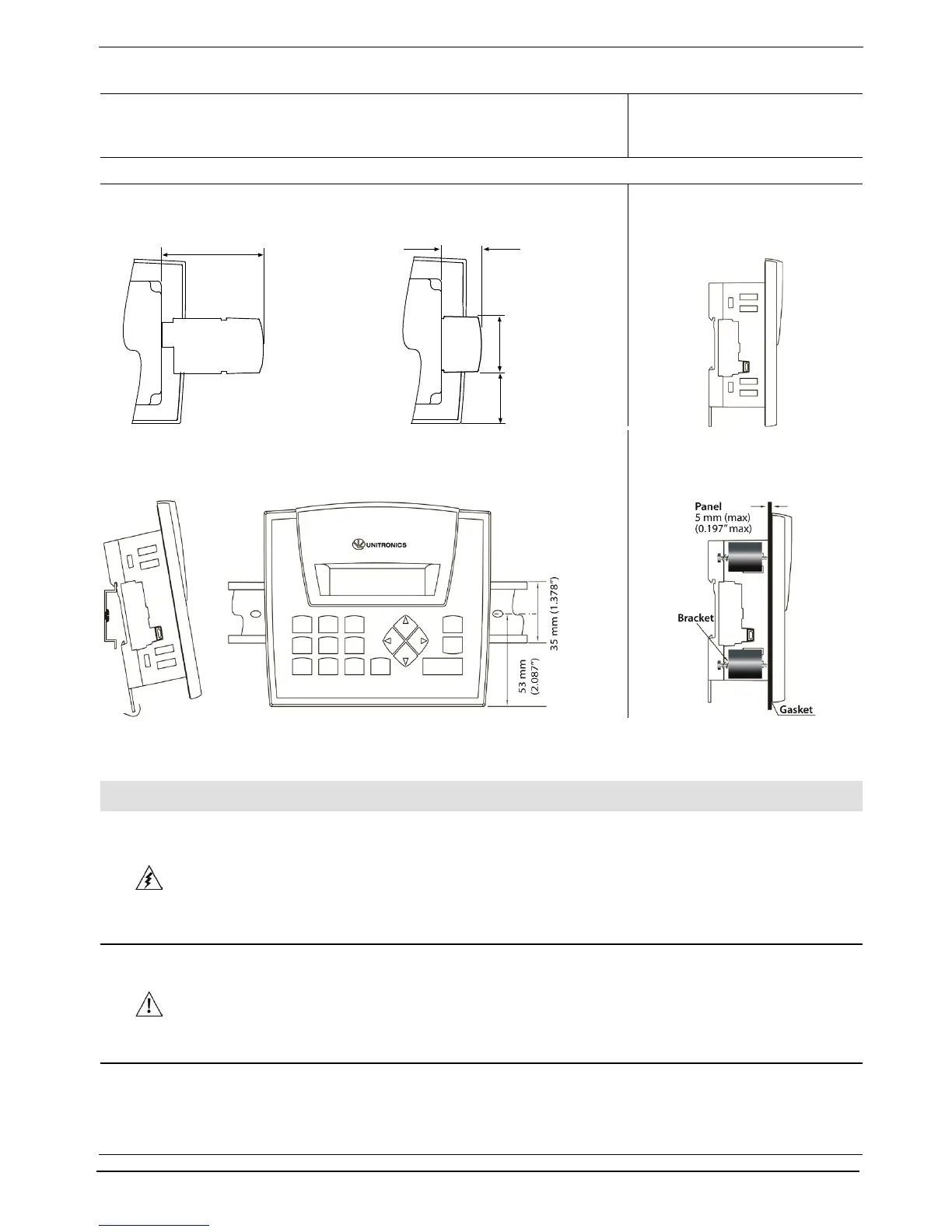

Add-on: during installation
Add-on: after installation
USB Port
Installing an Add-on module requires sufficient clearance space
72 mm (2.835")
27.5 mm
(1.083")
38 mm
(1.496")
35.8 mm
(1.409")
DIN-rail mounting
Snap PLC onto the DIN rail
Panel mounting
Cut-out: 117 x 89mm
(WxH)(4.606”x 3.504”)
Notes: Removing the unit requires clearance space. Recommendation: approximately 40mm (1.58”)
For UL listed module, in order to meet the UL508 standard, panel-mount this device on
the flat surface of a Type 1 enclosure.
Wiring
 This equipment is designed to operate only in SELV/PELV/Class 2/Limited Power
environments.
 All power supplies in the system must include double insulation. Power supply outputs
must be rated as SELV/PELV/Class 2/Limited Power.
 Do not connect either the ‘Neutral or ‘Line’ signal of the 110/220VAC to device’s 0V pin.
 Do not touch live wires.
 All wiring activities should be performed while power is OFF.
 Install an external circuit breaker. Guard against short-circuiting in external wiring.
 Use appropriate circuit protection devices.
 Unused pins should not be connected. Ignoring this directive may damage the device.
 Double-check all wiring before turning on the power supply.
Caution
 To avoid damaging the wire, use a maximum torque of 0.5 N·m (5 kgf·cm).
 Do not use tin, solder, or any substance on stripped wire that might cause the wire
strand to break.
 Install at maximum distance from high-voltage cables and power equipment.
