Unitronics Jazz OPLC JZ20-R10 User Manual

03/14
JZ20-R1X/JZ20-J-R1X
4 Unitronics
Digital Inputs, Controller’s Power Supply
JZ20-R10/JZ20-J-R10

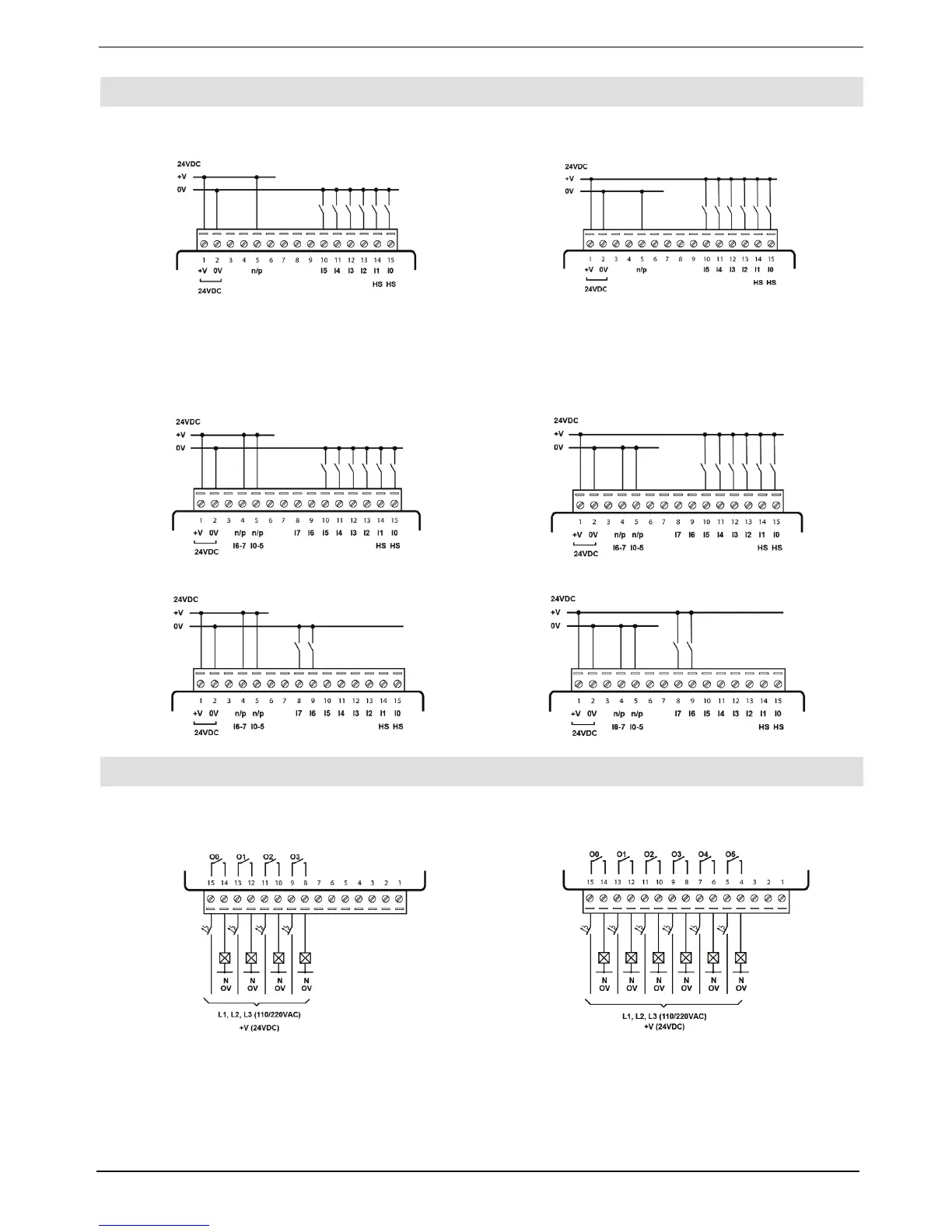

Input wiring (I0-I5), npn (sink)
Input wiring (I0-I5), pnp (source)
JZ20-R16/JZ20-J-R16
Note: The inputs are arranged in two groups. You can wire one group as npn and the other as pnp,
or wire both groups as npn, or as pnp. In either case, the npn/pnp pins must be connected.
Input wiring (I0-I5), npn (sink)
Input wiring (I0-I5), pnp (source)
Input wiring (I6-I7), npn (sink) Input wiring (I6-I7), pnp (source)
Digital Outputs
JZ20-R10/JZ20-J-R10
JZ20-R16/JZ20-J-R16
Output wiring
