JZ20-T40/JZ20-J-T40

4 Unitronics

Digital Inputs, Controller’s Power Supply

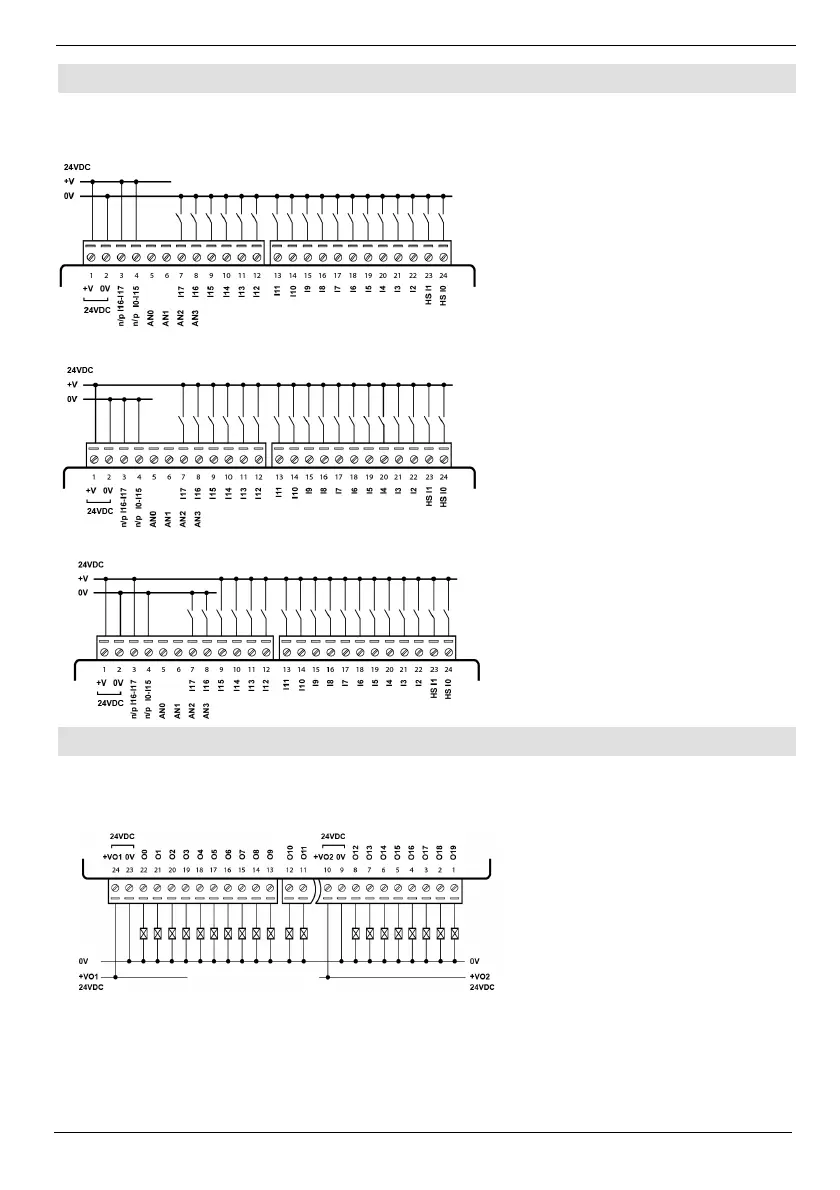

Note: The inputs are arranged in two groups. You can wire one group as npn and the other as pnp,

or wire both groups as npn, or as pnp. In either case, the n/p pins must be connected.

Input wiring, npn (sink)

Input wiring, pnp (source)

Input wiring (I0-I15), pnp (source), I16-I17, npn (sink)

Digital Outputs, Outputs’ Power Supply

+V01 is the power supply for outputs O0–O11.

+V02 is the power supply for outputs O12 –O19.
