JZ20-T40/JZ20-J-T40

Unitronics 5

Analog Inputs

Note: Shields should be connected at the signal source.

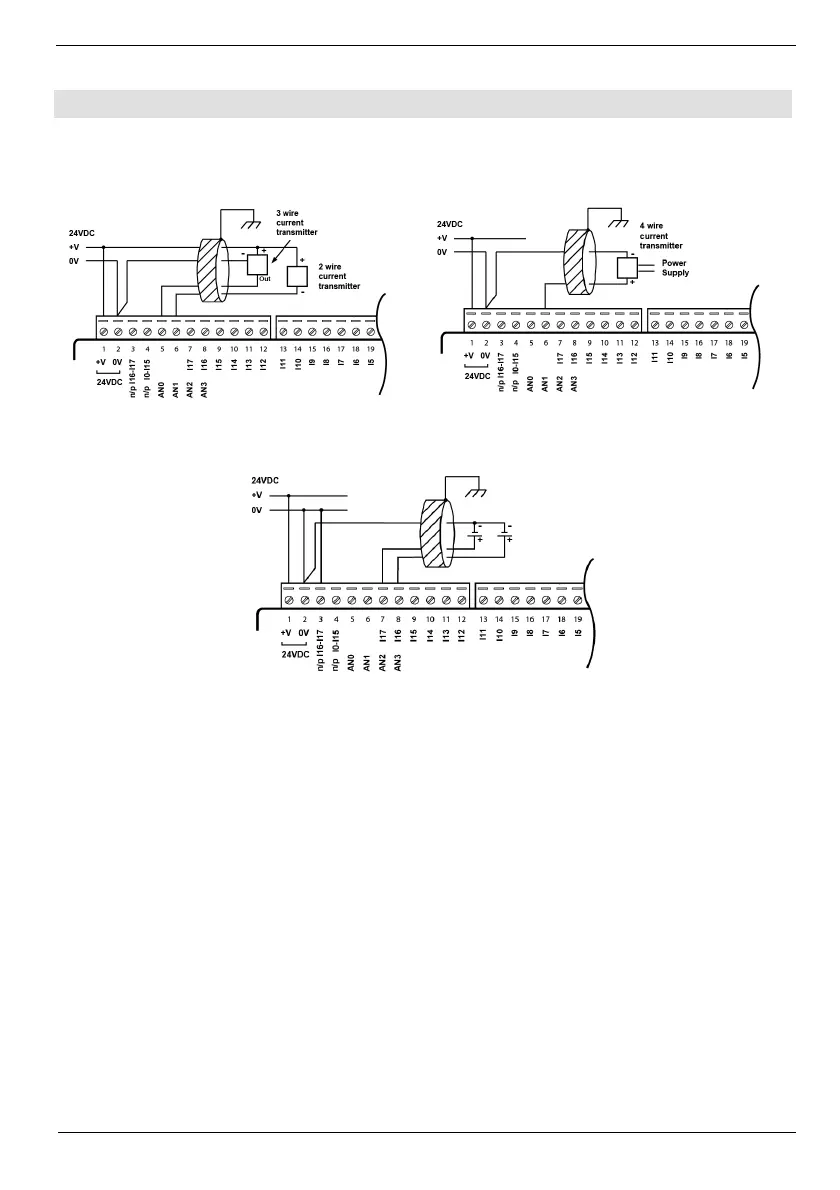

Analog Input wiring, current, (AN0-AN1)

2 or 3-wire 4-wire

Analog Input wiring, voltage, (AN2-AN3)

Note: If either I16 or I17 is wired as an npn digital input, the remaining input may not be wired as an

analog input.
