Unitronics V130-33-TRA22 - Page 9

Vision™ OPLC™
Unitronics 9
RTD

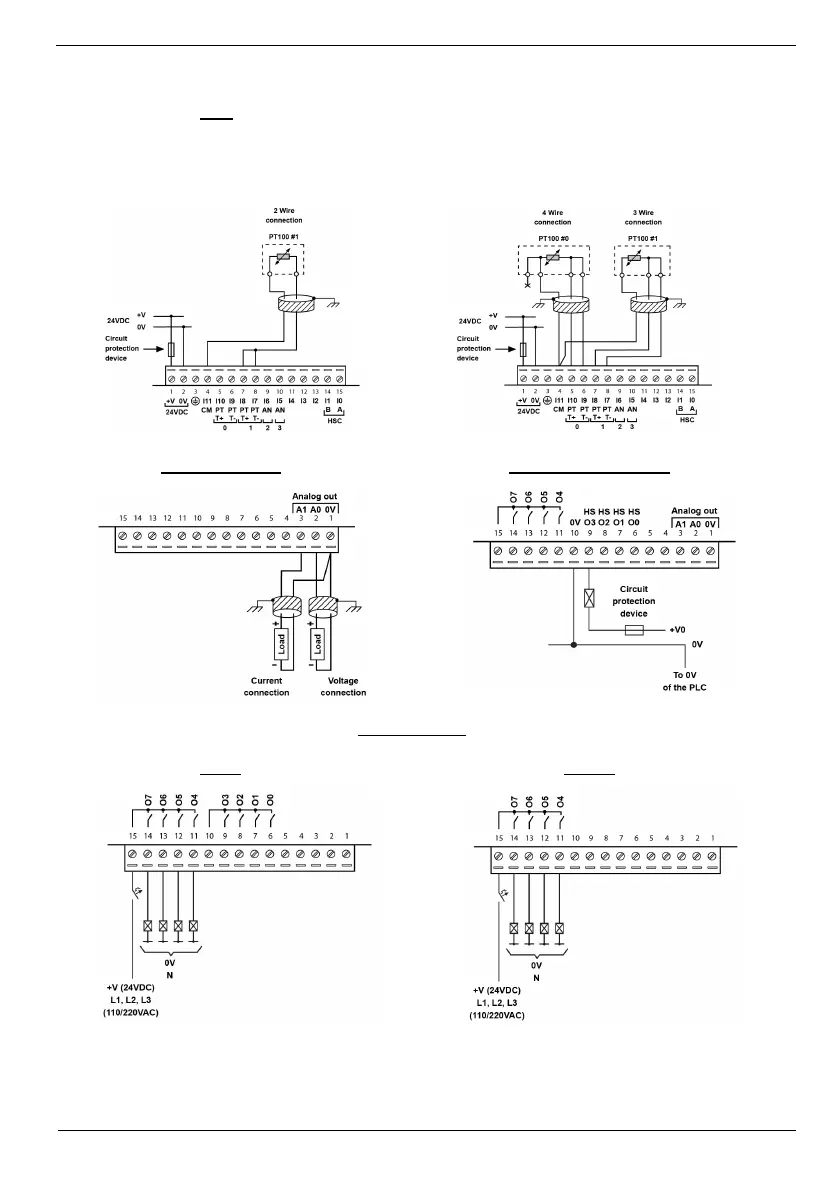

 PT100 (Sensor 0): use Input 9 and 10, related to CM signal.
 PT100 (Sensor 1): use Input 7 and 8, related to CM signal.
 4 wire PT100 can be used by leaving one of the sensor leads unconnected.
Analog Outputs npn Outputs (TRA22)
Relay Outputs
RA22 TRA22
