V200-18-E3XBW Snap-in I/O Module
10 Unitronics
A
nalog Output Jumpers
Jumper # Current* Voltage
Analog Output 0
1 A B
Analog Output 1
2 A B
Analog Output 2
3 A B
Top PCB board
Analog Output 3
4 A B
* Default factory setting

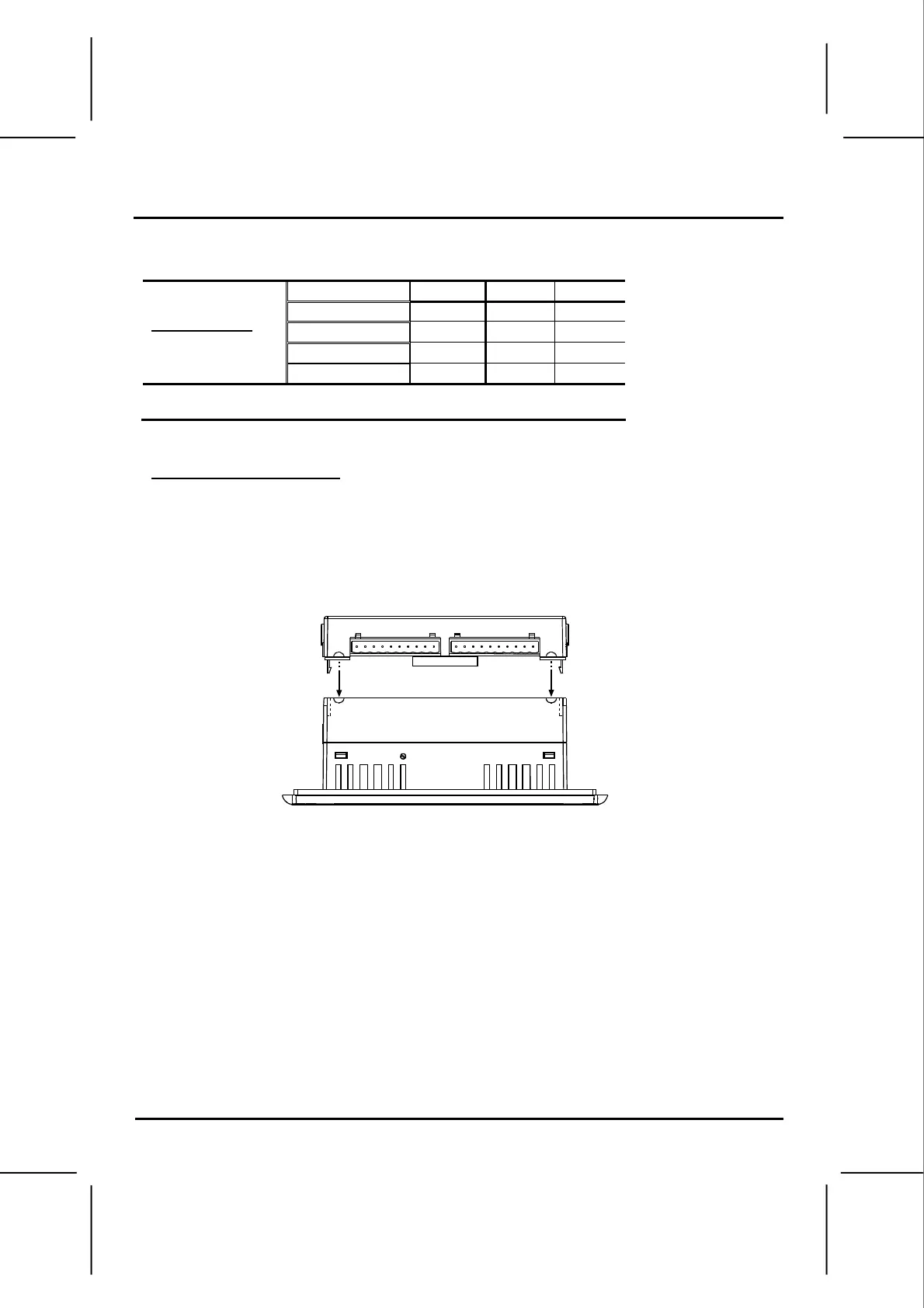

Reassembling the controller
1. Return the PCB board to the module and secure the center screw.
2. Next, reinstall the module. Line the circular guidelines on the controller up with the
guidelines on the Snap-in I/O Module as shown below.
3. Apply even pressure on all 4 corners until you hear a distinct ‘click’. The module is now
installed. Check that all sides and corners are correctly aligned.
