UNITY LAUNDRY SYSTEMS UTS62 - UTS40 MACHINE DIMENSIONS

9
Part. 14000101 Rev. 12/2019
®/™ ©2019 Unity Laundry Systems. All rights reserved.
03 INSTALLATION
3.1 REQUIREMENTS OF INSTALLATION LOCATION
Themachinemustbeinstalledmeetingtheminimumdistancesspeciedtoguaranteetheproperoperationandmaintenance
access of the machine.

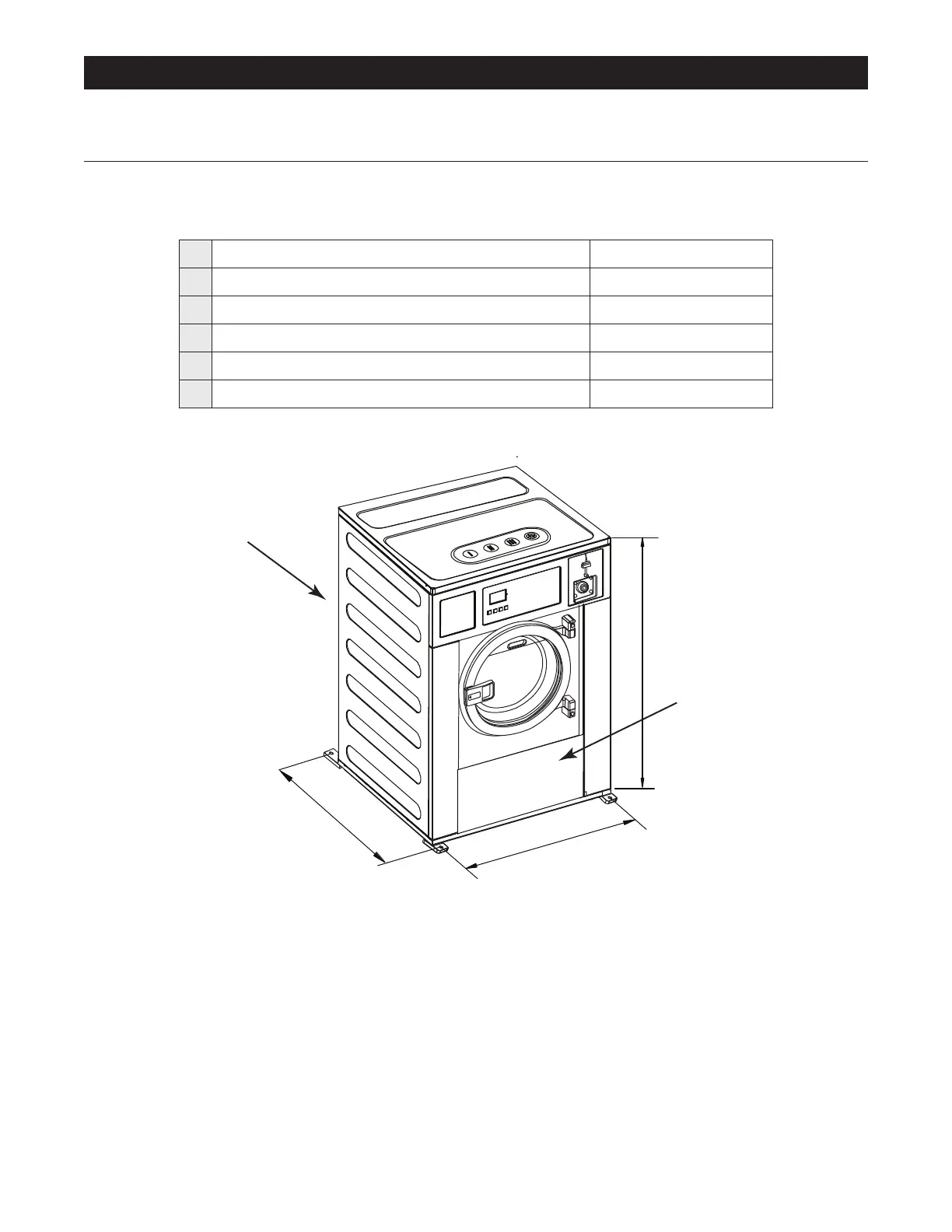

A Working area in front of machine - in (mm) 39.4 (1,000)
B Maintenance area behind machine - in (mm) 31.5 (800)
C Width - in (mm) 34.6 (880)
D Depth - in (mm) 34.2 (870)
E Height-in(mm) 55.1 (1,400)
F Distance between machines - in (mm) 0 (0)
D
E
F
C
A
B
