MOUNTING THE L-60
The L-60 can be mounted from the bottom or the top. The most common method is

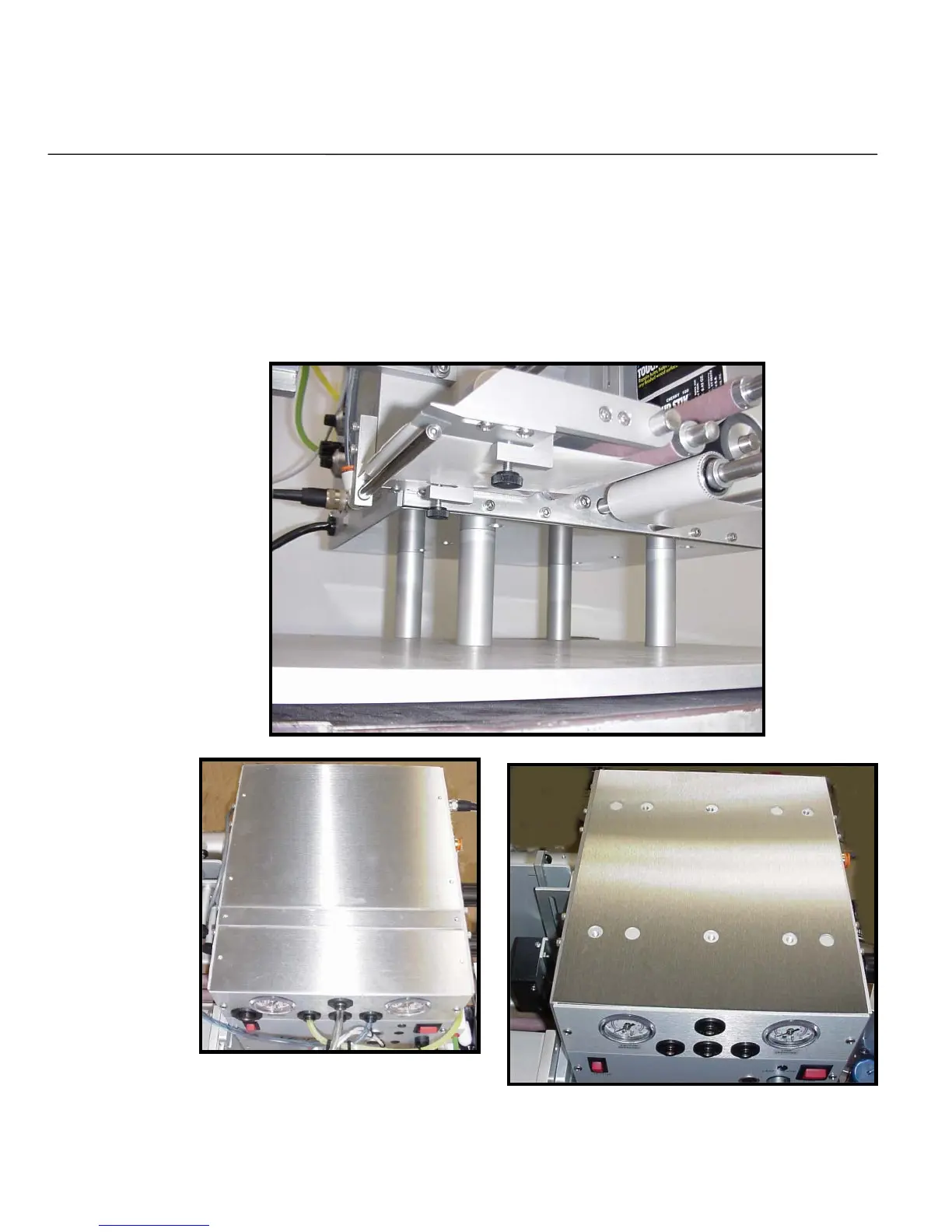

bottom mount (see Fig 6). Fig 6 shows the L-60 mounted to the optional base plate
with standoffs. Fig 7 shows the top of an L-60 ordered with standard mounting and
can accept a coder. Fig 8 shows an L-60 Ordered for top mount.
Six holes have been provided in the two lower tie bars. Any combination may be
used. The hole pattern most used is 6-1/2" square, which is where the 4 legs are
shown in Fig. 6. All the holes are tapped 1/4-20.
Fig 6
Fig 7
Fig 8
