“SMART HEAD” (OPTIONAL)
The Smart Head is used if there is a variation in height of the product or the location
of the product on the conveyor cannot be controlled. Simply put, the air cylinder is
going to travel it makes contact with the product. A “smart head“ vacuum head is
constructed so that the pad that holds the label compresses when the label is
applied. When a sensor detects a specific amount of compression, it sends a signal
to the machine telling the air cylinder to return the vacuum head to the home
position.

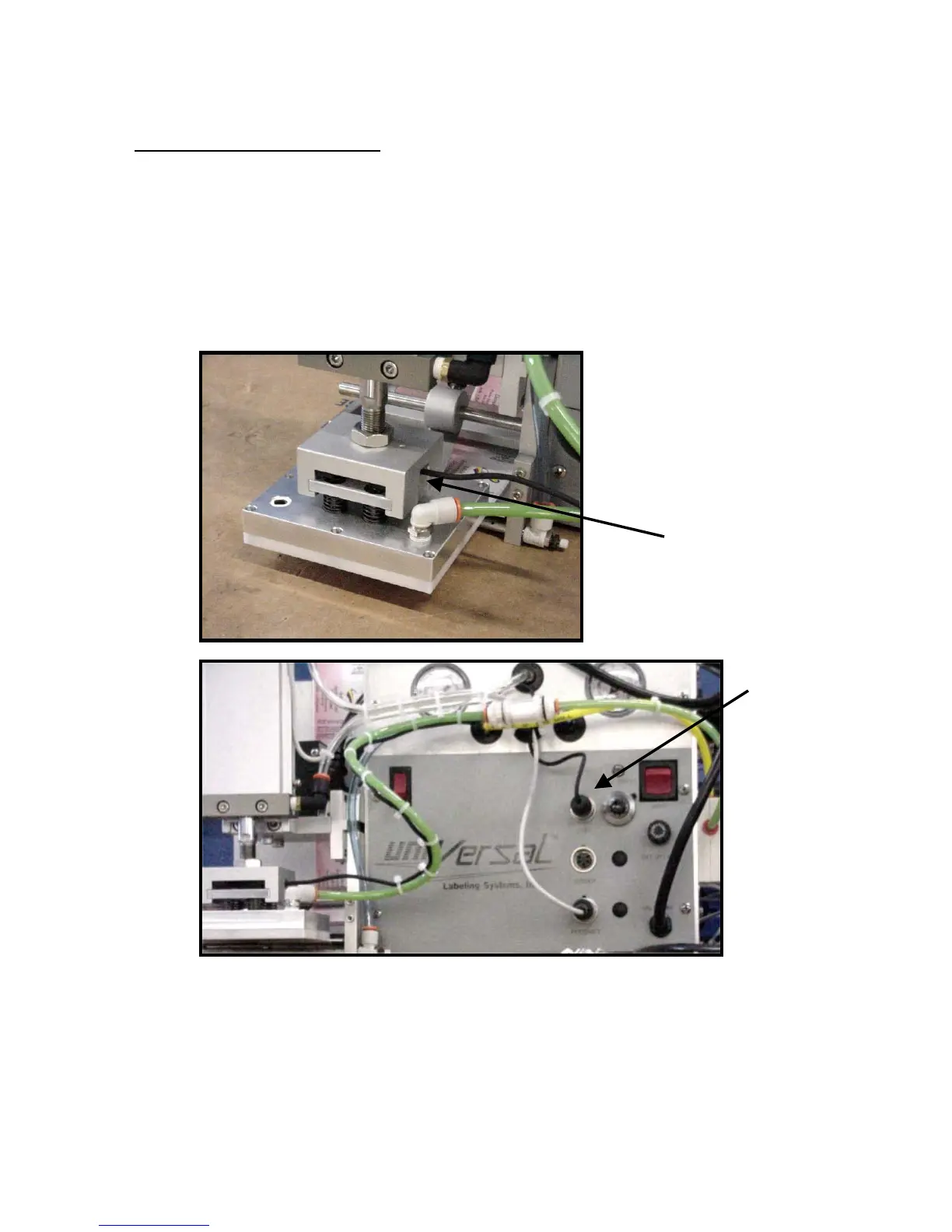

Sensor
“Smart head”
connection plug
Fig 12
Fig 13
