Page 24
Nut
GENERAL MAINTENANCE

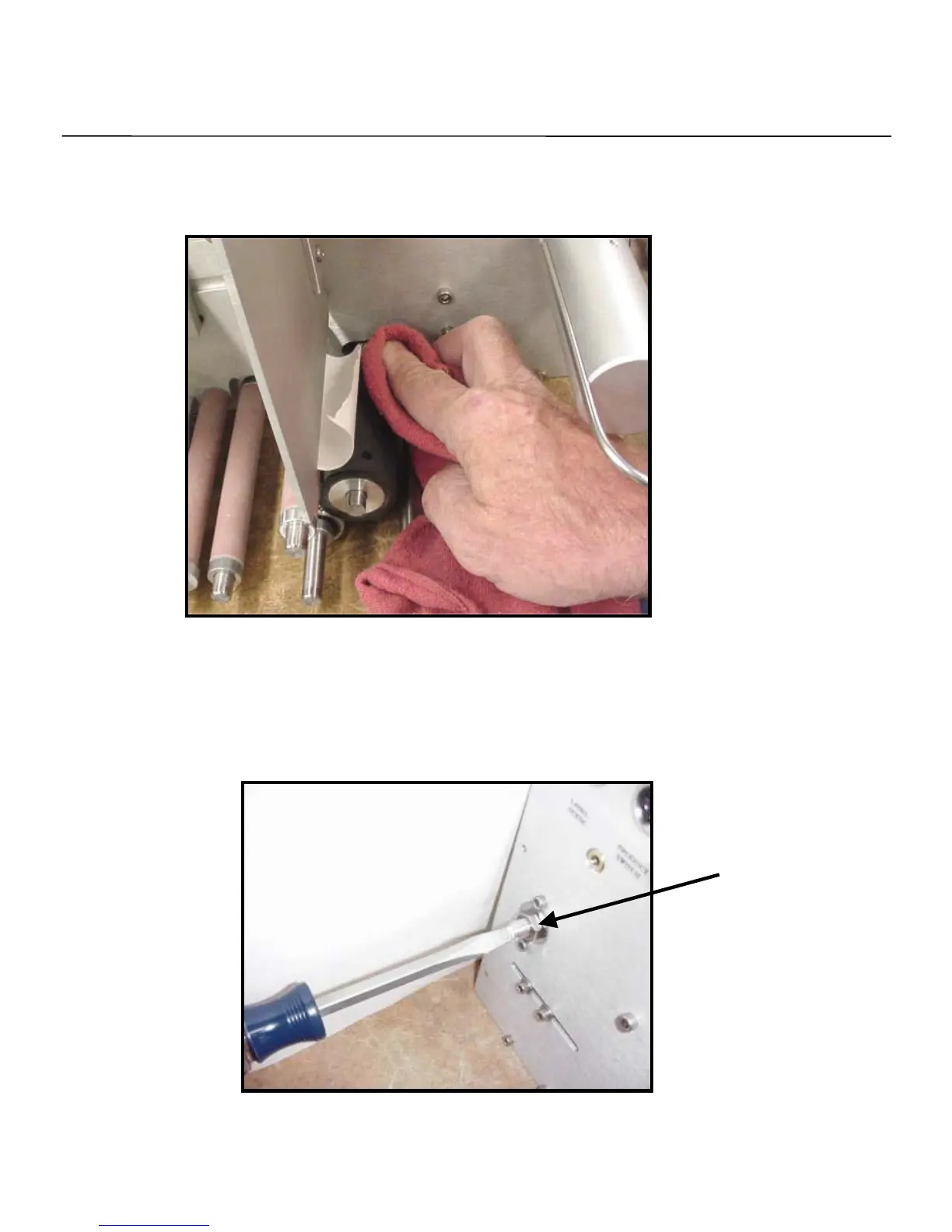

The Drive Roll (Drawing L60-I-00D #06) should be kept clean to avoid slippage.
This can affect the label transfer onto the Vacuum Head. Clean with lacquer thinner,
alcohol or similar cleaner to remove glue build-up.
The Rewind Assembly should be set just tight enough to rewind the waste web.
Adjusting the tension of the Rewind Assembly is accomplished by:
1. Loosening the nut that secures the Slip Clutch Spring Retainer (See Fig 25
below)
2. With a flat head screwdriver, turn the Slip Clutch Spring Retainer clockwise for
more tension, or counter clockwise for less tension.
Fig 24
Fig 25
