10. MAXI.Link
Connecting two or more ovens – Installation

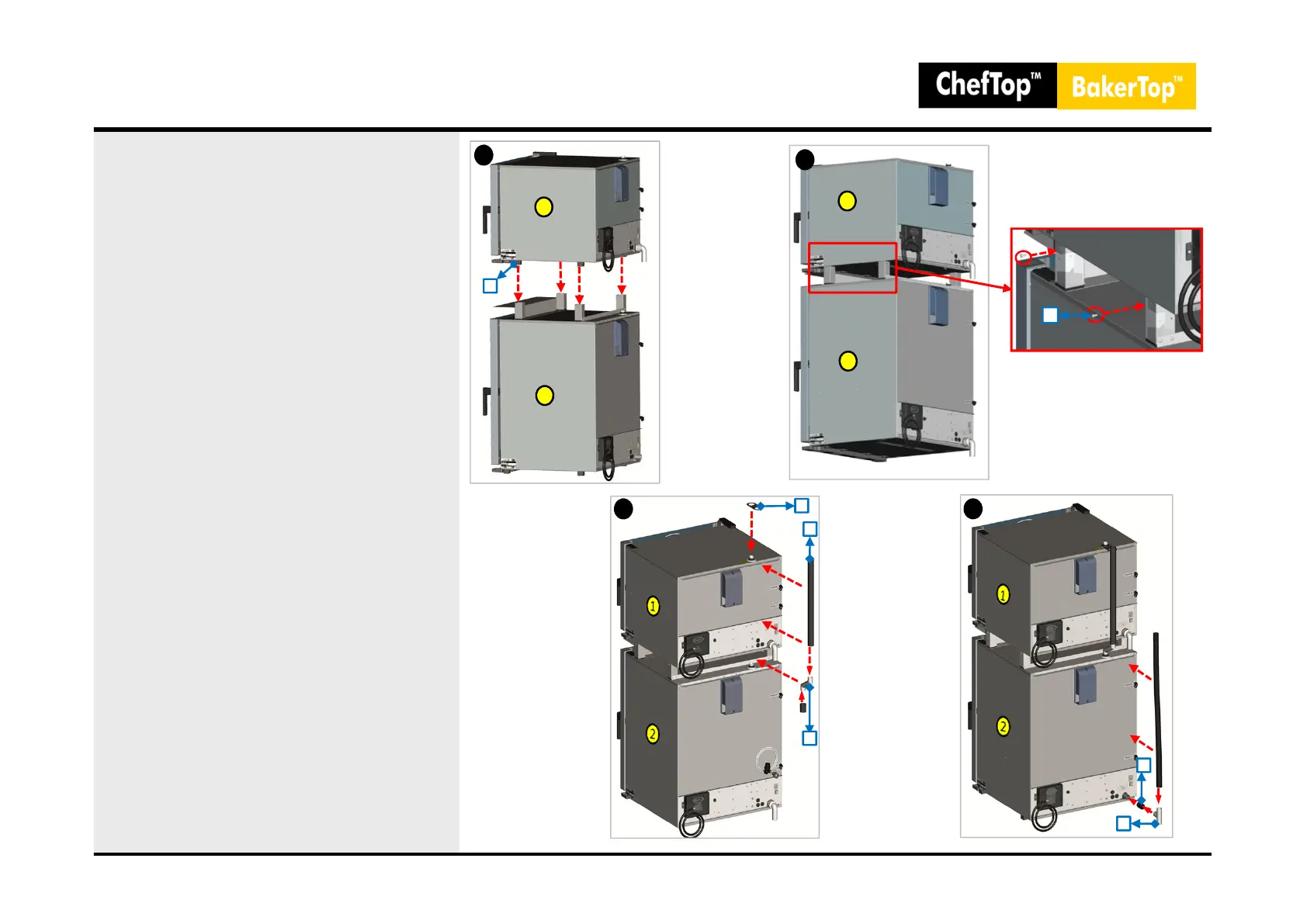

H. Place the oven 1 on top of oven 2 matching
the feet (6) of the oven 1 in the steel tubes
previously installed on top of the oven 2
I. Fix with the screws (7) the 4 feet of the oven
1 to the steel tubes of the oven 2
J. Fumes exit:
- Place and fix the inox curve “Z” (8) to the
fumes exit of the oven 2 using the metal
clamp tube sqeeze supplied with in the
stacking kit.
- Place the black tube Ø 30 mm [9] on the
curve “Z” and fix it with the metal clamp.
- Place the metal plate of the chimney holder
(10) on the fume chimney exit of the oven 1
- Insert the black tube in the free hole of the
metal place of the chimney holder of the oven
1
K. Drain water:
- Position and secure through the proper
metal clamp the piece of black tube [11] the
discharge of the oven 2
- Position and secure through the proper
metal clip curve "T" [12] with a piece of black
pipe
- Position and secure with the metal clips the
exhaust connecting tube from the 90 °curve
of the oven 1 to the "T" curve of the oven 2
37
11
12
K
1
2
H
6
J
8
9
10
7
I
1
2
