SB60 Work Platform
BY CRANE
Stand clear of machine when lifting.
Check specifications on back page, insure
that crane and slings are of correct capacity
to lift weight of unit.
1.Insure that boom is fully lowered and retracted.
2.Attach straps to chassis lifting lugs only. Insure
that straps are adjusted properly to keep unit
level when lifting.
BY TRUCK OR TRAILER
1.Insure that boom is fully lowered and retracted.
2.Maneuver the machine onto bed of truck / trailer.
3.When winching, follow instructions for emer-
gency towing on page 2-6. Attach winch cable
to front tie down lugs.
Maintenance
Transportation
Do not winch machine faster than 3 mph.
4.After winching, insure that all four drive hubs are
engaged by returning the center caps to their
original orientation.
5.Secure the machine to the transport vehicle
using chains / straps of adequate load capacity
(refer to specifications Table 1-1) attached to
chassis tie down lugs. (see figures 2-8 and 2-10)
6.Place wooden block (4" x 4" x 36") under
platform support braces as shown. (Figure 2-9)
7.Attach ratchet strap under platform floor grating,
over support braces. (Figure 2-9) Do not over
tighten.
NEVER elevate the machine while on a truck
or trailer.

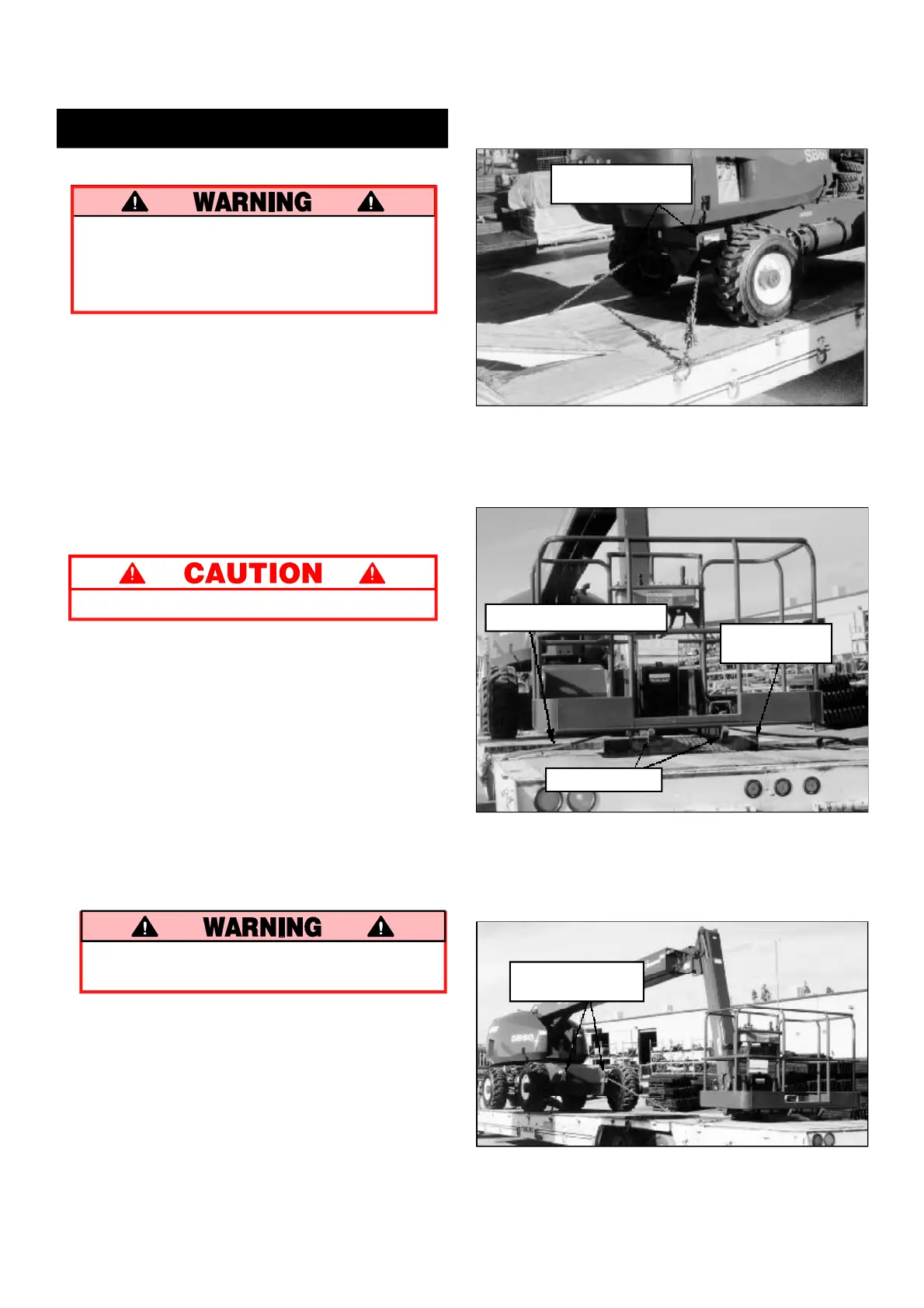

Figure 2-10: Rear chassis tie down lifting lugs.
Figure 2-9: Securing the machine for
transportation.
Figure 2-8: Front chassis tie down lifting lugs.
Platform Tie Down Strap
Wooden Block
4" x 4" x 36"
Support Braces
Chassis Tie Down
Lifting Lugs
Chassis Tie Down
Lifting Lugs
