Illustrated Parts Breakdown
Section
SB60 Work Platform6-82
6.2

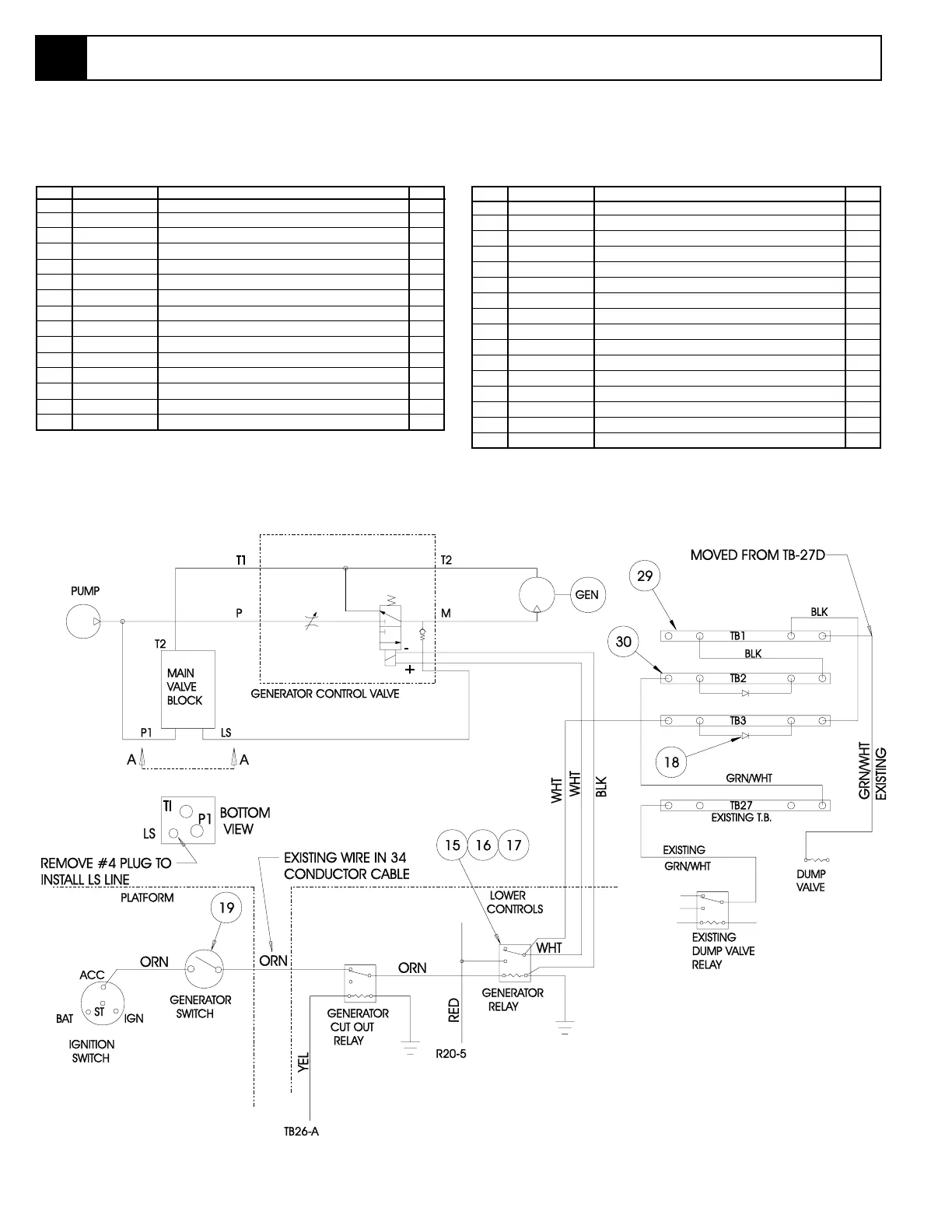

GENERATOR OPTION, DIESEL
100098-001
ITEM PART DESCRIPTION QTY.
ITEM PART DESCRIPTION QTY.
1 100699-000 WELDMENT, BRACKET 1
2 100702-000 GENERATOR ASSY 1
3 100704-000 VALVE BLOCK 1
4 100705-000 CORD ASSY 1
5 011931-003 FITTING, STR 6MB-6MJ LONG 1
6 100447-000 HOSE KIT 1
7 011934-007 FITTING O RING 90° 8MB-6MJ 3
8 011937-003 FITTING SWIVEL 90° 6FJX-6MJ 1
9 011941-005 FITTING STR 6MB-6MJ 2
10 011934-004 FITTING 0 RING 90° 6MB-6MJ 1
11 011937-004 FITTING SWIVEL 90° 8FJX-8MJ 1
12 014693-004 FITTING REDUCER 8MJ-6MJ 1
13 020733-003 FITTING TEE 8FJX-8MJ-8MJ 1
14 011937-001 FITTING, SWIVEL 90° 4FJX-4MJ 1
15 067661-001 RELAY SPDT 12V 2
16 067662-001 SOCKET 2
17 067662-005 RETAINER CLIP 2
18 029825-002 DIODE 3 AMP 2
19 012797-000 SWITCH TOGGLE 1
20 011254-008 SCREW HHC GR5 3/8-16 X 1 12
21 011238-006 WASHER 3/8 16
22 011250-006 NUT 3/8-16 UNC 8
23 018062-006 SPACER 1 5/8 OD X 2 LG 1
24 029451-099 WIRE WHT 16 GA FT2
25 029456-099 WIRE YEL 16 GA FT2
26 029454-099 WIRE RED 16 GA FT2
27 029453-099 WIRE ORN 16 GA FT3
28 011941-001 FITTING STR 4MB-4MJ 2
29 068698-001 TERMINAL BLOCK (TAN) 1
30 068698-002 TERMINAL BLOCK (BLUE) 2
31 029353-099 WIRE GRN/WHT 10 GA FT2
