Section
3-4 SB60 Work Platform
Maintenance
3.2 Supporting Elevating
Assembly (Figure 3-3)
Never perform service on the work plat-
form in the elevating assembly area while
platform is elevated without first blocking
the elevating assembly.
DO NOT stand in elevating assembly area
while deploying or storing brace.
Installation
1. Park the work platform on firm level ground.
2. Fully retract upper boom.
3. Verify platform emergency stop switch is ON.
4. Turn platform/chassis switch to CHASSIS.
5. Using the Elevate Boom Switch, elevate platform
8-12 inches.
6. Using an overhead hoist (preferred) or jackstand
with minimum capacity of Two tons; Support the
boom.
7. Push lower button and gradually lower platform until
overhead hoist is supporting the elevating assembly.
Removal
1. Using chassis controls, gradually raise platform until
boom is free of support.
2. Remove support.
3. Push lower button to completely lower platform.

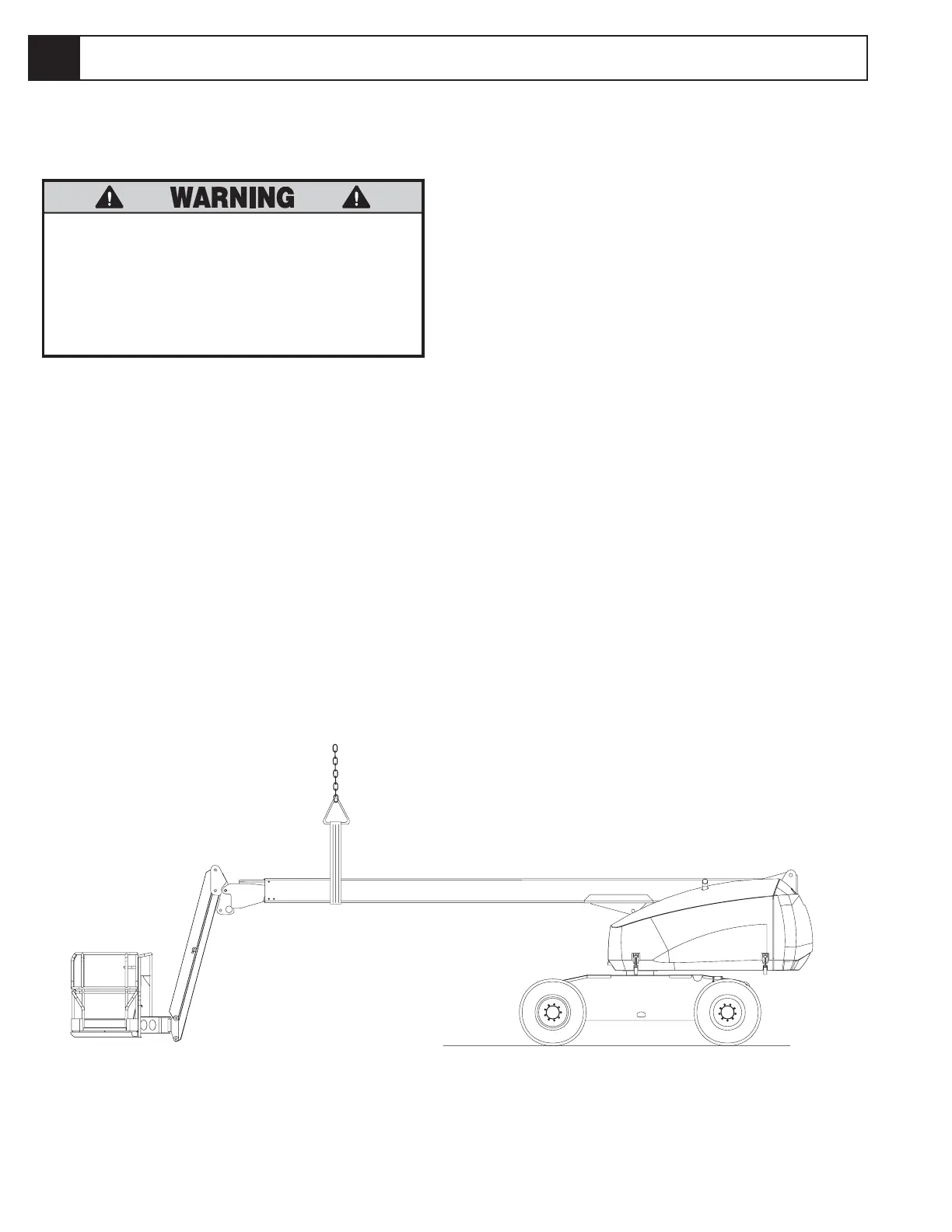

Figure 3-3: Supporting Elevating Assembly
3.2
To Next Page
