Upright SB60 - Page 25

Section
3-11SB60 Work Platform
Maintenance

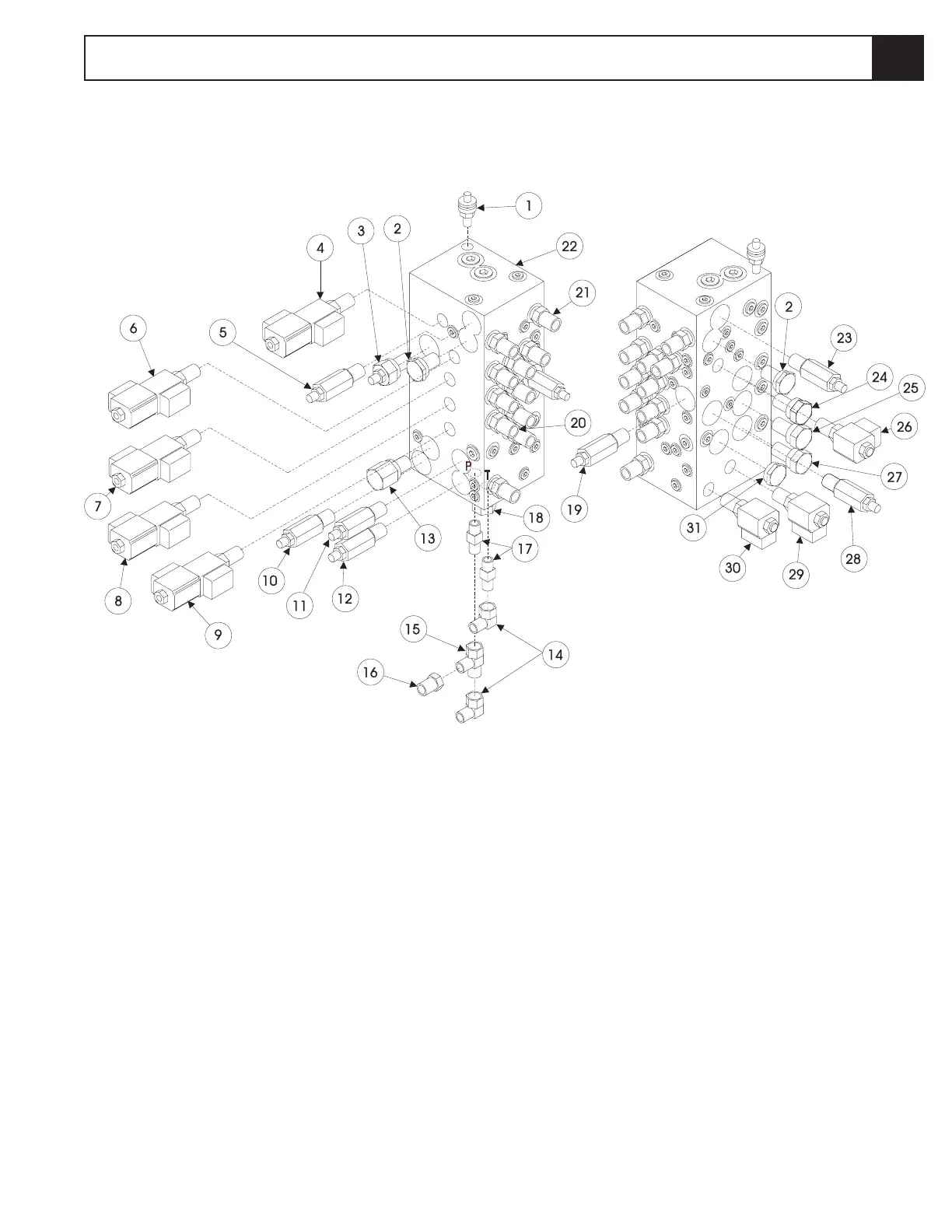

Figure 3-12: Hydraulic Manifold
1. Pressure Test Port
2. Check Valve
3. Flow Control Valve
4. Steering
5. Steer Left Relief
6. Cage Level
7. Swing (Turret)
8. Lift Boom
9. Boom Extend
10. Main Relief
11. High Pressure Extend Relief
12. Low Pressure Extend Relief
13. Bypass Valve
14. Fitting
15. Fitting
16. Fitting
17. Fitting
18. Shuttle Valve
19. Relief Valve
20. Fitting
21. Fitting
22. Valve Block
23. Steer Right relief
24. Compensator
25. Compensator
26. Boom Power
27. Compensator
28. Boom Lift Relief
29. Dump
30. High Pressure Extend
31. Check Valve
3.8
