Upright SB60 - Page 30

Section
3-16 SB60 Work Platform
Maintenance
4. Boot Seal
5. Oil Seal
6. Bearing, Cone
7. Bearing, Cup
8. Wheel Bolt

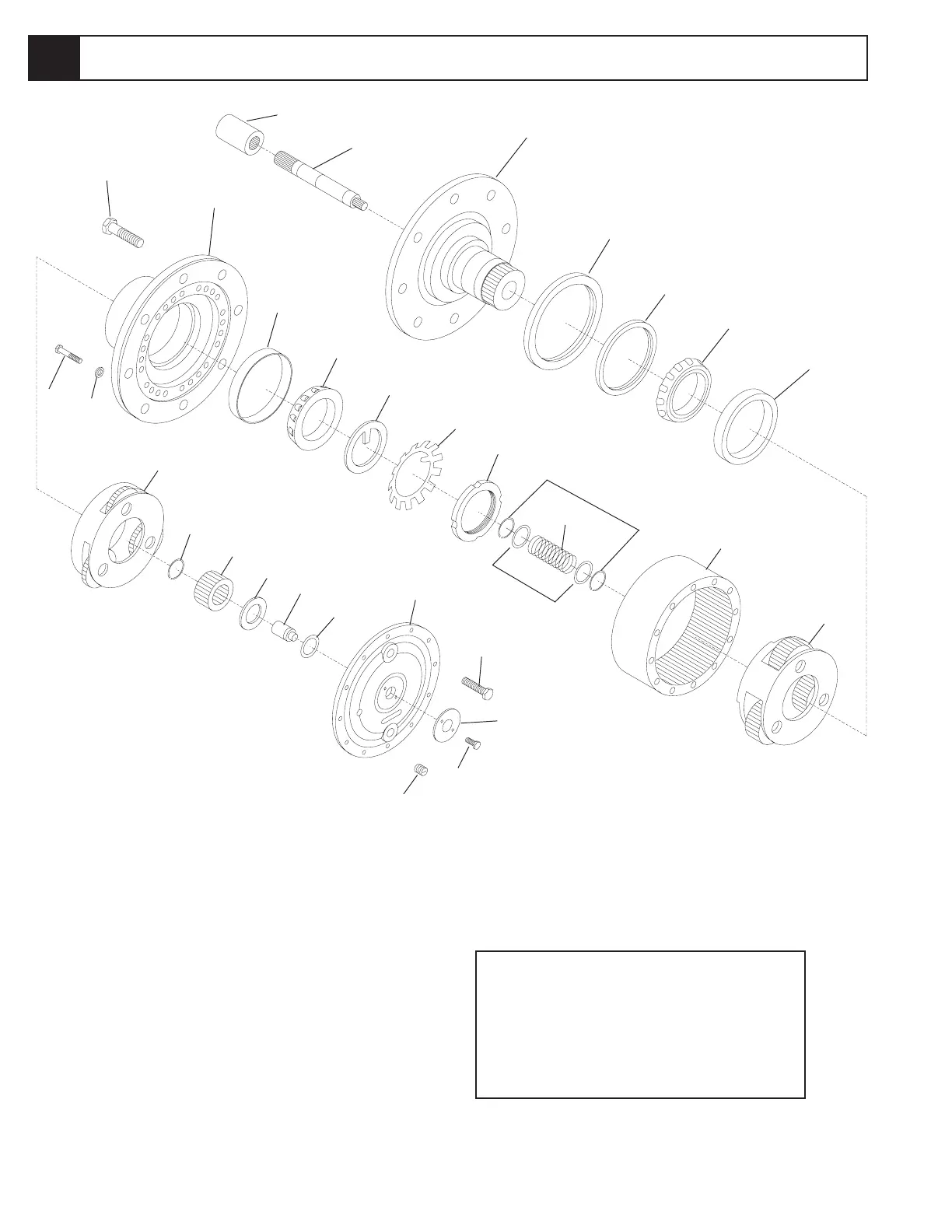

Figure 3-15: Torque Hub
12. Bearing, Cup
13. Bearing, Cone
14. Thrust Washer
15. Lock Washer
25. Thrust Washer
27. O-Ring
Service Kit (100254-020) contains:
22. Primary Carrier Assy.
23. Retaining Ring
24. Primary Sun Gear
26. Disengage Plunger
28. Large Cover
29. Hex Head Bolt
30. Magnetic Plug
31. Disengage Cover
32. Hex Head Bolt
33. Quick Disconnect Gasket
34. Quick Disconnect Assy.
35. Hex Head Bolt
1. Coupling
2. Input Shaft
3. Spindle
9. Hex Head Bolt (Grade 8)
10. Flat Washer
11. Hub
16. Bearing Nut
17. Retaining Ring
18. Washer
19. Disengage Spring
20. Ring Gear
21. Secondary Carrier Assy.
3.10
1
13
12
11
8
2
3
4
5
6
7
31
29
28
27
26
25
24
23
22
10
9
21
20
17
18
19
16
15
14
32
30
