Upright SB60 - Page 32

Section
3-18 SB60 Work Platform
Maintenance
3.11

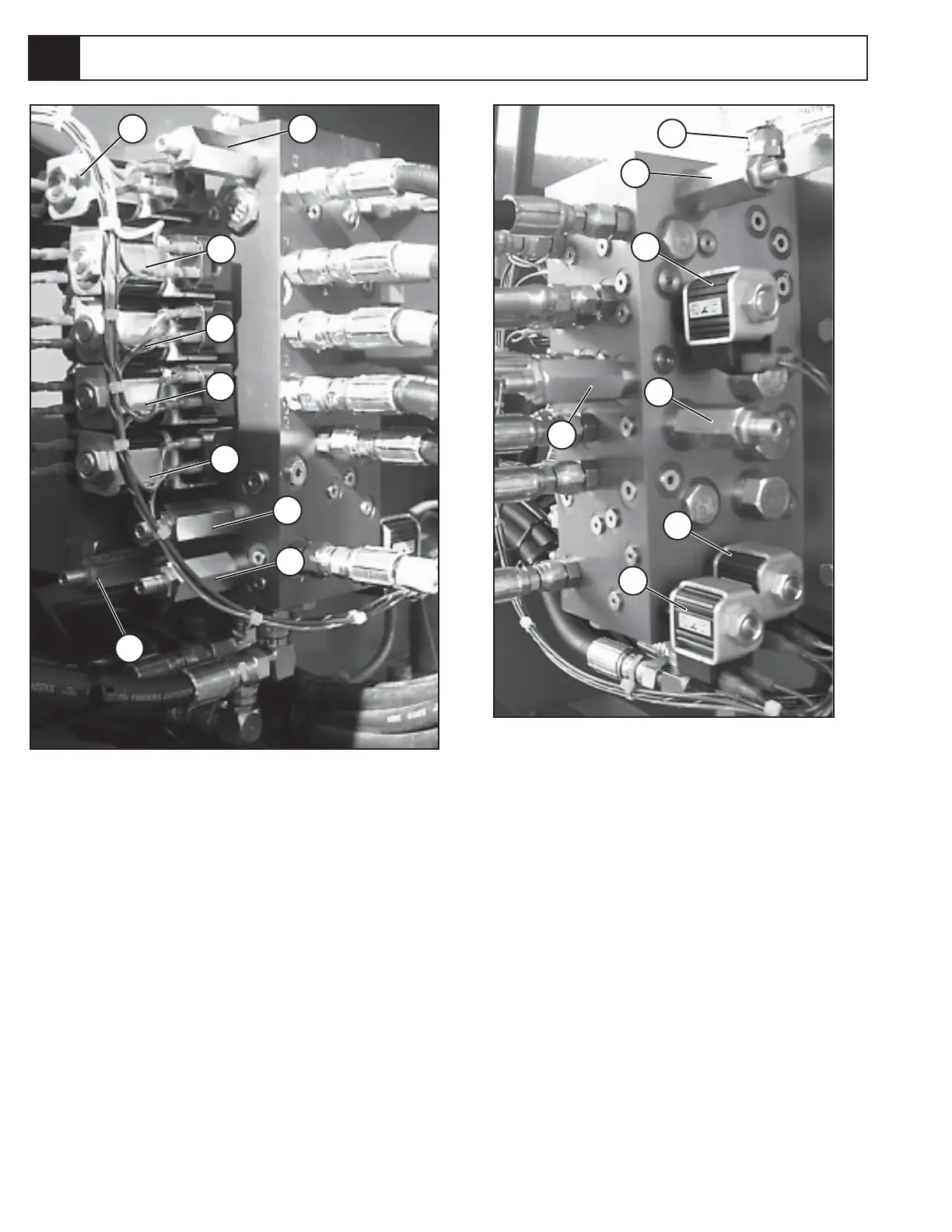

Figure 3-16: Valve Manifold
1. Steer Left Relief
2. Steering
3. Cage Level
4. Swing (Turret)
5. Lift Boom
6. Boom Extend
7. High Pressure Extend Relief
8. Low Pressure Extend Relief
9. Main Relief
Figure 3-17: Valve Manifold
10. Steer Right Relief
11. High Pressure Extend
12. Boom Lift Relief
13. Swing Relief
14. Dump
15. Boom Power
16. Pressure Test Port
12
3
4
5
6
7
8
9
10
11
12
14
15
13
3.11
16
