Introduction & Specifications
1-2
Section
SB60 Work Platform
1.2
1.2 Specifications
* Specifications subject to change without notice.
Meets or exceeds all applicable requirements of OSHA and ANSI A92.5-1992

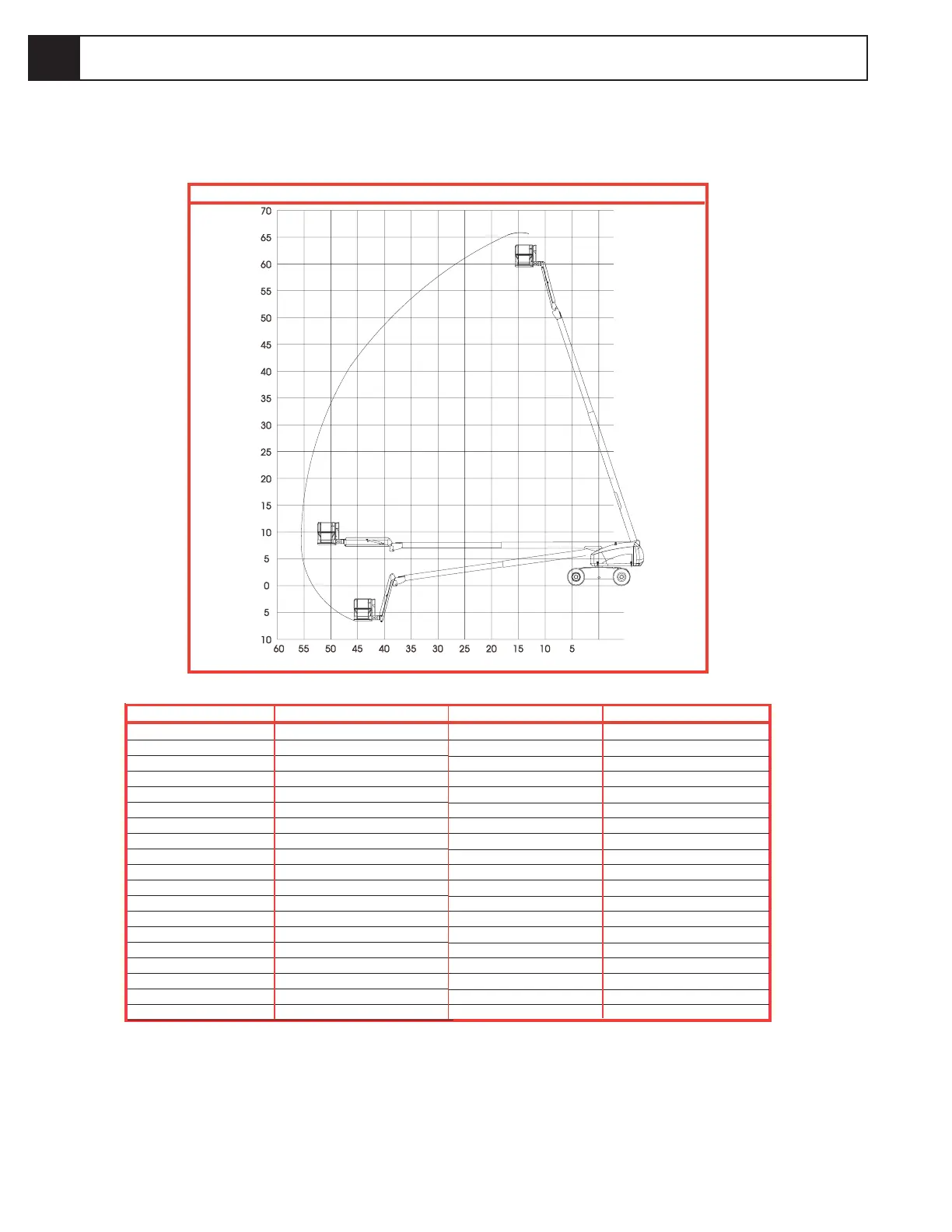

REACH ENVELOPE DIAGRAM
DIMENSIONS IN FEET
ITEM SPECIFICATION
Height
Working height maximum 6 6 f t .
Platform height maximum 6 0 f t.
Platform step in height 6 in.
Up and over height 7 ft. 6in.
Drivable height 6 0 ft .
Horizontal outreach 52 ft. 8 in.
Turret rotation 360 deg. continuous
Platform rotation 180 deg.
Tail swing 53 in.
Jib length 8 f t .
Jib arc 150 deg.
Inside turning radius 12ft. 6in.
Outside turning radius 22 ft. 2 in.
Drive speed (lowered) 4 mph
Drive speed (elevated) .7 mph
Gradability 45%
Dimensions (boom stowed)
Platform Size 39in. x 72 in. opt. 39in. x 96in.
Guardrail height 43
1
/
2
in.
Toeboards 6 i n.
Maximum platform capacity 500 lbs.
Maximum no. of occupants 2
Weight \ Gasoline 23,700 lbs.
Weight \ Diesel 24,100 lbs.
Overall height (Stowed) 8 ft. 6 in.
Overall length (Stowed) 29 ft. 8 3/4 in.
Overall width 7 ft. 11 3/4 in.
Wheel base 8 ft. 6 in.
Wheel track 59 in.
Ground Clearance 11 1/2 in.
Power source \ Gasoline GM 3.0 Liter
Power source \ Diesel Perkins 704-30
System voltage 12VDC
Maximum Hyd. Pressure 5000 psi
ITEM SPECIFICATION
Controls Electric Proportional
Tires 1 4 ply lug tread (80 psi)
Table 1-1: Specifications
