Illustrated Parts Breakdown
Section

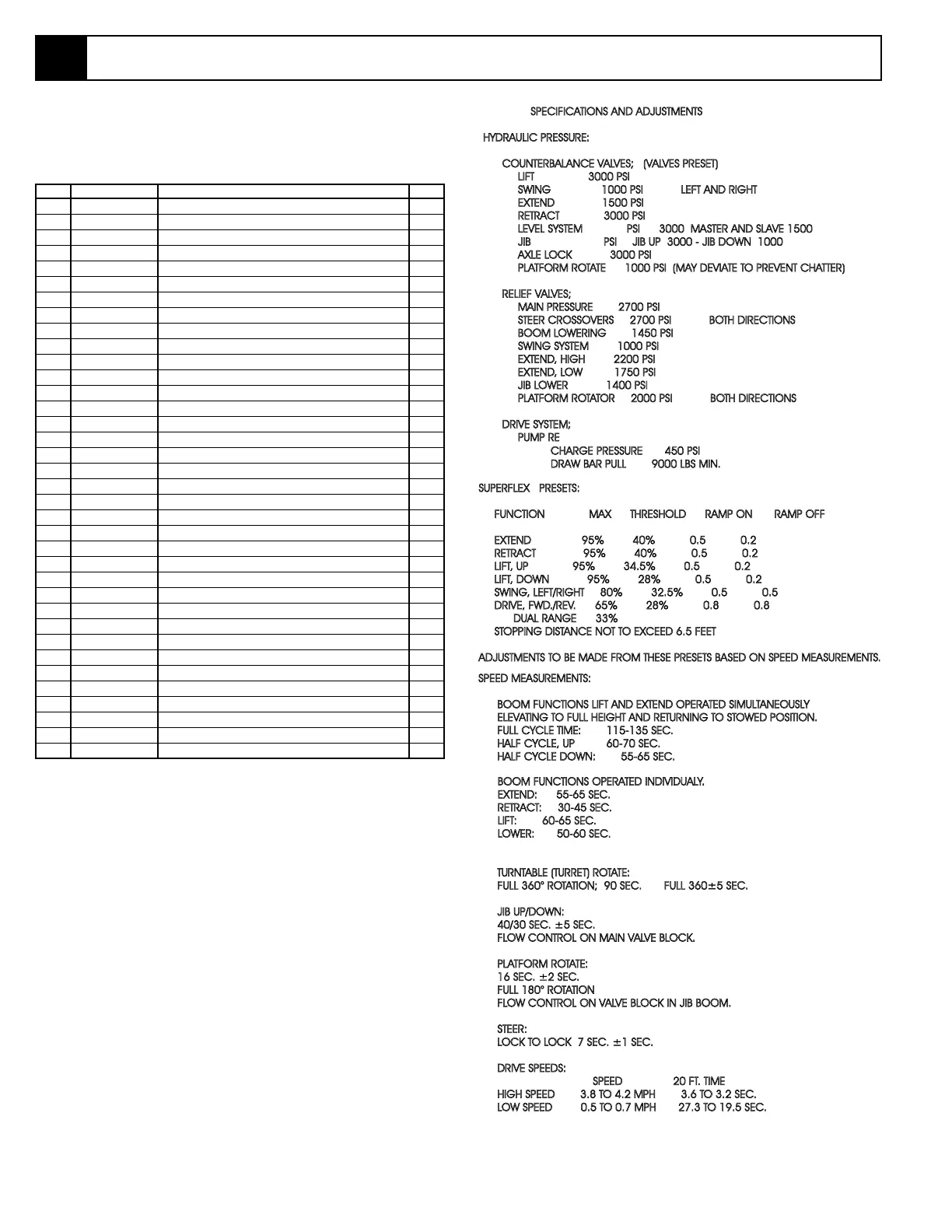

SB60 Work Platform6-2
6.2
FINAL ASSEMBLY, DIESEL SB60
100000-000
ITEM PART DESCRIPTION QTY.
1 100004-001 BASIC ASSEMBLY SB-60 DSL 1
2 100308-000 COVER INSTALLATION 1
3 011252-006 SCREW HHC GRS 1/4-20 UNC X 3/4 7
4 014996-004 WASHER 1/4 SAE FLAT PLTO 7
5 011248-004 NUT HEX ESNA 1/4-20 UNC 11
6 100417-000 PLATFORM (6 FT) 1
7 100016-001 UPPER CONTROL BOX ASSY - DSL 1
11 100024-000 LABEL KIT-DIESEL 1
12 029945-018 LEVEL SENSOR 1
13 100320-099 CONTROL CABLE, 3-12GA FT75
15 100026-004 ELECTRICAL SCHEMATIC REF
16 100027-000 HYDRAULIC SCHEMATIC REF
19 020032-001 FITTING AERO 2033-4-4S 2
20 100436-001 FITTING AERO FF 1898T-0404S 1
22 020032-004 FITTING AERO 2033-8-85 1
27 068820-000 RETAINING STRAP-FOOTSWITCH 2
28 063906-000 FOOT SWITCH CLPR 1
29 064479-000 SWITCH GUARD, FOOT 1
30 011252-012 SCREW HHC 1/4-20 UNC X 1-1/2 4
31 066695-006 SCREW FLAT HD 10-24 UNC X 3/4 2
32 013949-003 WASHER, #10 STAR, EXTERNAL TOOTH 2
33 011250-003 HEX NUT 10-24 UNC 2
35 014693-002 FITTINGS, STR 4MJ-8FJ 1
36 020733-003 FITTING, TEE 8MJ-8FJX-8MJ 1
201 015790-005 CONNECTOR, DEUTSCH PLUG 1
202 015790-003 SOCKET, CONTACT 16-18 29
203 015790-008 SOCKET, CONTACT 14-16 3
204 015790-009 BOOT, DEUTSCH PLUG 1
205 029496-099 CABLE, 2 COND/16 GA. 21
206 100338-011 CONN, 12 GA PIN 1
208 064195-010 BATTERY CABLE ASSY X 10 2
209 064195-019 BATTERY CABLE ASSY X 19 1
210 029470-099 WIRE 12GA RED 8
211 029601-039 CONN RING 10-12 1
212 029617-003 CONN M PUSH 10-12 1
213 029601-005 CONN RING 18-22 GA #10 2
