Upright SL26SL Service Manual
4
of 1
of 1 rating
92 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
6-16

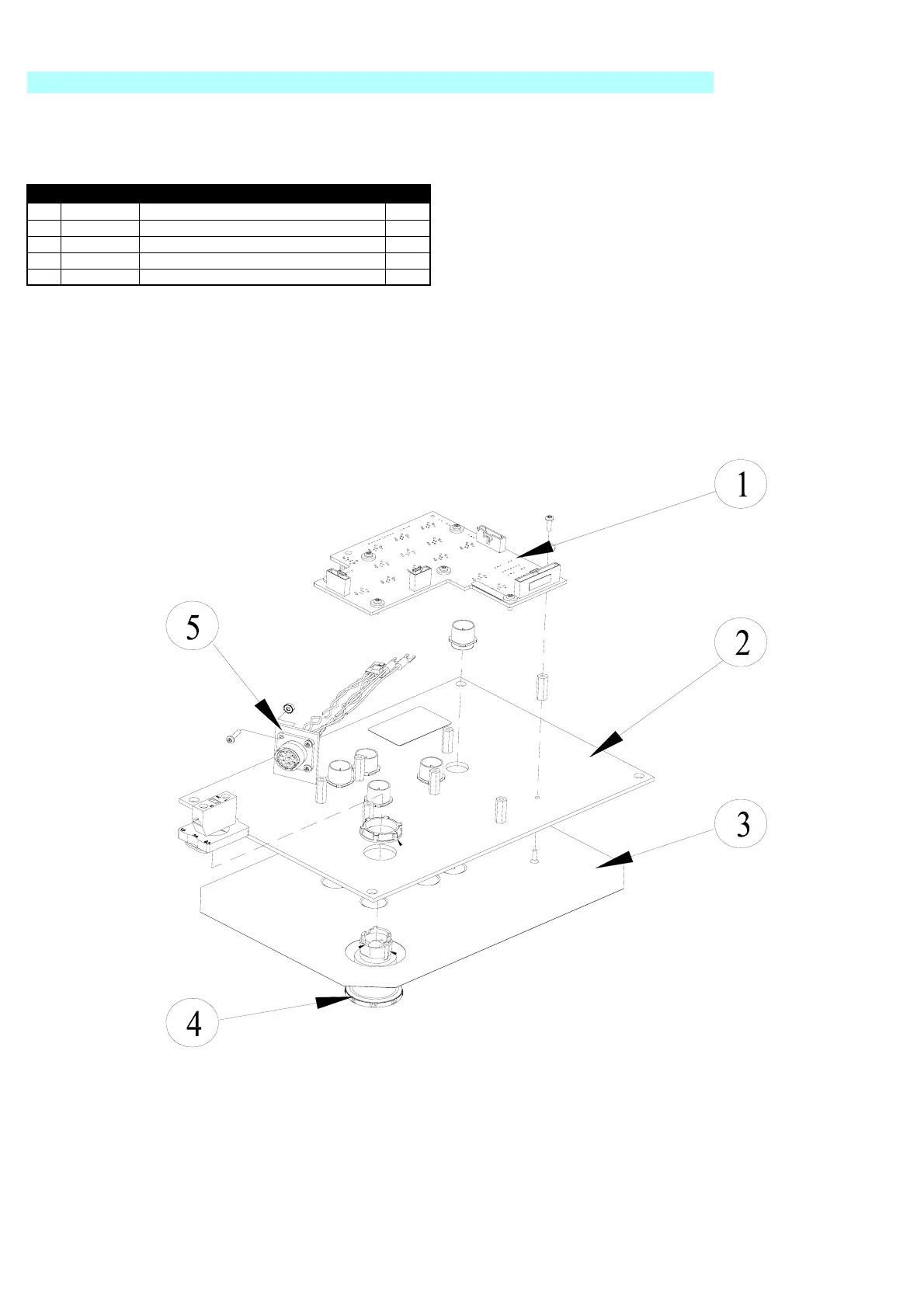

Illustrated Parts Breakdown
- Lower Control Panel Assembly
SL30SL Service & Parts
Lower Contr
ol Panel Assembly
502607-000
Item
Part
Description
QTY
.
1
5
02457-000
CIRCUIT BOARD
1
2
5
02610-000
MOUNTING PLA
TE
1
3
502611-000
DECAL
1
4
5
01867-000
EMERGENCY STOP
1
5
5
01880-000
PLUG
1
79
81
Table of Contents
Table of Contents
10
Introduction
11
General Description
11
Special Limitations
12
Platform Capacity
12
Manual Force
12
Beaufort Scale
12
Lift Overload Alarm
12
Controls and Indicators
13
Pre-Operation Safety Inspection
14
System Function Inspection
15
Elevating the Platform
16
Travel with the Platform Lowered
16
Operation
16
Steering
16
Travel with the Platform Elevated
17
Lowering the Platform
17
Levelling the Platform
17
Emergency Lowering
18
Fold down Guardrails
19
Fold down Procedure
19
Erection Procedure
19
Towing or Winching
20
After Use each Day
20
Hour Meter
20
By Forklift
21
Driving or Winching Onto a Truck or Trailer
21
Preparation for Shipment
21
Lifting by Crane
21
Transporting the Work Platform
21
Maintenance
22
Blocking the Elevating Assembly
22
Battery Maintenance
23
Battery Charging
23
Fault Codes
24
Inspection and Maintenance Schedule
25
Daily Preventative Maintenance Checklist
25
Specifications
26
Section 5
57
Cable Assembly (J1 Harness)
59
Schematic (J1 Harness)
60
Cable Assembly (J2 Harness)
61
Schematic (J2 Harness)
62
Hydraulic Schematic
63
Section 6
65
General Assembly
66
Chassis Assembly
68
Elevating Assembly
70
Platform Assembly
72
Power Module Assembly
76
Engine Assembly
79
Hydraulic Assembly
83
Hydraulic Cylinder Assembly
85
Electrical Assembly
87
Decal Assembly
89
Other manuals for Upright SL26SL
Operator's Manual
104 pages
Service & Parts Manual
104 pages
4
Based on 1 rating
Ask a question
Give review
