Upright SL26SL Service Manual

6-15

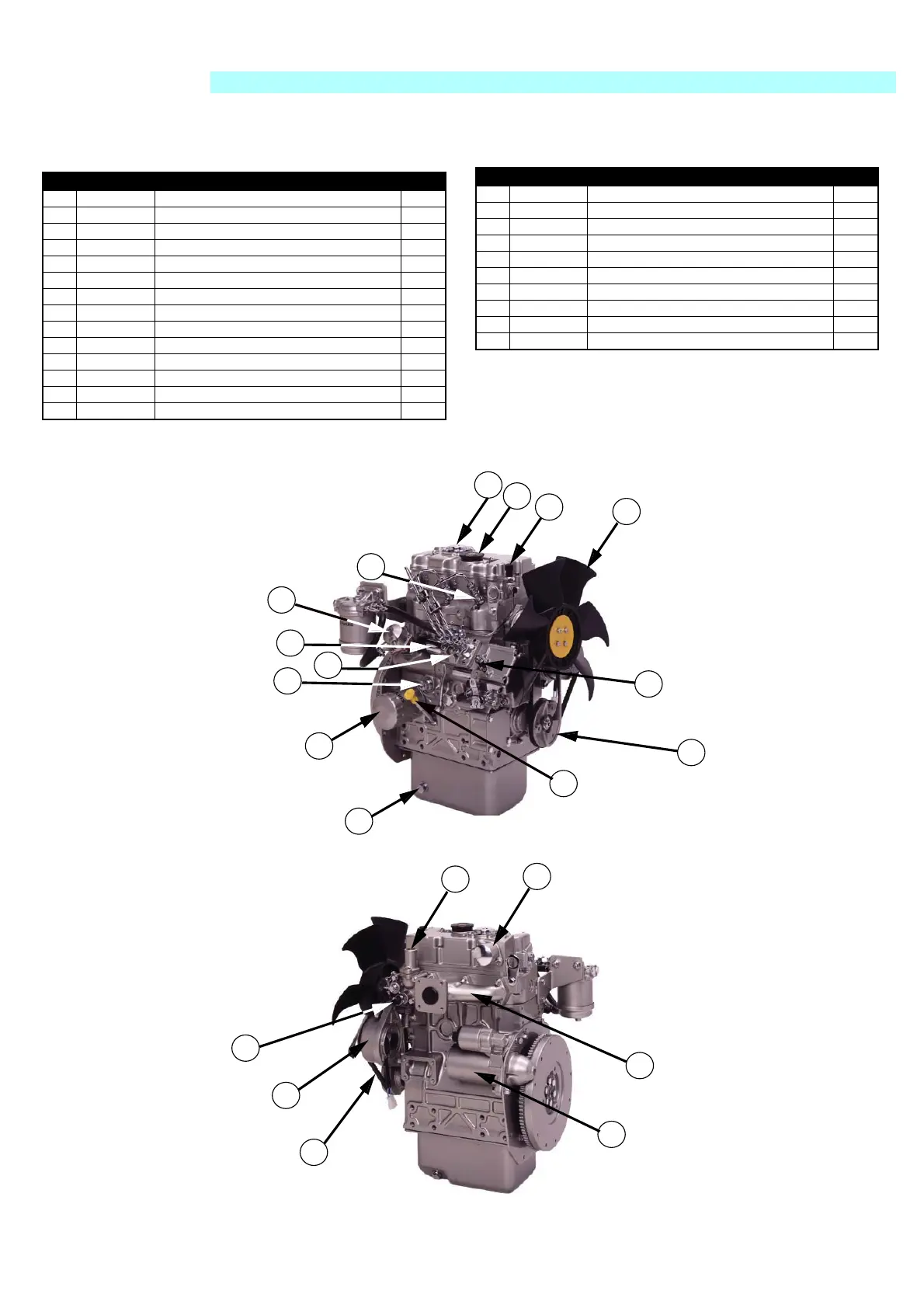

Illustrated Parts Breakdown - Engine Assembly
SL30SL Service & Parts
Engine Assembly
505558-000
Item Part Description QTY.
1 505558-007 PRESSURE SWITCH 1
2 505558-008 FAN 1
3 505558-009 COOLANT TEMP SWITCH 1
4 505558-010 CRANKSHAFT PULLEY 1
5 505558-011 INDUCTION MANIFOLD 1
6 505558-012 COOLANT OUTLET 1
7 505558-013 EXAUST MANIFOLD 1
8 505558-014 STARTER MOTOR 1
9 505558-015 ALTERNATOR 1
10 505558-005 DRIVE BELT 1
11 505558-016 ENGINE BREATHER 1
12 505558-017 COOLANT DRAIN PLUG 1
13 505558-018 LUBRICATING OIL FILTER 1
14 505558-019 LUBRICATING OIL DRAIN PLUG 1
15 505558-020 LUBRICATING OIL FILLER CAP 1
16 505558-021 ATOMISER 1
17 505558-022 MECHANICAL STOP CONTROL 1
18 505558-023 FUEL PUMP 1
19 505558-024 SPEED CONTROL LEVER 1
20 505558-025 FUEL LIFT PUMP 1
21 505558-026 LUBRICATING OIL DIPSTICK 1
22 505558-006 VOLTAGE REGULAOR (NOT SHOWN) 1
23 505558-001 SOLENOID, ELECTRIC STOP (NOT SHOWN) 1
24 505554-000 PUMP (NOT SHOWN) 1
Item Part Description QTY.
14
13
12
18
17
20
6
5
11
15
2
19
4
21
3
9
10
8
7
1
16
