Upright SL26SL Service Manual

6-21

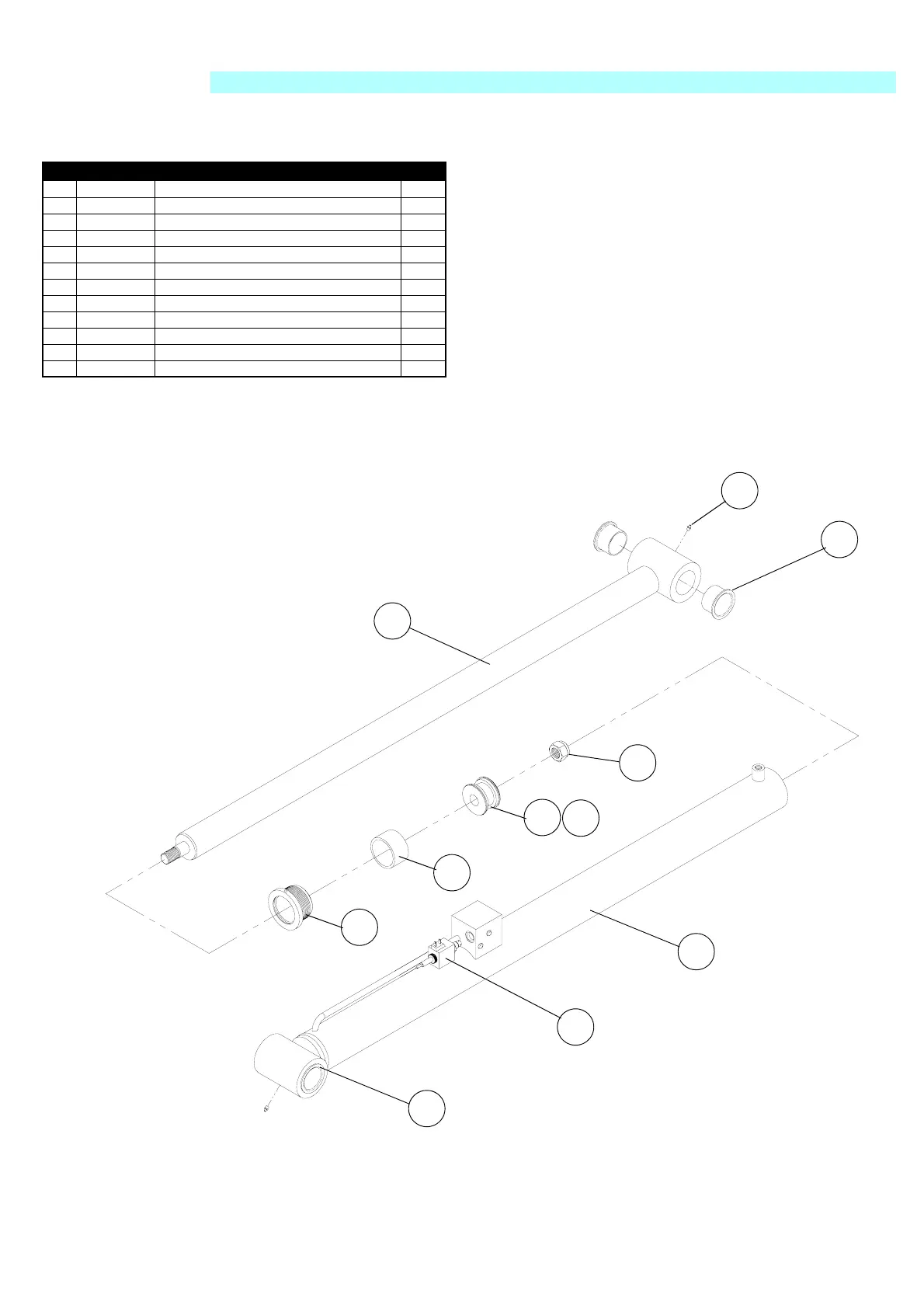

Illustrated Parts Breakdown - Hydraulic Cylinder Assembly (Main Lift)
SL30SL Service & Parts
Hydraulic Cylinder Assembly (Main Lift)
063904-101
Item Part Description QTY.
1 - CYLINDER BODY 1
2 SOLENOID VALVE (EM DOWN) 12V 1
3 - LOCK NUT 1
4 - PISTON HEAD 1
5 063904-010 SEAL KIT 1
6 - SPACING SLEEVE 1
7 - CAP, BODY END 1
8-CYLINDER ROD 1
9 062649-010 FLANGED BUSHING 2
10 058819-000 M6 GREASE NIPPLE 2
11 - CYLINDER BODY 1
12 062649-020 BUSHING 2
1
2
3
45
6
7
8
9
10
11
