Upright SL26SL Service Manual

6-14

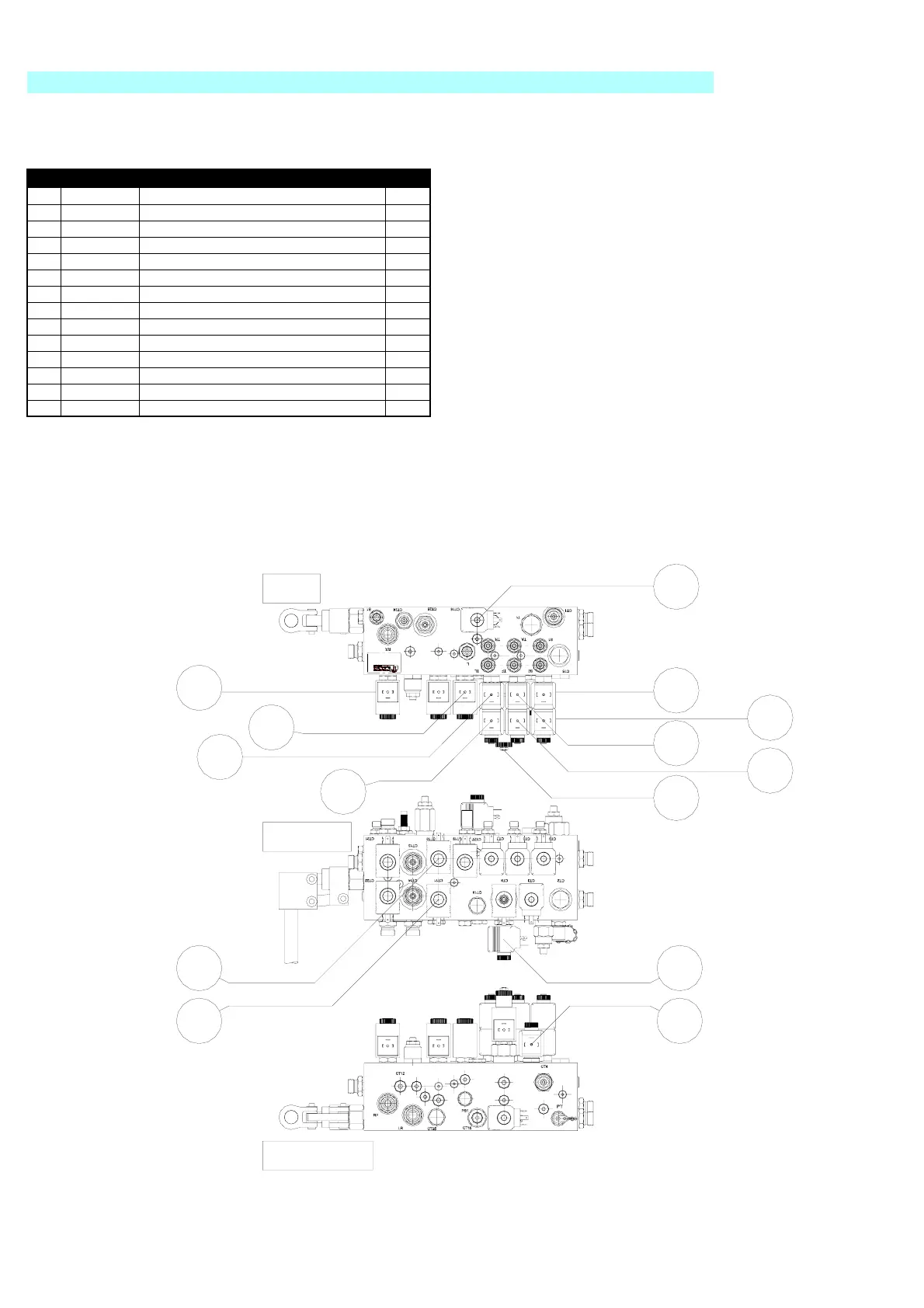

Illustrated Parts Breakdown - Hydraulic Valve Block
SL30SL Service & Parts
Hydraulic Valve Block
505555-000
Item Part Description QTY.
1 505801-000 VALVE, LIFT 1
2 505802-000 VALVE, STEER RIGHT 1
3 505803-000 VALVE, STEER LEFT 1
4 505804-000 VALVE, TILT AFT 1
5 505805-000 VALVE, TILT FORWARD 1
6 505806-000 VALVE, PROPORTIONAL 1
7 505807-000 VALVE, LIFT DUMP 1
8 505808-000 VALVE, STEER DUMP 1
9 505809-000 VALVE, DRIVE : REVERSE 1
10 505810-000 VALVE, DRIVE : FORWARD 1
11 505811-000 VALVE, TILT LEFT 1
12 505812-000 VALVE, TILT RIGHT 1
13 505813-000 VALVE, CUSHION 1
14 505814-000 VALVE, HIGH SPEED SERIES / PARA 1
FRONT
BOTTOM
TOP
CUSTOMER NUMBER
PART NUMBER
DATE CODE
1
2
3
4
5
6
7
89
14
13
12
11
10
