Upright SL26SL Service Manual

6-13

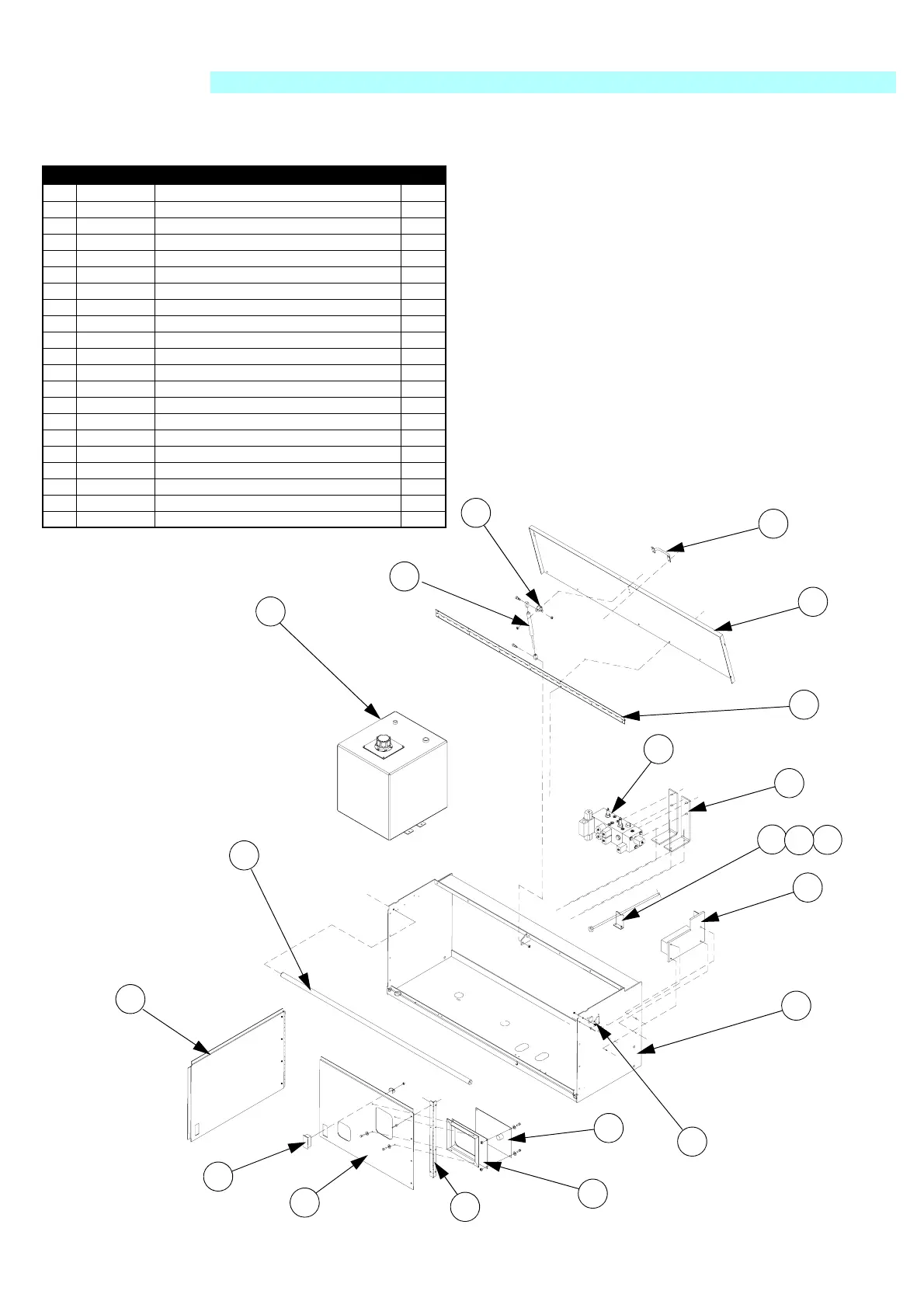

Illustrated Parts Breakdown - Control Module Assembly
SL30SL Service & Parts
2
3
4
5
6
7
8
9
10
11
12
13
14
16
17
18
19
20
1
15
21
Control Module Assembly
505505-000
Item Part Description QTY.
1 064721-001 CONTROL MODULE WELDMENT 1
2 064732-000 COVER, CONTROL MODULE 1
3 064735-002 DOOR, RIGHT HAND 1
4 064734-000 DOOR, LEFT HAND 1
5 064730-000 HINGE, DOOR 2
6 064731-000 HINGE, MODULE COVER 1
7 064725-000 STIFFENER BAR 1
8 503935-000 LCP MOUNTING BRACKET 1
9 502607-000 LOWER CONTROL PANEL 1
10 505555-000 MANIFOLD BLOCK 1
11 503994-000 MOUNTING BRACKET, MANIFOLD 2
12 064642-000 TANK, HYDRAULIC OIL 1
13 063650-012 GAS STRUT 1
14 025427-002 HANDLE 1
15 502608-000 ECU 1
16 500465-001 DOOR LATCH 2
17 064378-001 EMERGENCY DOWN BRACKET 1
18 067659-001 EMERGENCY DOWN CABLE 1
19 067877-000 EMERGENCY DOWN COUPLER 1
20 067902-000 BRACKET, GAS STRUT 1
21 503684-000 LATCH, MODULE COVER 1
