DS1093-520 24
3D Noise Reduction: this is used to select the method to be employed by the camera to reduce multi-
dimensional noise reduction is poor light conditions; there are three available states: Auto, Manual and Off.
Level: the 3D noise reduction level.
WDR (Wide Dynamic Range): this activates the dynamic compensation function between light and dark areas to
increase image quality.
AGC (Automatic Gain Control): this activates the automatic gain compensation function in poor light condition;
four states are available: High, Low, Middle and OFF.
White Balance: three modes are available: Auto, Manual and Internal.
Shutter: this is used set the camera diaphragm opening mode, two modes are available: Auto and Manual.
Exposure Time: this is used to adjust the image exposure time if the “Shutter” option is selected in manual
mode.
Defog Mode: this is used to process image mode by the camera to attenuate image deterioration in presence of
mist or rain (used for outdoor shots)
NOTE:
At the moment this function is only supported for IP camera set as Private Protocol.

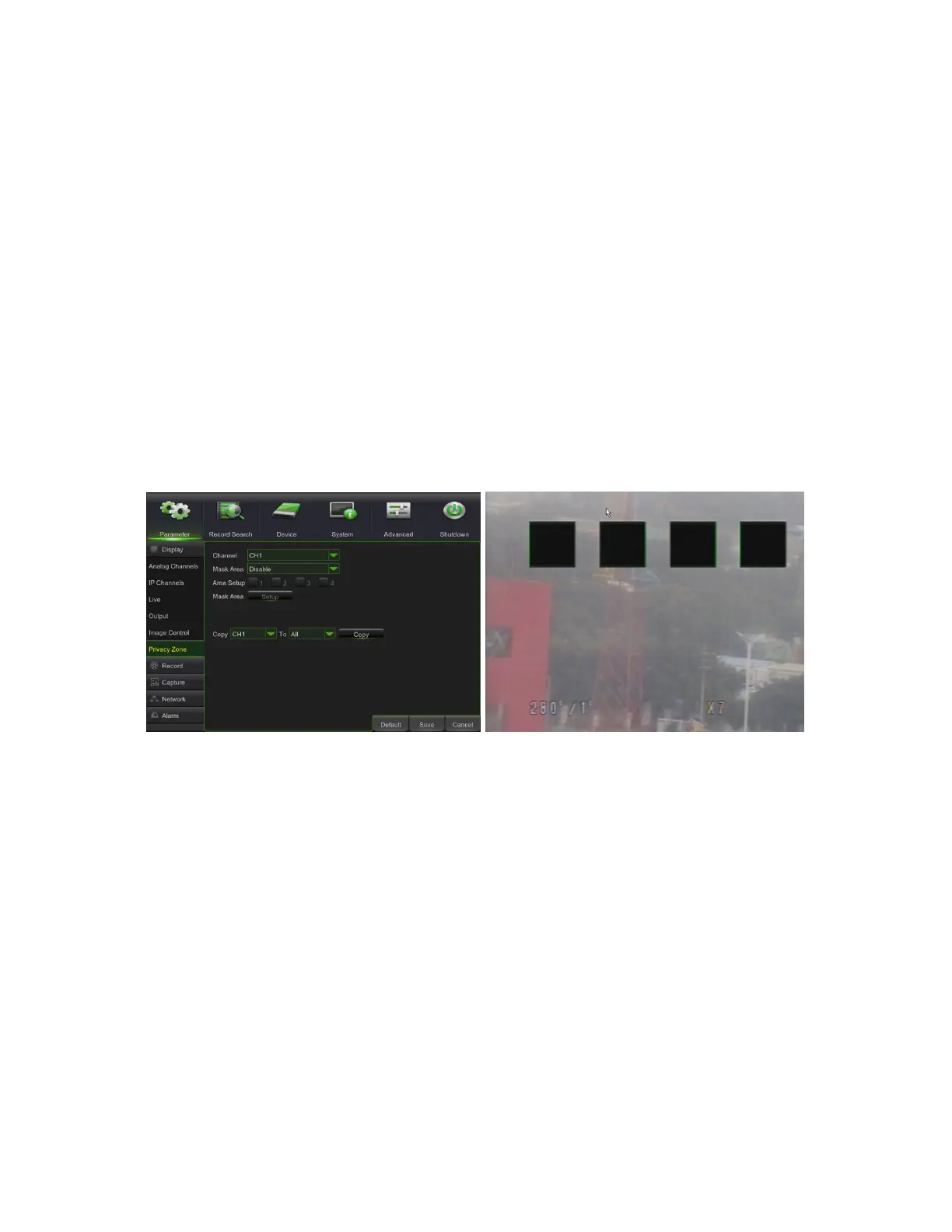

3.4.1.6 Privacy Zone
The function allows you setup privacy zone parameters to hide the contents of one or more areas of the screen. Each
channel could set up to four privacy zones. Please follow below steps to set:
1. Select the Channel number
2. Enable the Mask Area
3. Select the area no (Area 1 ~ Area 4);
4. Click [Setup] to adjust position and size of mask area;
5. After finishing position adjust, click right key of mouse to return back [Privacy zone] interface;
6. Click [Save] to save the above setting.
