DS1093-520 38
3.4.5 ALARM
This section is dedicated to the configuration parameters used by the DVR for recording and notifying alarms.
3.4.5.1 Motion

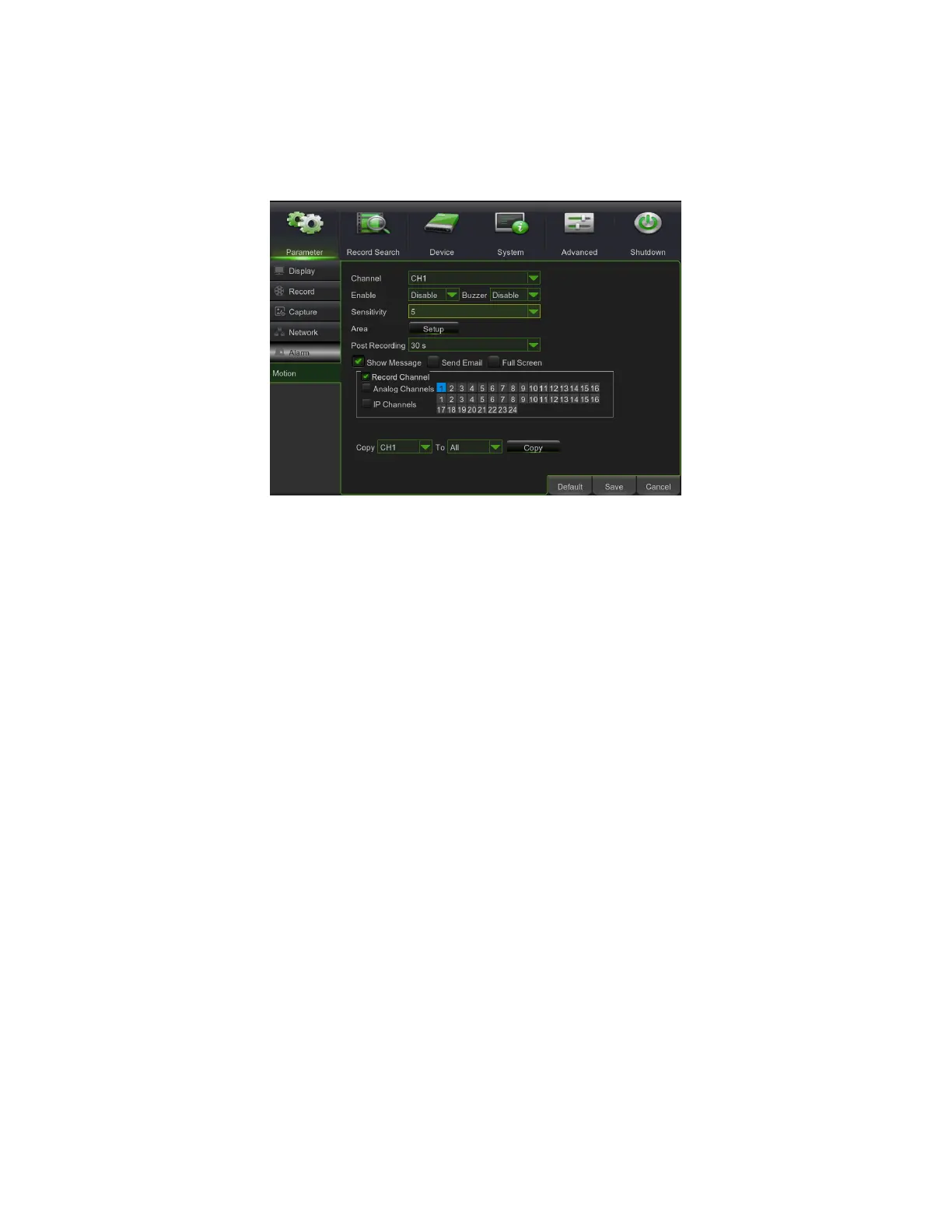

Select Motion in the side menu to open a page where to define the methods and actions to be taken in case of motion
alarm detection.
• Channel: this is used to select the channel with which the motion detection function is associated.
• Enable: this is used to enable/exclude the motion detection function for the selected channel.
• Buzzer: you can set if the buzzer will sound and how long when motion is detected (Disable, 10sec, 20sec, 40sec,
60sec);
• Sensitivity: allow you to set sensitivity level of motion detection from higher to low with 8 being the most sensitive.
• Area: Click the [Setup] button to enter into area setup interface shown as follow.
• Post Recording: you can set how long alarm record will last when alarm ends (10sec, 30sec, 1min, 2min, 5min).
• Show Message: You can set show the icon on the screen when motion alarm is detected. About icons type please
refer to Section 4.
• Send Email: this is used to send the alarm images to the configured email addresses (for more information, see
paragraph 3.4.4.2 - “Email set”).
• Full screen: you can set if the video is displayed in full screen mode when Motion is detected
• Record Channel: this is used to select the channels to be recorded following the alarm detected by the DRV from the
list shown.
• Copy: allow you copy current channel parameters to any other channel or all channels.
