SETUP MENU
TPS Setup = Clicking this will take you to the TPS Setup menu, which shows
the idle and WOT settings as well as the current voltage of the TPS. Clicking
once will open the menu. Clicking AutoSet TPS will take you through the steps
to calibrate your throttle position sensor settings. You can also manually adjust
these settings by clicking Adjust Idle or Adjust WOT. Reset TPS will erase the
saved TPS data from the controller, reverting back to the TPS voltages saved in
the loaded tune file. See page 9 for more details.
Speedo Out = Provides configuration options for the speedometer output. See
page 20 for more details.
Axle Ratio = Allows you to input your axle ratio, which improves speed display
accuracy in the home screen.
Tire Diam = Allows you to input your tire diameter, which improves speed
display accuracy in the home screen.
Engine RPM In = Allows the adjustment of the engine RPM input configuration.
This includes pulses per revolution and type of RPM sensor or signal. Turning
the knob allows adjustment of pulse rate, while pressing the knob will bring up a
menu of options including preset pulse rates, signal types, and the exit option
(which also saves these settings).
Clr Axle&Tire: Resets the axle ratio and tire diameter settings back to defaults
from the currently loaded tune.
TUNE MENU
Shift Points = Sets the RPM at which shifts occur for all shifts or each individual
shift. Once you’ve chosen a shift to adjust, you will be presented with a menu
showing 10% throttle, 40% throttle, and Wide Open Throttle. Under each is
shown shift point RPM. You can adjust each throttle percentage individually.

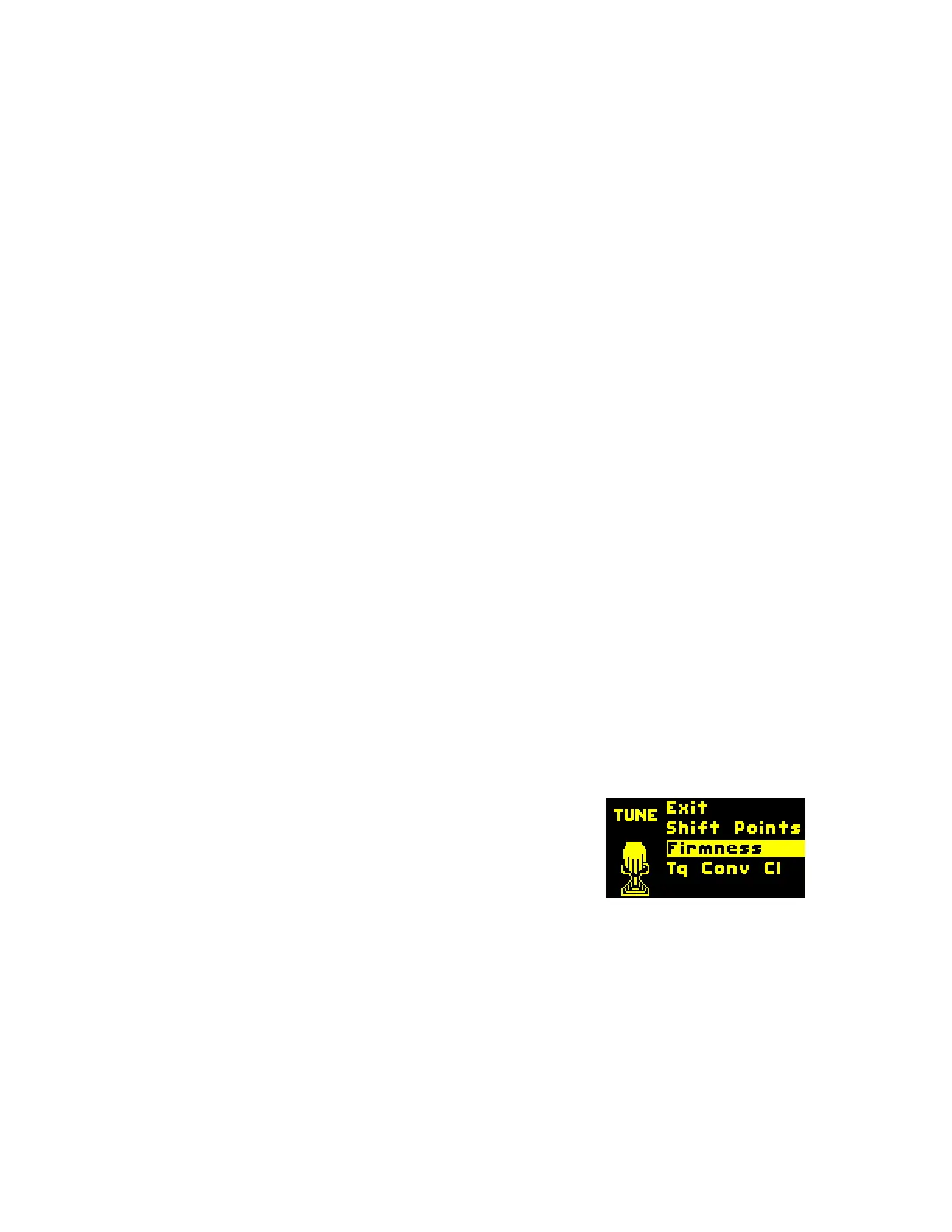

Firmness = Set shift firmness for all shifts or each
individual shift. Once you’ve chosen a shift to adjust,
you will be presented with a menu showing 10%
throttle, 40% throttle, and Wide Open Throttle. Under
each is shown a number representing firmness. You
can adjust each throttle percentage individually.
Tq Conv Cl = This takes you to the torque converter clutch menu, allowing you
to adjust aspects of the TCC. This includes cruise gear, minimum RPM, and
WOT gear.
