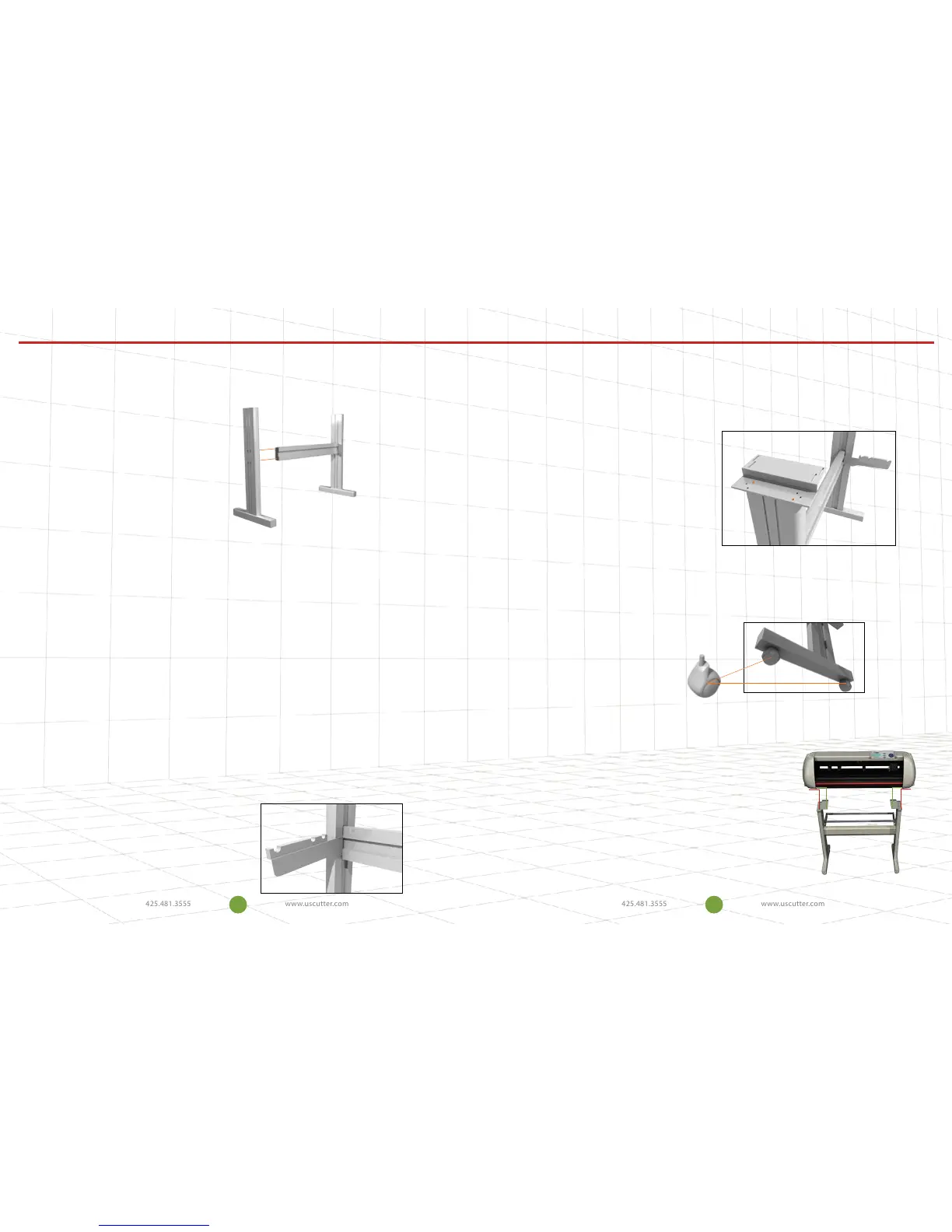

Assembling the stand Assembling the stand
Step 2.
Attach the cross piece (D) to the legs (F
This is where making use of a chair or
bench to hold the cross piece in place while
up the leg? That’s where you’ll attach the
cross piece.
We’ve got the rounded edge and sharp edge situation again? Which way do I
orient the crossbeam?
It actually doesn’t matter, but the rounded edge looks a little more
aesthetic, so we like to make that the front-facing side.
Here’s the tricky part: You need to insert the #1 screws through both
holes in the stand legs (the outside and the inside), so the screw will be
recessed while you attach it to the cross piece. The leg is hollow and if
your screw falls into the hole, turn the leg upside down so your screw
falls out and you can try again.
Step 3.
Now let’s mount the roller brackets (I) to the legs (F). They’ll attach at the
crosspiece and will create a place for the rollers to sit.
NOTE: If your roller brackets arrived in four pieces instead of two, simply
attach the black plastic roller guides to the metal brackets with those extra six
screws (the smallest ones).
legs. The metal brackets have a “lip” which
the roller guide sits on. When you attach the
bracket, make sure the lip faces outward like
this:
H
F
Step 4.
Attach the mounting brackets (G) to the top of the legs (F). This is where you
will mount your SC Cutter. Almost done!!
the mounting brackets to the legs. The brack-
ets have a staircase-like shape. you will screw
the lower “stair” to the standleg and will attach
your SC Cutter to the upper “stair” in a later
step.
Since you’re only using two screws, position
them so that if you drew a line between them it could make a diagonal line.
6 7
Step 5.
Attach the wheels (C). You won’t need any screws for this because the wheels
have screws already attached. Simply
screw them into the bottom of the
stand feet(A)., two wheels for each
foot.
C
A
C
Step 6.
Mount the SC Cutter (B) to the mounting brackets (G) on the stand. Lift the SC
Cutter onto the brackets so that the plastic end pieces rest on
secure the cutter to the brackets. The upper “stair” will appear
to have many more slots than you will need but just use the
holes that line up with the slots.
Remember to take
the four rubber feet
o from the bottom
of the SC Cutter
G
B
F
D
F
G
