3.1 DEPOLOX 3 plus - Operation
3.1.1 General Description
The DEPOLOX 3 plus module is a microprocessor-controlled electronic
amplifier for the measurement of Disinfectants, and/or for pH value or
fluoride in water.
The built-in RS485 interface can be used to transfer the measured values
and operating modes to a PC or SCADA system.
3.1.2 Display and Keypad

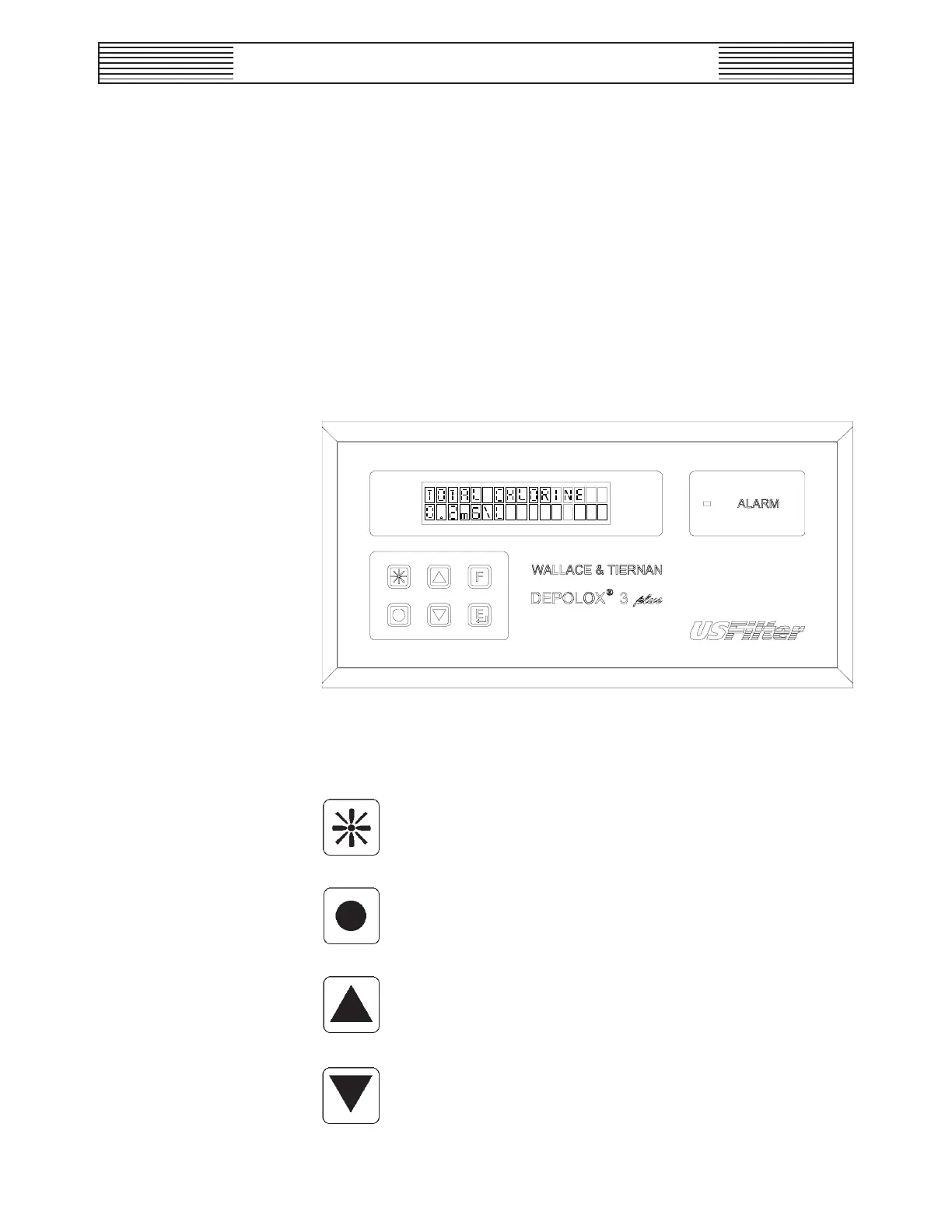

Figure 3.1 - Display and Keypad
3.1.2.1 Keypad Functions
ACKNOWLEDGE ALARM - De-energize the alarm relays
(this does not reset the alarm message)
ESCAPE - Terminate input without saving new value. Jump
back to the menu title and return to basic display by pressing
the key once more.
UP ARROW - Skip one level upwards, increase value or dis-
play previous option.
DOWN ARROW - Skip one level downwards, reduce value
or display next option.
