19

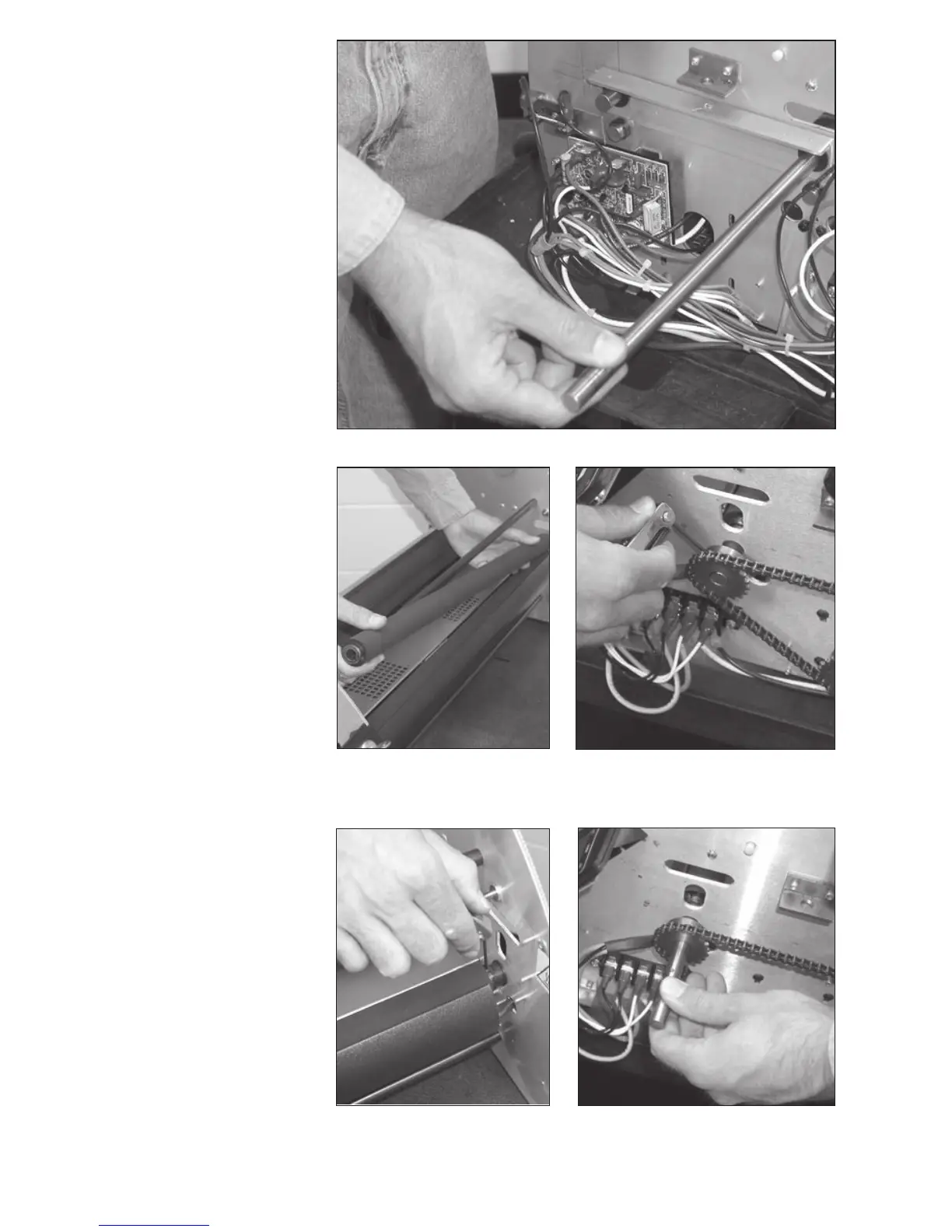

STEP 8:
Loosen the set screws of
the lower roller sprockets
(laminating roller shown)
Photo 19-3.
STEP 9:
Loosen the Allen head set
screws on the left and right
ends of the lower rubber
rollers. (Lower l
aminating
roller shown.) Photo 19-4.
STEP 10:
Slide the roll shaft out of the rubber
roller and the roll sprocket. (laminat-
ing roller shown.) Photo 19-5.
NOTE: The chain can now be
removed without loosening
the motor mounting screws. Photo
20-1.(next page)
Photo 19-2
Photo 19-3
Photo 19-4
Photo 19-5
STEP 7:
To remove the upper roller, slide
the roll shaft out of the roller and
then lift the top rubber rollers from
the laminator (top laminating roller
shown). Photos 19-1 and 19-2
Photo 19-1
