USTC 2500 jbt - PERFORMANCE DATA; WEIGHTS

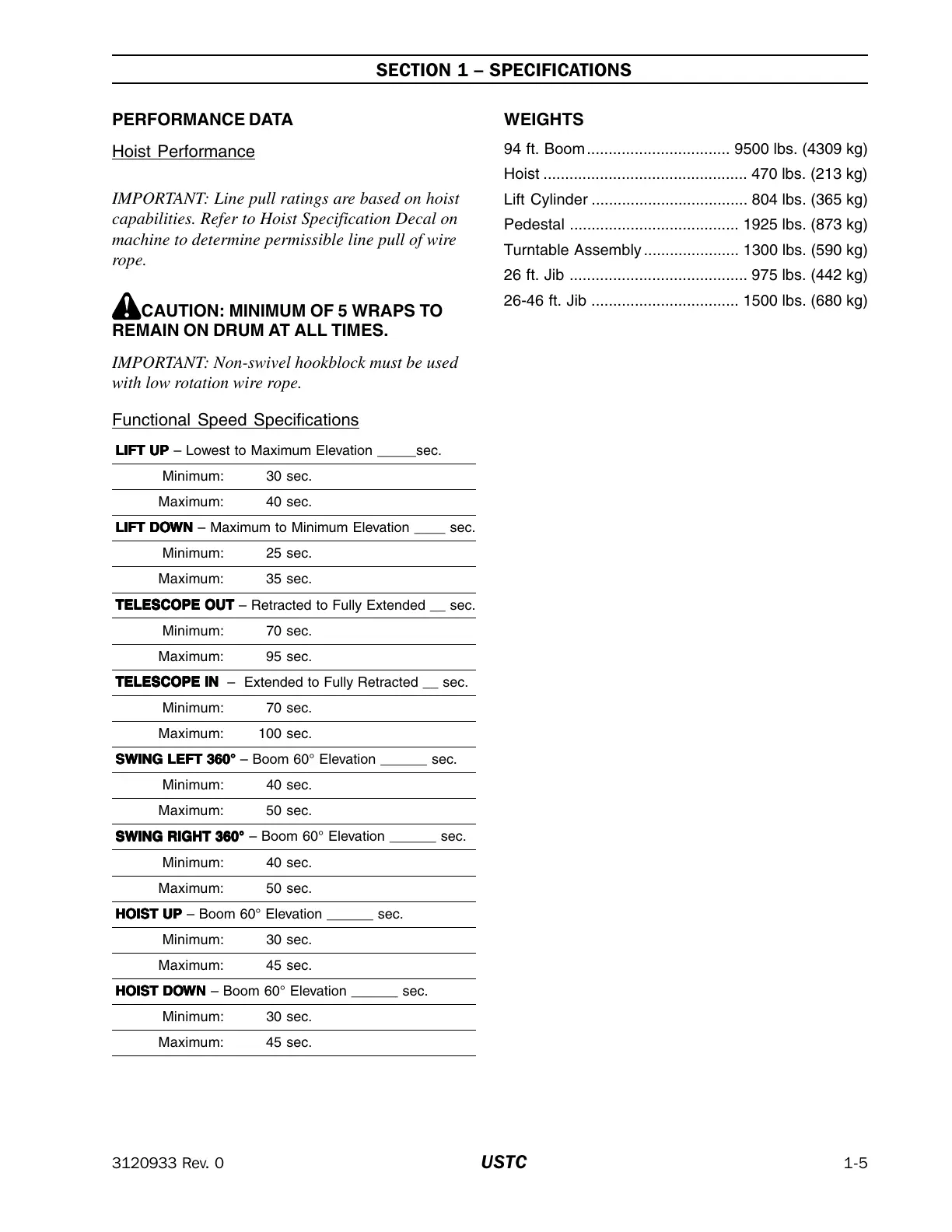

SECTION 1 – SPECIFICATIONS
3120933 Rev. 0 USTC 1-5
PERFORMANCE DATA
Hoist Performance
IMPORTANT: Line pull ratings are based on hoist
capabilities. Refer to Hoist Specification Decal on
machine to determine permissible line pull of wire
rope.
CAUTION: MINIMUM OF 5 WRAPS TO
REMAIN ON DRUM AT ALL TIMES.
IMPORTANT: Non-swivel hookblock must be used
with low rotation wire rope.
Functional Speed Specifications
LIFT UPLIFT UP
LIFT UPLIFT UP
LIFT UP – Lowest to Maximum Elevation _____sec.
Minimum: 30 sec.
Maximum: 40 sec.
LIFT DOLIFT DO
LIFT DOLIFT DO
LIFT DO
WNWN
WNWN
WN – Maximum to Minimum Elevation ____ sec.
Minimum: 25 sec.
Maximum: 35 sec.
TELESCOPE OUT TELESCOPE OUT
TELESCOPE OUT TELESCOPE OUT
TELESCOPE OUT – Retracted to Fully Extended __ sec.
Minimum: 70 sec.
Maximum: 95 sec.
TELESCOPE IN TELESCOPE IN
TELESCOPE IN TELESCOPE IN
TELESCOPE IN – Extended to Fully Retracted __ sec.
Minimum: 70 sec.
Maximum: 100 sec.
SWING LEFT 360°SWING LEFT 360°
SWING LEFT 360°SWING LEFT 360°
SWING LEFT 360° – Boom 60° Elevation ______ sec.
Minimum: 40 sec.
Maximum: 50 sec.
SWING RIGHT 360°SWING RIGHT 360°
SWING RIGHT 360°SWING RIGHT 360°
SWING RIGHT 360° – Boom 60° Elevation ______ sec.
Minimum: 40 sec.
Maximum: 50 sec.
HOIST UPHOIST UP
HOIST UPHOIST UP
HOIST UP – Boom 60° Elevation ______ sec.
Minimum: 30 sec.
Maximum: 45 sec.
HOIST DOHOIST DO
HOIST DOHOIST DO
HOIST DO
WNWN
WNWN
WN – Boom 60° Elevation ______ sec.
Minimum: 30 sec.
Maximum: 45 sec.
WEIGHTS
94 ft. Boom................................. 9500 lbs. (4309 kg)
Hoist ............................................... 470 lbs. (213 kg)
Lift Cylinder .................................... 804 lbs. (365 kg)
Pedestal ....................................... 1925 lbs. (873 kg)
Turntable Assembly ...................... 1300 lbs. (590 kg)
26 ft. Jib ......................................... 975 lbs. (442 kg)
26-46 ft. Jib .................................. 1500 lbs. (680 kg)
