SECTION 2 – INSPECTION
2-2 USTC January 15, 2001

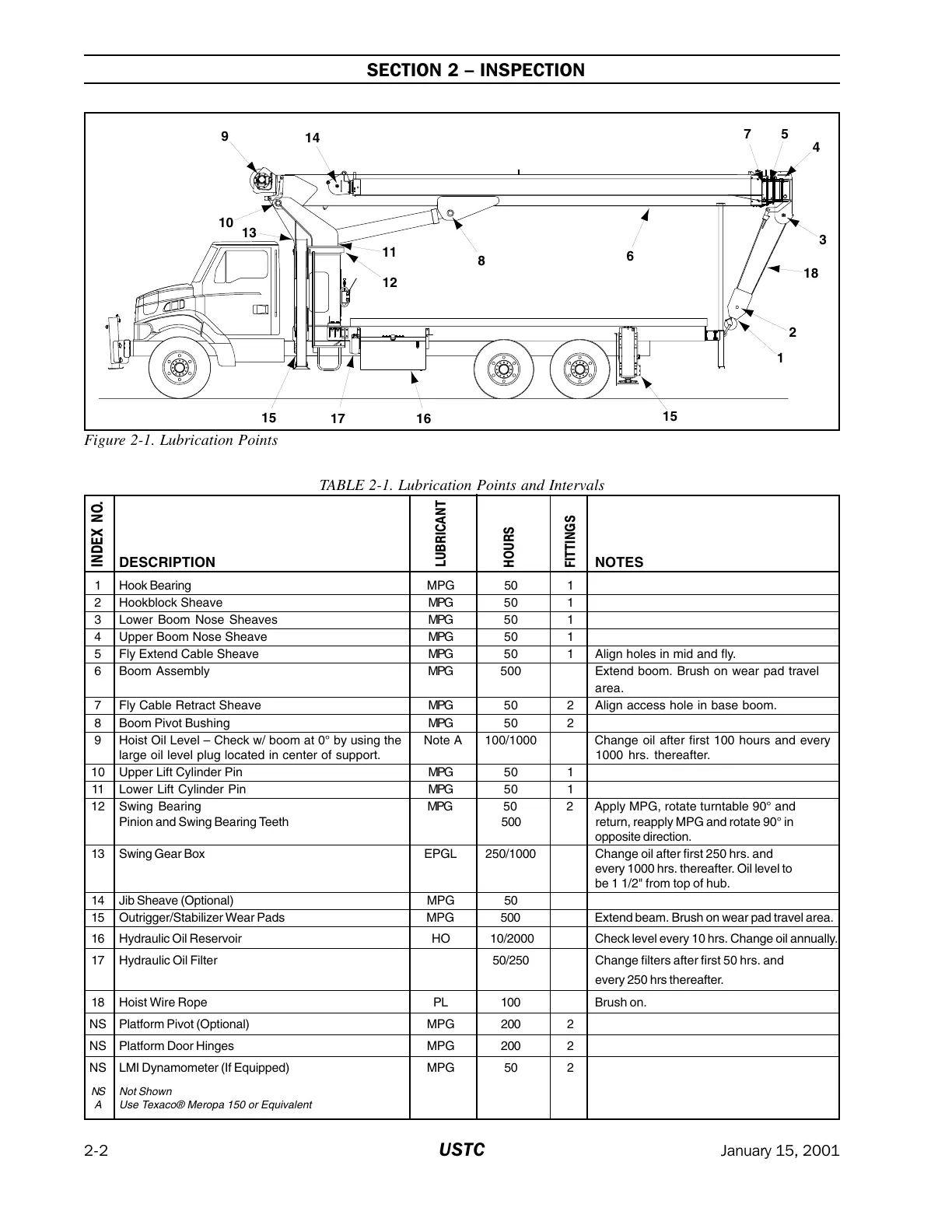

Figure 2-1. Lubrication Points
2
1
18
3
4
6
57
12
9
13
11
10
15
15
17 16
8
14
DESCRIPTION NOTES
1 Hook Bearing MPG 50 1
2 Hookblock Sheave MPG 50 1
3 Lower Boom Nose Sheaves MPG 50 1
4 Upper Boom Nose Sheave MPG 50 1
5 Fly Extend Cable Sheave MPG 50 1 Align holes in mid and fly.
6 Boom Assembly MPG 500 Extend boom. Brush on wear pad travel
area.
7 Fly Cable Retract Sheave MPG 50 2 Align access hole in base boom.
8 Boom Pivot Bushing MPG 50 2
9 Hoist Oil Level – Check w/ boom at 0° by using the Note A 100/1000 Change oil after first 100 hours and every
large oil level plug located in center of support. 1000 hrs. thereafter.
10 Upper Lift Cylinder Pin MPG 50 1
11 Lower Lift Cylinder Pin MPG 50 1
12 Swing Bearing MPG 50 2 Apply MPG, rotate turntable 90° and
Pinion and Swing Bearing Teeth 500 return, reapply MPG and rotate 90° in
opposite direction.
13 Swing Gear Box EPGL 250/1000 Change oil after first 250 hrs. and
every 1000 hrs. thereafter. Oil level to
be 1 1/2" from top of hub.
14 Jib Sheave (Optional) MPG 50
15 Outrigger/Stabilizer Wear Pads MPG 500 Extend beam. Brush on wear pad travel area.
16 Hydraulic Oil Reservoir HO 10/2000 Check level every 10 hrs. Change oil annually.
17 Hydraulic Oil Filter 50/250 Change filters after first 50 hrs. and
every 250 hrs thereafter.
18 Hoist Wire Rope PL 100 Brush on.
NS Platform Pivot (Optional) MPG 200 2
NS Platform Door Hinges MPG 200 2
NS LMI Dynamometer (If Equipped) MPG 50 2
NS Not Shown
A Use Texaco® Meropa 150 or Equivalent
INDEX NO.
FITTINGS
HOURS
LUBRICANT
TABLE 2-1. Lubrication Points and Intervals
