SECTION 4 – BOOM
3120933 Rev. 0 USTC 4-11
Lift Cylinder
Rod Keeper
Rod Keeper
Rod Keeper
Pivot Pin
Sleeve
Boom Pivot Pin
Lift Cylinder Pin
Lift Cylinder Pin

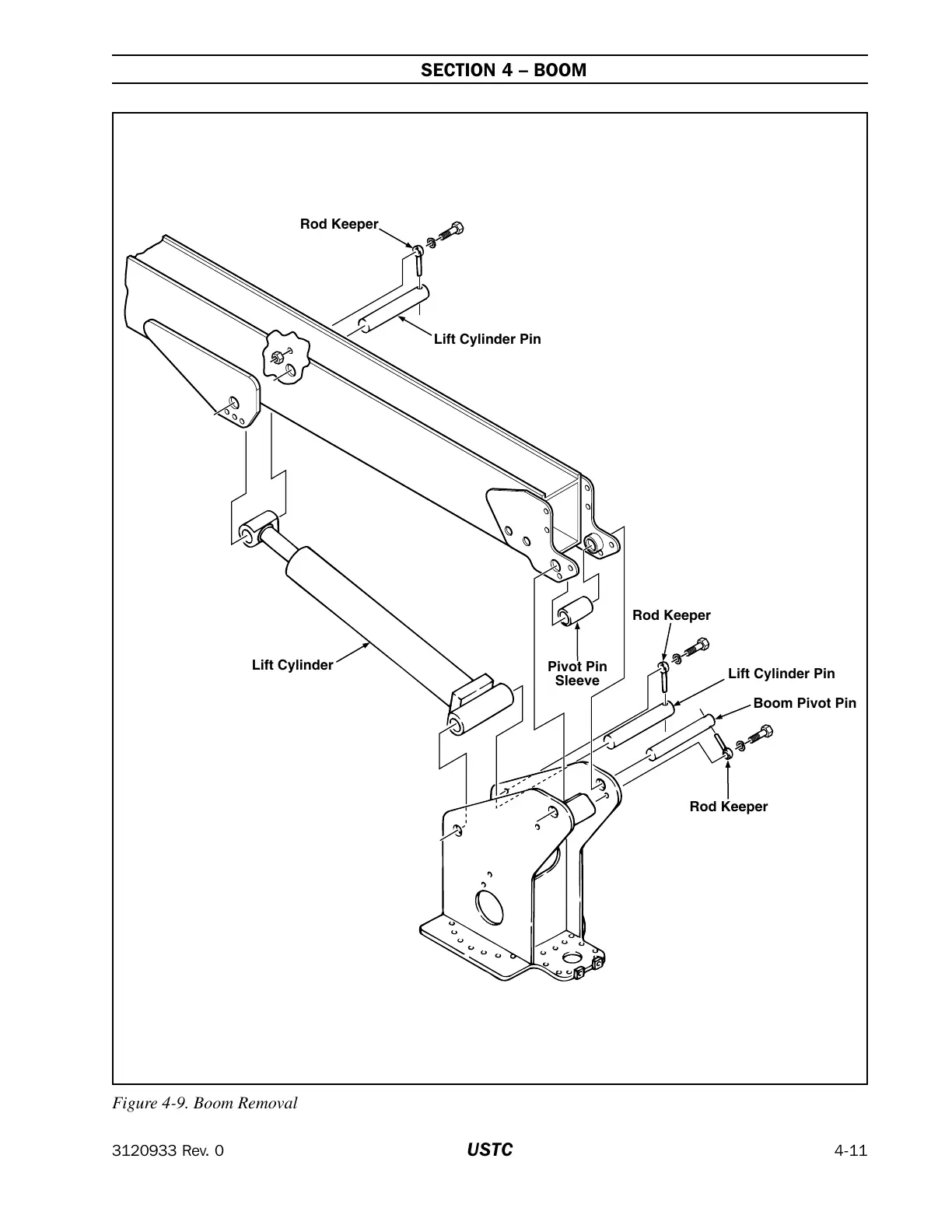

Figure 4-9. Boom Removal
