Utax CLP 3521

2HL/2HM/2HN
1-5-15
1-5-5 Drum section
(1) Detaching and refitting the drum unit
Procedure
1. Remove the intermediate transfer unit (See
page 1-5-17).
2. Remove the drum unit (M,C,Y,K).
3. Check or replace the drum unit and refit all
the removed parts.

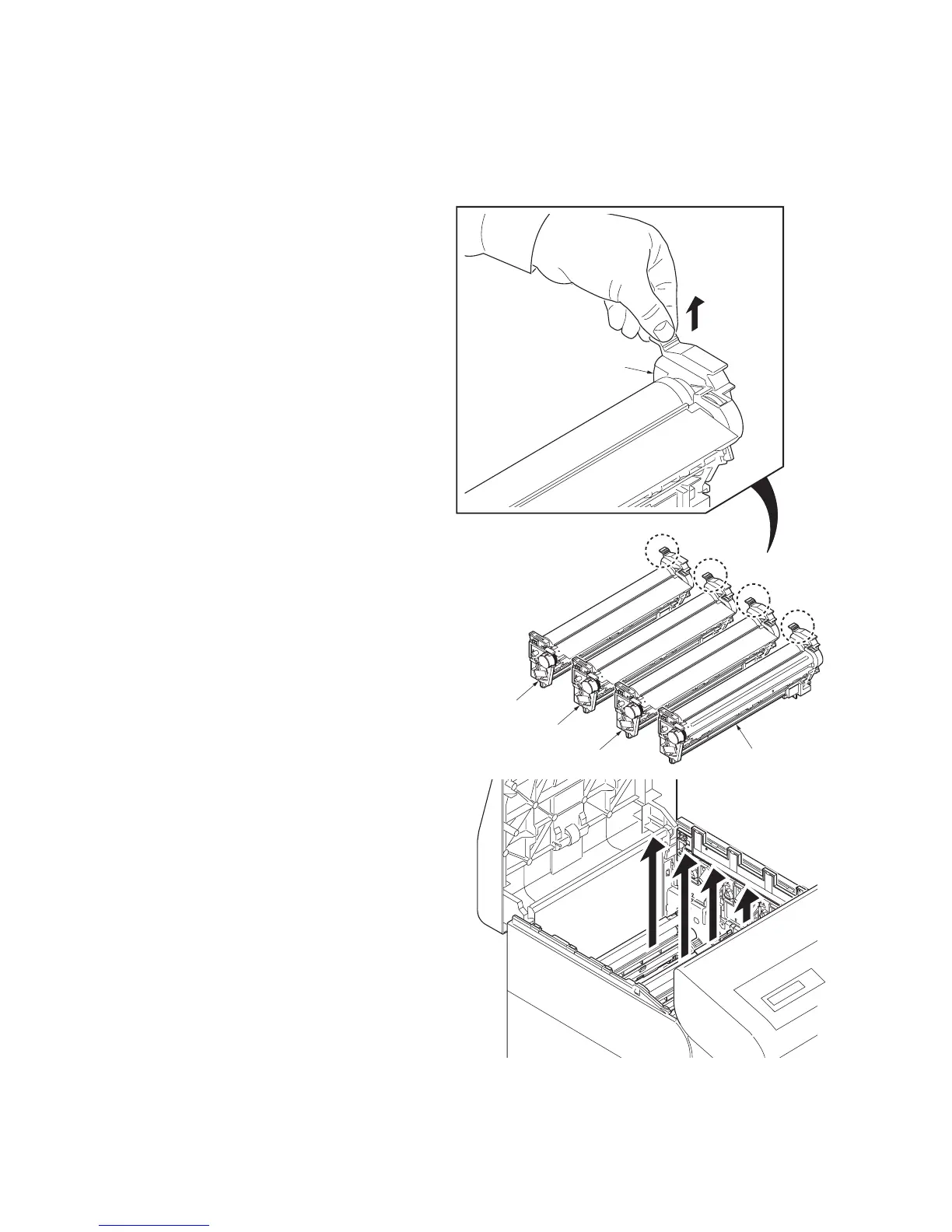

Figure 1-5-16
Drum unit K
Drum unit M
Drum unit
Drum unit Y
Drum unit C
