Utax CLP 3521

2HL/2HM/2HN
1-5-17
1-5-6 Transfer/separation section
(1) Detaching and refitting the intermediate transfer unit
Procedure
1. Open the top cover.
2. Remove the all toner containers (M,C,Y,K).

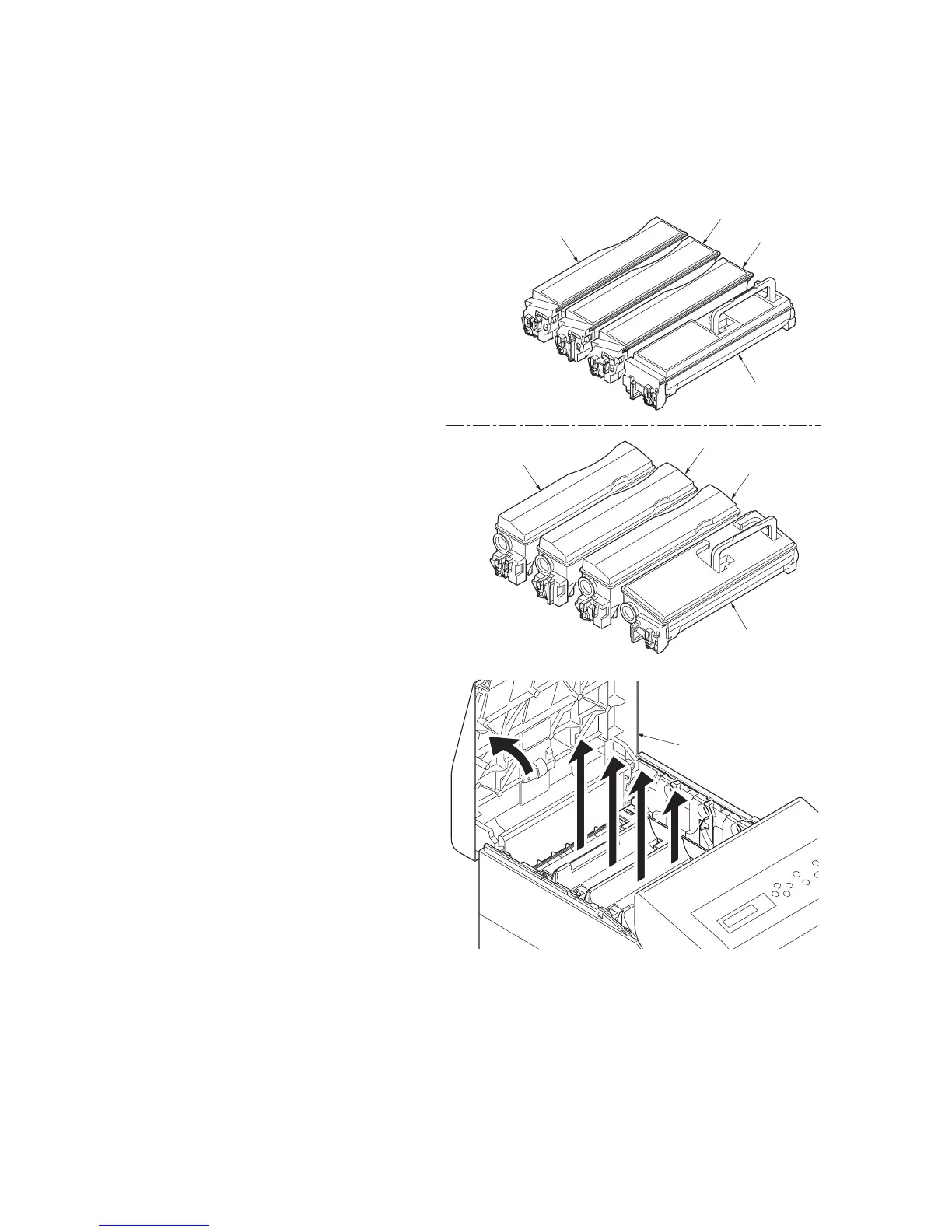

Figure 1-5-18
Top cover
Toner container K
Toner container K
Toner container Y
Toner container Y
Toner container C
Toner container C
Toner container M
Toner container M
26/28 ppm (500-sheet) model
21/23 ppm (500-sheet) model
21/23 ppm (250-sheet) model
