2HL/2HM/2HN
1-5-22

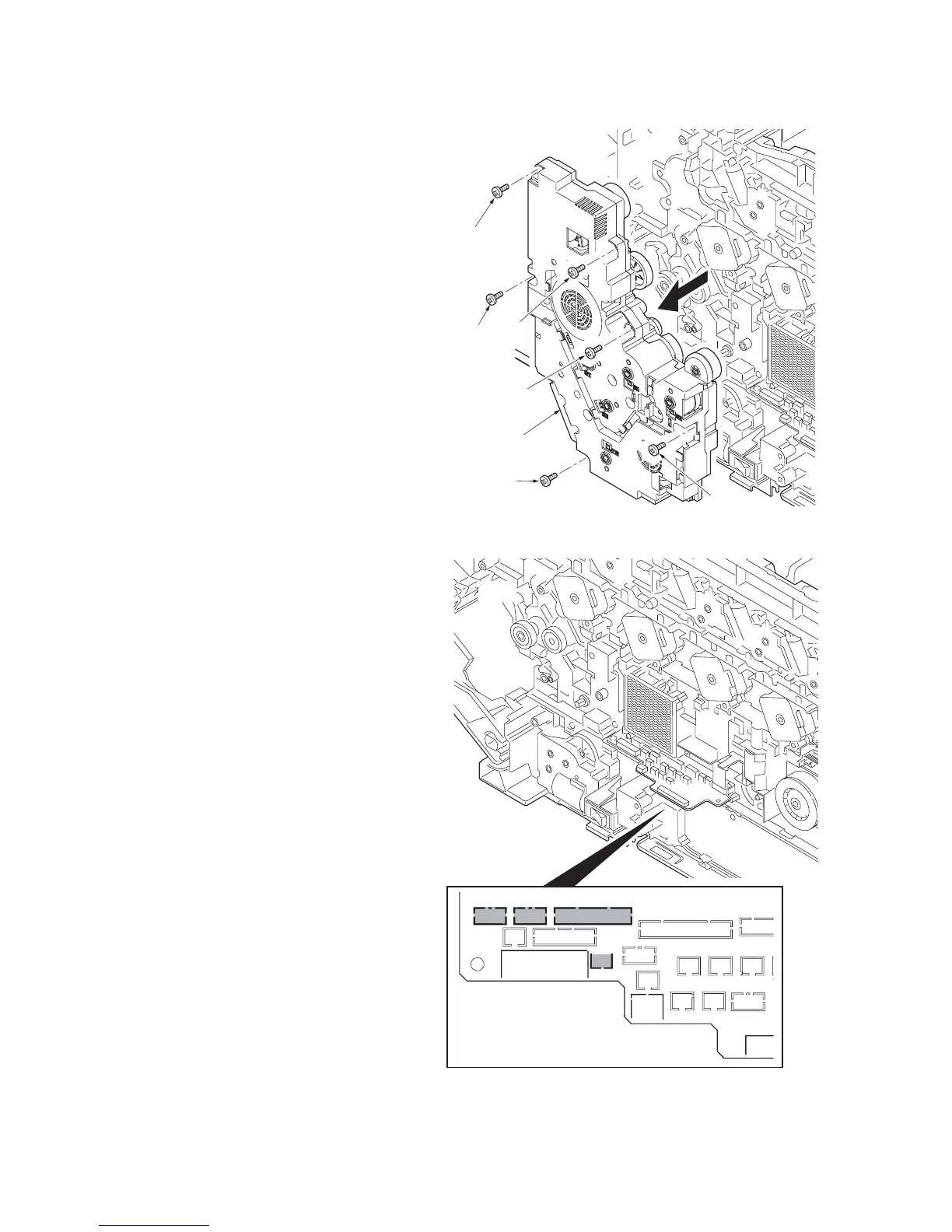

6. Remove the six screws and then remove the
feed drive unit.
Figure 1-5-25
7. Remove the four connectors.
Figure 1-5-26
Feed drive unit
Screw
Screw
Screw
Screw
Screw
Screw
YC4 YC39 YC26
YW
YC40
Y
Connectors
