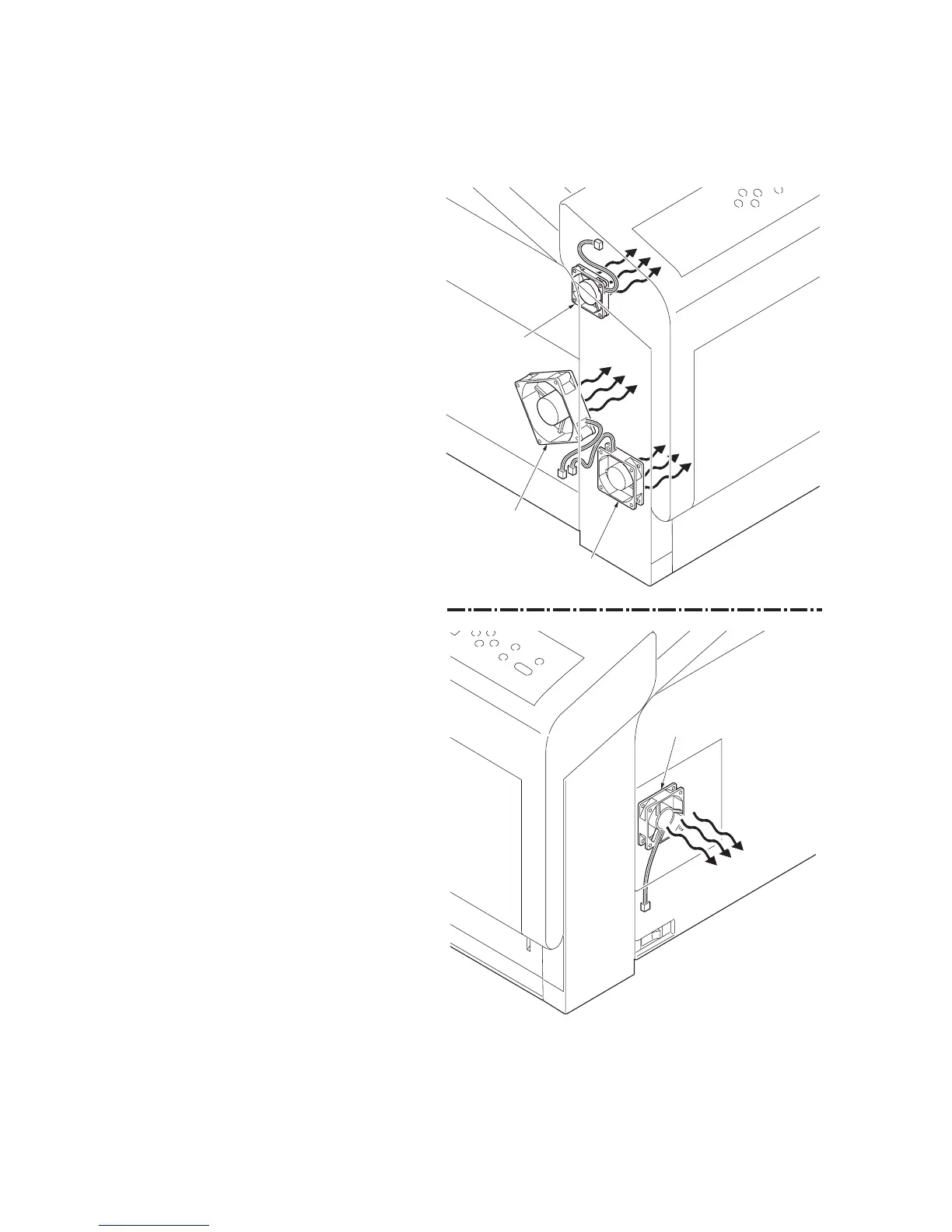

(3) Direction of installing the principal fan motors
When detaching or refitting the developing fan motor 1, developing fan motor 2, fuser fan motor 1 or ozone fan motor, be
careful of the airflow direction (intake or exhaust).
Figure 1-5-56
Developing
fan motor 1
(Rating label: Inside)
Fuser fan motor 1
(Rating label: Inside)
Intake
Exhaust
Intake
Intake
Developing
fan motor 2
(Rating label: Inside)
Ozone fan motor
(Rating label: Outside)
