(2) Main charger unit
The main charger unit consists of the main charger wire, the main charger grid, and the main charger shield, and charges
the drum for image forming. Also the main charger unit is equipped with a main charger cleaning motor to conduct clean-
ing automatically.

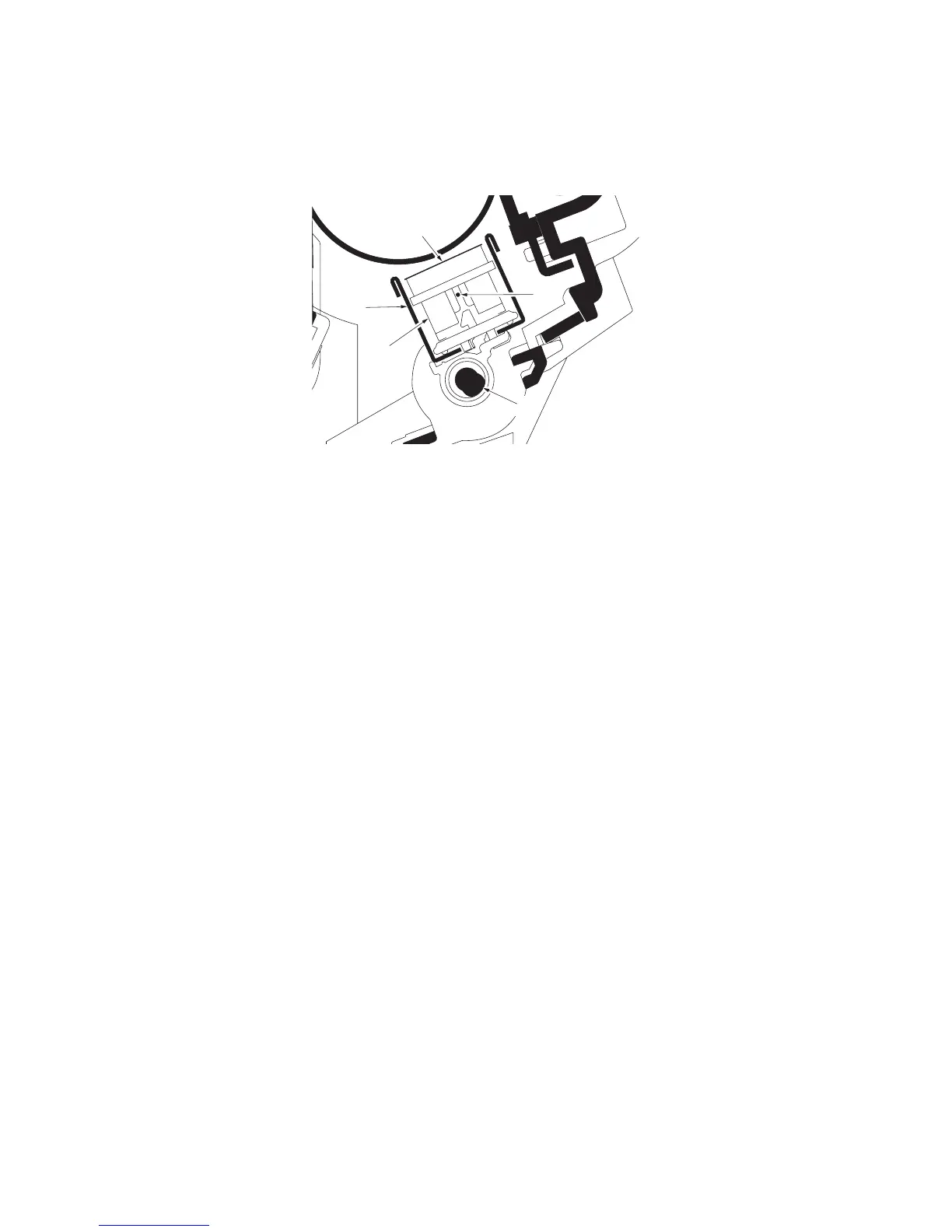

Figure 2-1-9 Main charger unit
1
4
3
5
2
(1) Main charger shield
(2) Main charger wire
(3) Main charger grid
(4) Main charger cleaner unit
(5) Main charger spiral
