2HL/2HM/2HN
1-5-6
(2) Detaching and refitting the right rear cover, right upper cover and right front cover
Procedure
1. Open the top cover.
2. Open the right cover.
3. Remove the two screws.
4. Release the five hooks and then remove the
right rear cover.

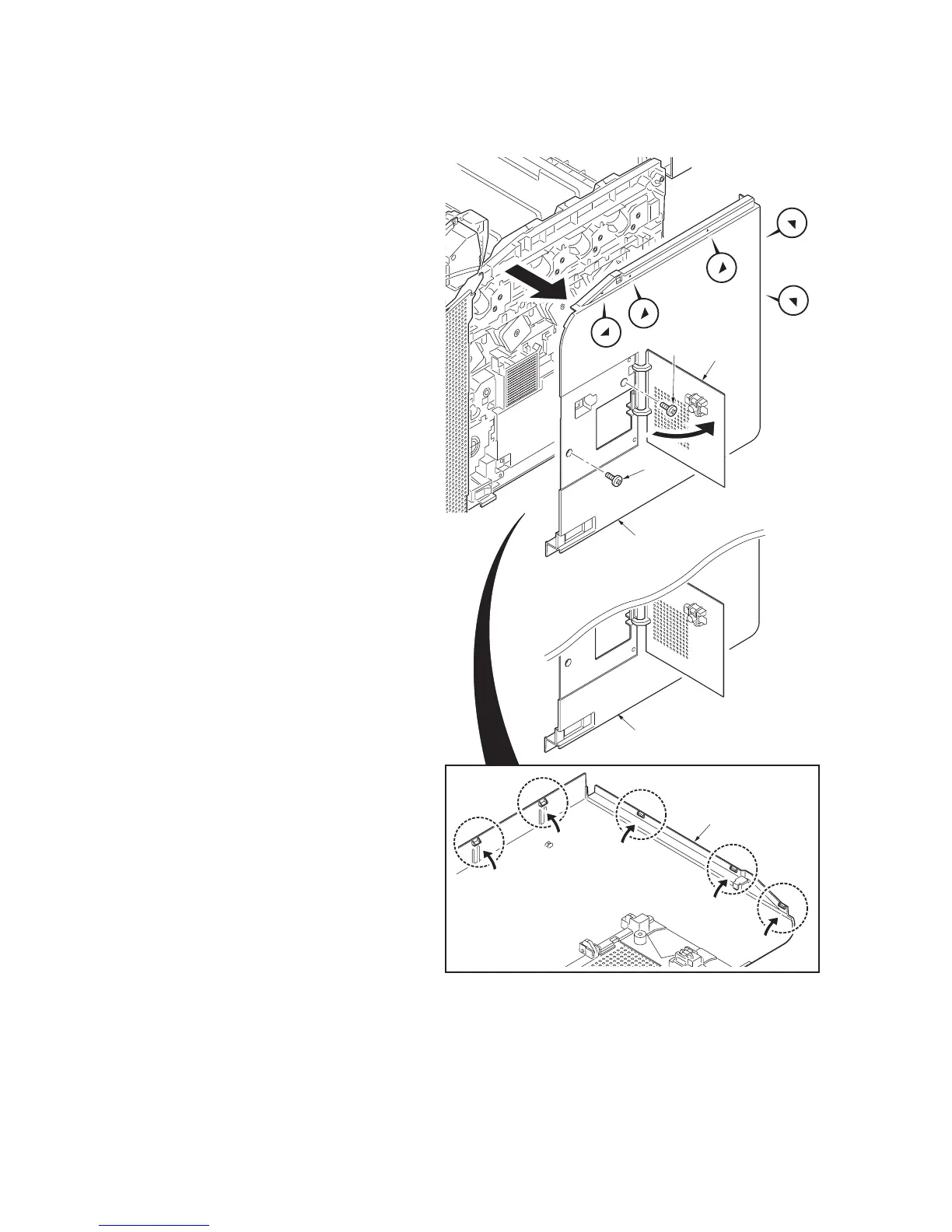

Figure 1-5-6
Screw
Screw
Right cover
Hooks
Hooks
Right rear cover
Right rear cover
Right rear cover
26/28 ppm (500-sheet) model
21/23 ppm (500-sheet) model
21/23 ppm (250-sheet) model
To Next Page
