2HL/2HM/2HN
1-5-13
1-5-4 Developing section
(1) Detaching and refitting the developing unit
Procedure
1. Remove the intermediate transfer unit (See
page 1-5-17).
2. Remove the drum unit (M,C,Y,K) (See page
1-5-15).
3. Pinch the lever of developing unit.
4. Remove the developing unit (M,C,Y,K).

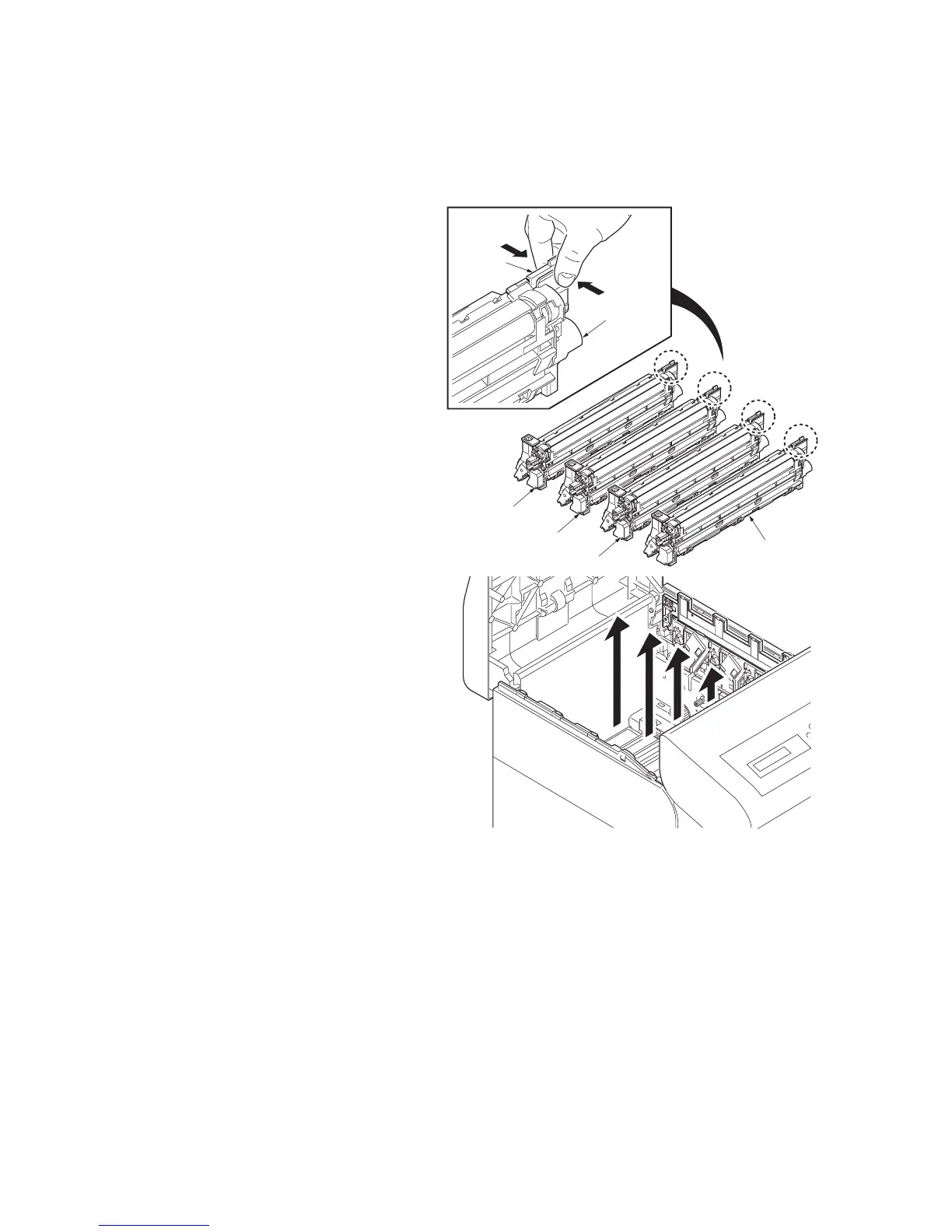

Figure 1-5-14
Lever
Developing unit K
Developing unit M
Developing unit Y
Developing unit C
Developing unit
To Next Page
