4/5

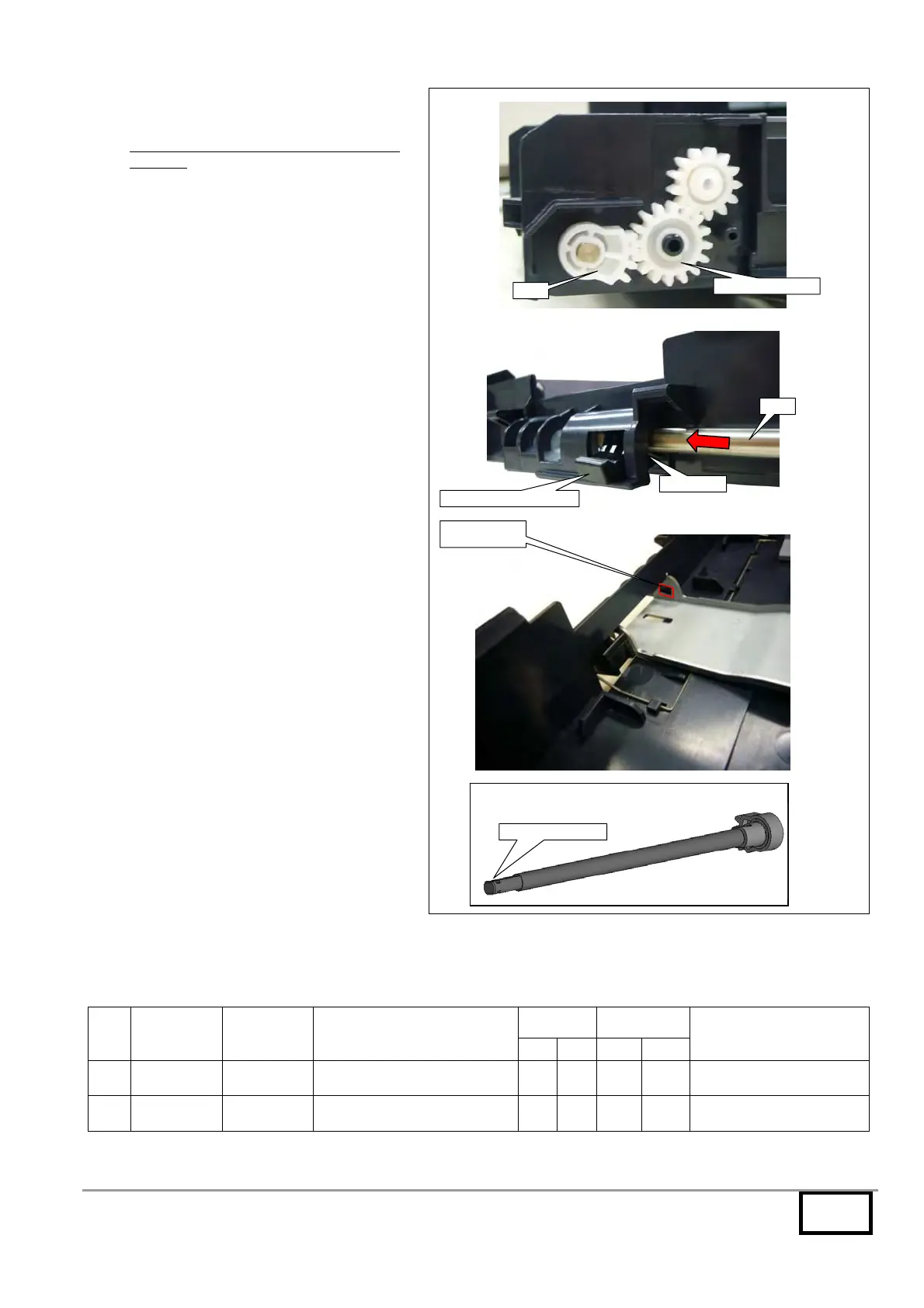

8.) Reinsert the shaft removed at Step 5 and fix
the new STOPPER HOOK ASSY.
Note the following 3 points when reinserting
the shaft.
1.) Confirm the gear attached to the shaft’s
right edge and the bottom plate drive gear
engage.
2.) Pass the shaft over the ground spring.
3.) Reinsert the shaft’s left end (oval shape)
into the plate’s square hole while aligning it
to its directions.
9.)
Reattach the other parts in the reverse procedure.
No.
Old Part
No.
New Part
No.
Description
Q’ty Compatibility
Remarks
Old New Old New
1 ------------ 2KT09111 STOPPER HOOK - 1 - X *1
2 ------------ 2KT09170 SPRING STOPPER HOOK - 1 - X Newly added
"+" mark at the beginning of the part name means it is a component parts.
*1: No.3 is available as service parts this time.
Shaft
Gear
Bottom plate drive gear
Shaft
Plate’s square hole
(It is sideward.)
New STOPPER HOOK ASSY
Ground spring
Left end (Oval shape)
To Next Page
